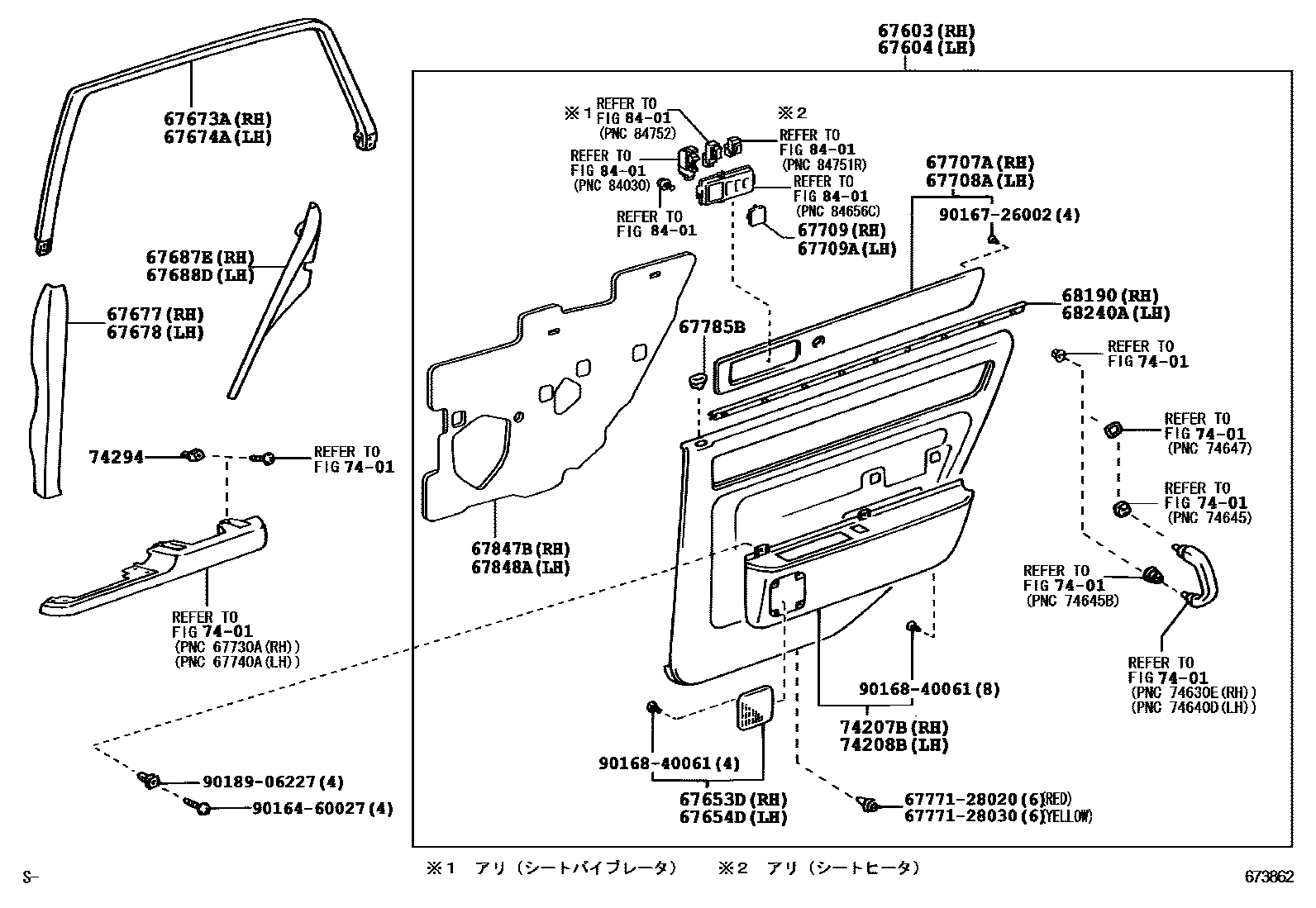

REAR DOOR PANEL & GLASS

0001 1 0002 1��(�-��) 0003 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-40350-B0iGZG50200206-200501

MD.GRAY,TRIM10

main67630-40350-E0iGZG50200206-200501

ORCHID,TRIM40

main67630-40350-J0iGZG50199704-200501

DK.BLUE GRAY,TRIM8#

main67630-40360-B0iGZG50199704-200501

main67630-40360-B1iGZG50200501-201011

MD.GRAY,TRIM1#

main67630-40360-E0iGZG50199704-200501

main67630-40360-E1iGZG50200501-201103

ORCHID,TRIM4#

main67630-40360-J0iGZG50199704-200501

main67630-40360-J1iGZG50200501-201103

DK.BLUE GRAY,TRIM8#

main67630-40361-B2iGZG50201012

MD.GRAY,TRIM1#

main67630-40361-E2iGZG50201103

ORCHID,TRIM4#

main67630-40361-J2iGZG50201103

DK.BLUE GRAY,TRIM8#

main67630-40390-B0iGZG50199704-200501

main67630-40390-B1iGZG50200501-201011

main67630-40390-E0iGZG50199704-200501

main67630-40390-E1iGZG50200501-201103

main67630-40391-B2iGZG50201012

main67630-40391-E2iGZG50201103

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-40430-B0iGZG50200206-200501

MD.GRAY,TRIM10

main67640-40430-E0iGZG50200206-200501

ORCHID,TRIM40

main67640-40430-J0iGZG50199704-200501

DK.BLUE GRAY,TRIM8#

main67640-40440-B0iGZG50199704-200501

main67640-40440-B1iGZG50200501-201011

MD.GRAY,TRIM1#

main67640-40440-E0iGZG50199704-200501

main67640-40440-E1iGZG50200501-201103

ORCHID,TRIM4#

main67640-40440-J0iGZG50199704-200501

main67640-40440-J1iGZG50200501-201103

DK.BLUE GRAY,TRIM8#

main67640-40441-B2iGZG50201012

MD.GRAY,TRIM1#

main67640-40441-E2iGZG50201103

ORCHID,TRIM4#

main67640-40441-J2iGZG50201103

DK.BLUE GRAY,TRIM8#

main67640-40470-B0iGZG50199704-200501

main67640-40470-B1iGZG50200501-201011

main67640-40470-E0iGZG50199704-200501

main67640-40470-E1iGZG50200501-201103

main67640-40471-B2iGZG50201012

main67640-40471-E2iGZG50201103

main67640-40570-B0iGZG50200206-200501

main67640-40570-E0iGZG50200206-200501

main67640-40570-J0iGZG50200206-200501

67653DGRILLE SUB-ASSY, REAR DOOR SPEAKER, RH

main67651-40030-B0iGZG50199704-200501

DK.BLUE GRAY,TRIM8#

main67651-40030-B1iGZG50200501-201701

MEDIUM GRAY,TRIM1#

main67651-40030-E0iGZG50199704-200501

ORCHID,TRIM4#

67654DGRILLE SUB-ASSY, REAR DOOR SPEAKER, LH

main67651-40030-B0iGZG50199704-200501

DK.BLUE GRAY,TRIM8#

main67651-40030-B1iGZG50199704-200501

MEDIUM GRAY,TRIM1#

main67651-40030-E0iGZG50199704-200501

ORCHID,TRIM4#

67673AGARNISH, REAR DOOR FRAME, RH

main67673-40010-B2iGZG50200501-201701

DK. BLUE GRAY,TRIM8#

main67673-40010-B3iGZG50199704-200501

MD.GRAY,TRIM1#

main67673-40010-E1iGZG50200501-201701

ORCHID,TRIM4#

67674AGARNISH, REAR DOOR FRAME, LH

main67674-40010-B2iGZG50199704-200501

DK. BLUE GRAY,TRIM8#

main67674-40010-B3iGZG50200501-201701

MEDIUM GRAY,TRIM1#

main67674-40010-E1iGZG50200501-201701

ORCHID,TRIM4#

67677COVER, SIDE TRIM BOARD, REAR RH

main67677-40010-B2iGZG50199704-200501

DK. BLUE GRAY,TRIM8#

main67677-40010-B3iGZG50199704-200501

MD.GRAY,TRIM1#

main67677-40010-E1iGZG50200501-201701

ORCHID,TRIM4#

67678COVER, SIDE TRIM BOARD, REAR LH

main67678-40010-B2iGZG50200501-201701

DK. BLUE GRAY,TRIM8#

main67678-40010-B3iGZG50199704-200501

MD.GRAY,TRIM1#

main67678-40010-E1iGZG50200501-201701

ORCHID,TRIM4#

67687ECOVER, SIDE TRIM BOARD, REAR RH

main67687-40010-B2iGZG50200501-201701

DK. BLUE GRAY,TRIM8#

main67687-40010-B3iGZG50200501-201701

MEDIUM GRAY,TRIM1#

main67687-40010-E1iGZG50199704-200501

ORCHID,TRIM4#

67688DCOVER, SIDE TRIM BOARD, REAR LH

main67688-40010-B2iGZG50200501-201701

DK. BLUE GRAY,TRIM8#

main67688-40010-B3iGZG50200501-201701

MEDIUM GRAY,TRIM1#

main67688-40010-E1iGZG50200501-201701

ORCHID,TRIM4#

67707AORNAMENT SUB-ASSY, REAR DOOR TRIM, RH

main67707-40020iGZG50200501

main67707-40040iGZG50199704-200501

67708AORNAMENT SUB-ASSY, REAR DOOR TRIM, LH

main67708-40020iGZG50199704-200501

main67708-40040iGZG50199704-200501

67709GRILLE SUB-ASSY, DOOR SPEAKER, RH

main67609-40020-C0iGZG50199704-200501

BLACK,TRIM1#,4#,8#

67709AGRILLE SUB-ASSY, DOOR SPEAKER, LH

main67609-40020-C0iGZG50199704-200501

BLACK,TRIM1#,4#,8#

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-40020×2iGZG50199704-200501

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-40010iGZG50199802-200501

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-40010iGZG50199802-200501

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-40020iGZG50199704-200501

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-40010iGZG50199704-200501

7401

74207BPANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH

main74207-40050-B0iGZG50200501-201701

MD.GRAY,TRIM1#

sub67620-40200

main74207-40050-B1iGZG50199704-200501

DK.BLUE GRAY,TRIM8#

sub67620-40200

main74207-40050-E0iGZG50199704-200501

ORCHID,TRIM4#

sub67620-40200

main74207-40060-B0iGZG50199704-200501

main74207-40060-E0iGZG50200501-201701

74208BPANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH

main74208-40050-B0iGZG50199704-200501

MD.GRAY,TRIM1#

sub67620-40200

main74208-40050-B1iGZG50200501

DK.BLUE GRAY,TRIM8#

sub67620-40200

main74208-40050-E0iGZG50199704-200501

ORCHID,TRIM4#

sub67620-40200

main74208-40060-B0iGZG50199704-200501

main74208-40060-E0iGZG50200501-201701

74294PLATE, REAR DOOR ARMREST, NO.2

main74294-32010×4iGZG50199704-200501

8401

6777128020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28020

6777128030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28030

9016460027

main90164-60027

9016726002

main90167-26002

9016840061

main90168-40061

9018906227

main90189-06227

30 parts on this diagram · 3 diagrams in section
