PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

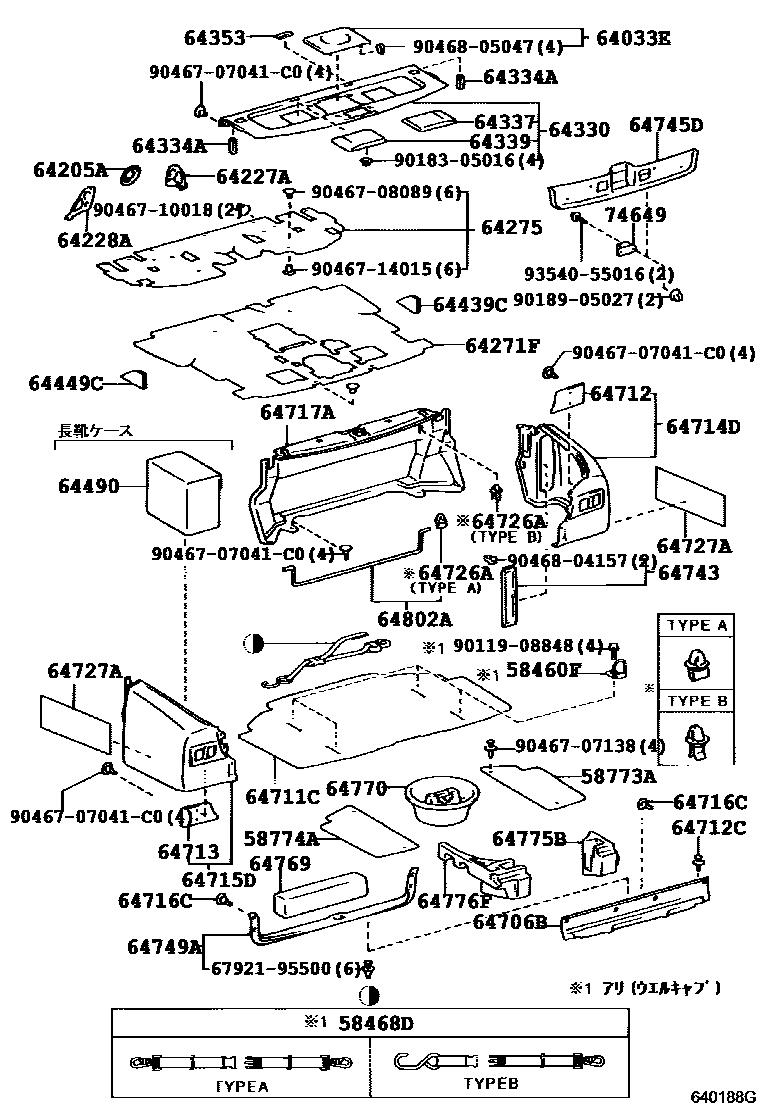

Parts diagram
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33010i200206-200501
58468DBUCKLE, WHEEL CHAIR BELT
main58468-40010i200206-200501
main58468-40020i200206-200501
58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH
main58773-40010i199704-200501
main58773-40040i200301-200501
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
main58774-40020i199704-200501
64033EGRILLE SUB-ASSY, REAR SPEAKER
main64033-40010-B0i199704-201701
main64033-40010-B1i199704-201701
main64033-40010-E0i199704-201701
main64033-40040-B0i200501-201701
DK.BLUE GRAY,TRIM8#
main64033-40040-B1i200501-201701
MEDIUM GRAY,TRIM1#
main64033-40040-E0i200501-201701
ORCHID,TRIM4#
main64033-50070-B1i199704-200501
DK.BLUE GRAY,TRIM8#
sub64033-50080
sub64033-40040
main64033-50070-B2i199704-200501
MEDIUM GRAY,TRIM1#
sub64033-50080
sub64033-40040
main64033-50070-E1i199704-200501
ORCHID,TRIM4#
sub64033-50080
sub64033-40040
64205ACOVER SUB-ASSY, ROOM PARTITION
main64275-50010i199704-200501
64227AEXTENSION, CENTER FLOOR TO BLACE, NO.1
main64227-40010i199704-199810
sub64227-40011
main64227-40011i199810-200501
64228AEXTENSION, CENTER FLOOR TO BRACE, NO.2
main64228-40010i199704-199810
sub64228-40011
main64228-40011i199810-200501
64271FTRIM, ROOM PARTITION
main64271-40020i199704-200501
main64271-40050i200501-201008
main64271-40100i201008
64275PAD, ROOM PARTITION TRIM, NO.2
main64274-40020i199704-200501
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-40060-B0i199704-200412
MD.GRAY,TRIM1#
sub64330-40100
main64330-40060-B1i199704-200412
DK.BLUE GRAY,TRIM8#
sub64330-40100
main64330-40060-E0i199704-200412
ORCHID,TRIM4#
sub64330-40100
main64330-40090-B0i200501-201008
MD.GRAY,TRIM1#
main64330-40090-B1i200501-201008
DK.BLUE GRAY,TRIM8#
main64330-40090-E0i200501-201008
ORCHID,TRIM4#
main64330-40130-B2i201008-201701
MD.GRAY,TRIM1#
main64330-40130-B3i201008-201701
DK.BLUE GRAY,TRIM8#
main64330-40130-E1i201008-201701
ORCHID,TRIM4#
64334APAD, PACKAGE TRAY TRIM
main64334-40010i199704-200501
main64334-40020i200501
64337GARNISH, PACKAGE TRAY TRIM, RH
main64337-30150-B1i199704-201701
DK.BLUE GRAY,TRIM8#
main64337-30150-B2i199704-201701
MD.GRAY,TRIM1#
main64337-30150-E1i199704-201701
ORCHID,TRIM4#
64339GARNISH, PACKAGE TRAY TRIM, LH
main64339-30080-B1i199704-201701
DK.BLUE GRAY,TRIM8#
main64339-30080-B2i199704-201701
MD.GRAY,TRIM1#
main64339-30080-E1i199704-201701
ORCHID,TRIM4#
64353COVER, PACKAGE TRAY TRIM BELT HOLE
main64353-22030-B0i199704-201008
DK.BLUE GRAY,TRIM8#
sub64353-22030
main64353-22030-B1i199704-201008
MD.GRAY,TRIM1#
sub64353-22030
main64353-22030-E1i199704-201008
ORCHID,TRIM4#
sub64353-22030
64439CCOVER, LUGGAGE ROOM BOX SIDE, RH
main64439-40010i199704-200501
64449CCOVER, LUGGAGE ROOM BOX SIDE, LH
main64449-40010i199704-200501
64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE
main64490-40010-C0i199704-201701
BLACK,TRIM1#,4#,8#
64706BCOVER SUB-ASSY, LUGGAGE COMPARTMENT TRIM, REAR
main64716-40030-C0i199704-201701
BLACK,TRIM1#,4#,8#
64711CCARPET, LUGGAGE COMPARTMENT FLOOR
main64711-40040-C0i199704-201701
BLACK,TRIM1#,4#,8#
main64711-40060-C0i200206-200501
main64711-40070i200301-200501
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
main64712-40030-C0i199704-201701
BLACK,TRIM1#,4#,8#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-07138i199704-200501
main90467-07138-C0i200501-201701
BLACK
sub90467-07138
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
main64713-40020-C0i199704-201701
BLACK,TRIM1#,4#,8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
main64710-40030-C0i200301-200501
main64714-40010-C0i199704-199802
BLACK,TRIM1#,4#,8#
main64714-40011-C0i199802-201701
BLACK,TRIM1#,4#,8#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
main64715-40010-C0i199704-199802
BLACK,TRIM1#,4#,8#
main64715-40011-C0i199802-201701
BLACK,TRIM1#,4#,8#
main64720-40010-C0i200301-200501
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-07041-C0i199704-201701
BLACK,TRIM1#,4#,8#
sub90467-07041
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-40010-C0i199704-201701
BLACK,TRIM1#,4#,8#
main64717-40050i200301-200501
64726ACLIP, LUGGAGE TRIM, REAR
main64726-40030i199704-200501
main64726-40040i199704-200501
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
main64727-40010i200301-200501
main64727-40010i199802-200501
main64727-40020i200301-200501
64743COVER, SIDE TRIM TOOL BAG
main64743-50010-C0i199704-201701
BLACK,TRIM1#,4#,8#
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
main64745-40010-C0i199704-200501
BLACK,TRIM1#,4#,8#
sub64745-40040
main64745-40040-C0i200501-201701
BLACK,TRIM1#,4#,8#
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
main64749-40010-C0i199704-201701
BLACK,TRIM1#,4#,8#
64769CASE SUB-ASSY, TOOL BAG
main64769-40020-C0i199704-201701
BLACK,TRIM1#,4#,8#
64770COVER ASSY, SPARE WHEEL
main64771-24020i199704-200501
64775BGUARD, SPARE WHEEL
main64775-40020i199704-200501
main64775-40030i200301-200501
main64775-40040i200301-200501
64776FGUARD, SPARE WHEEL, NO.2
main64776-40020i199704-200501
main64776-40030i200301-200501
64802AFRAME SUB-ASSY, BACK WINDOW
main64802-40020i199704-200501
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
main74649-30010i199704-200501
main74649-30010-C0i200501-201701
BLACK
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9011908848
main90119-08848
9018305016
main90183-05016
9018905027
main90189-05027
9046707041C0
main90467-07041C0
9046707138
main90467-07138
9046708089
main90467-08089
9046710018
main90467-10018
9046714015
main90467-14015
9046804157
main90468-04157
9046805047
main90468-05047
9354055016
main93540-55016

50 parts on this diagram · 4 diagrams in section
