INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

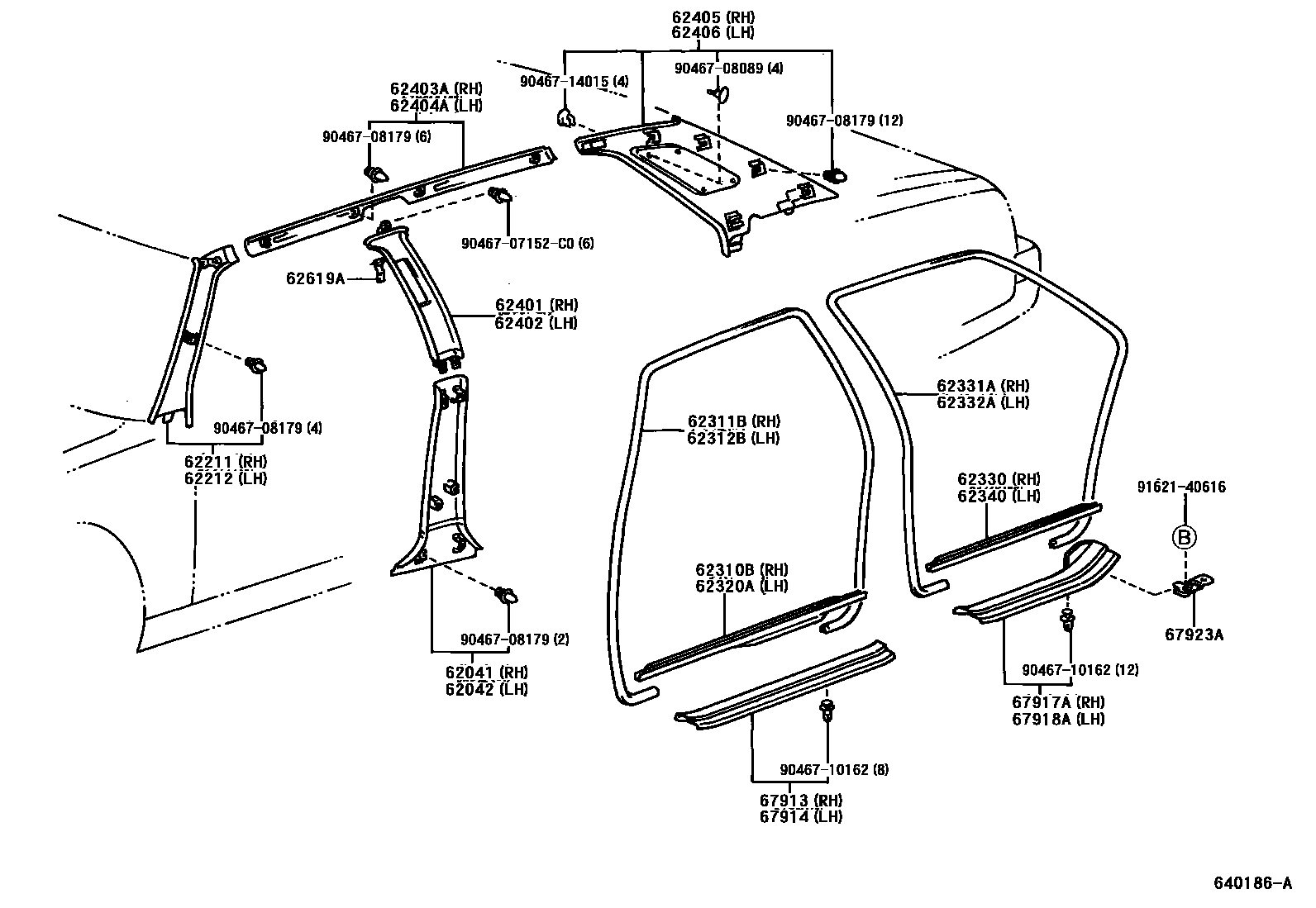

Parts diagram
62041PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER RH
main62041-40090-B0i200501-201011
MD.GRAY,TRIM1#
main62041-40090-B1i199704-200501
DK.BLUE GRAY,TRIM8#
main62041-40090-E0i199704-200501
ORCHID,TRIM4#
main62041-40091-B2i201012
MD.GRAY,TRIM1#
main62041-40091-B3i201103
DK.BLUE GRAY,TRIM8#
main62041-40091-E1i201103
ORCHID,TRIM4#
main62041-40100-B0i199704-200501
main62041-40100-E0i199704-200501
main62041-40101-B1i201012
main62041-40101-E1i201103
62042PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER LH
main62042-40090-B0i199704-200501
MD.GRAY,TRIM1#
main62042-40090-B1i199704-200501
DK.BLUE GRAY,TRIM8#
main62042-40090-E0i200501-201102
ORCHID,TRIM4#
main62042-40091-B2i201012
MD.GRAY,TRIM1#
main62042-40091-B3i201103
DK.BLUE GRAY,TRIM8#
main62042-40091-E1i201103
ORCHID,TRIM4#
main62042-40100-B0i200501-201011
main62042-40100-E0i200501-201102
main62042-40101-B1i201012
main62042-40101-E1i201103
62211GARNISH, FRONT PILLAR, RH
main62210-40040-B0i199704-200501
LT. GRAY,TRIM1#
main62210-40040-B1i199704-200501
BLUE GRAY,TRIM8#
main62210-40040-E0i199704-200501
ORCHID,TRIM4#
main62210-40070-B0i200501-201701
LT. GRAY,TRIM1#
main62210-40070-B1i200501-201701
BLUE GRAY,TRIM8#
main62210-40070-E0i200501-201701
ORCHID,TRIM4#
62212GARNISH, FRONT PILLAR, LH
main62220-40040-B0i199704-200501
LT. GRAY,TRIM1#
main62220-40040-B1i199704-200501
BLUE GRAY,TRIM8#
main62220-40040-E0i199704-200501
ORCHID,TRIM4#
main62220-40070-B0i200501-201701
LT. GRAY,TRIM1#
main62220-40070-B1i200501-201701
BLUE GRAY,TRIM8#
main62220-40070-E0i200501-201701
ORCHID,TRIM4#
62310BWEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, RH
main62310-40010i199704-200501
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-40020-B0i200501-201701
MD.GRAY,TRIM1#
main62311-40020-B1i199704-200501
DK.BLUE GRAY,TRIM8#
main62311-40020-E0i199704-200501
ORCHID,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-40020-B0i199704-200501
MD.GRAY,TRIM1#
main62312-40020-B1i199704-200501
DK.BLUE GRAY,TRIM8#
main62312-40020-E0i199704-200501
ORCHID,TRIM4#
62320AWEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, LH
main62320-40010i199704-200501
62330WEATHERSTRIP ASSY, REAR DOOR OPENING TRIM, RH
main62330-40010i199704-200501
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-40020-B0i199704-200501
MD.GRAY,TRIM1#
main62331-40020-B1i199704-200501
DK.BLUE GRAY,TRIM8#
main62331-40020-E0i200501-201701
ORCHID,TRIM4#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-40020-B0i199704-200501
MD.GRAY,TRIM1#
main62332-40020-B1i200501-201701
DK.BLUE GRAY,TRIM8#
main62332-40020-E0i200501-201701
ORCHID,TRIM4#
62340WEATHERSTRIP ASSY, REAR DOOR OPENING TRIM, LH
main62340-40010i200501-201701
62401PANEL SUB-ASSY, CENTER PILLAR GARNISH, UPPER RH
main62401-40010-B0i199704-200501
LT. GRAY,TRIM1#
main62401-40010-B1i199704-200501
BLUE GRAY,TRIM8#
main62401-40010-E0i199704-200501
ORCHID,TRIM4#
main62401-40070-B0i200501-201701
LT. GRAY,TRIM1#
main62401-40070-B1i200501-201701
BLUE GRAY,TRIM8#
main62401-40070-E0i200501-201701
ORCHID,TRIM4#
62402PANEL SUB-ASSY, CENTER PILLAR GARNISH, UPPER LH
main62402-40010-B0i199704-200501
LT. GRAY,TRIM1#
main62402-40010-B1i199704-200501
BLUE GRAY,TRIM8#
main62402-40010-E0i199704-200501
ORCHID,TRIM4#
main62402-40060-B0i200206-200501
main62402-40060-B1i200206-200501
main62402-40060-E0i200206-200501
main62402-40070-B0i200501-201701
LT. GRAY,TRIM1#
main62402-40070-B1i200501-201701
BLUE GRAY,TRIM8#
main62402-40070-E0i200501-201701
ORCHID,TRIM4#
62403AGARNISH SUB-ASSY, ROOF SIDE RAIL, RH
main62403-40020-B0i199704-200501
LT. GRAY,TRIM1#
main62403-40020-B1i199704-200501
BLUE GRAY,TRIM8#
main62403-40020-E0i199704-200501
ORCHID,TRIM4#
62404AGARNISH SUB-ASSY, ROOF SIDE RAIL, LH
main62404-40020-B0i199704-200501
LT. GRAY,TRIM1#
main62404-40020-B1i199704-200501
BLUE GRAY,TRIM8#
main62404-40020-E0i199704-200501
ORCHID,TRIM4#
62405GARNISH SUB-ASSY, ROOF SIDE, INNER RH
main62470-40060-B0i199704-200501
LT. GRAY,TRIM1#
main62470-40060-B1i199704-200501
BLUE GRAY,TRIM8#
main62470-40060-E0i199704-200501
ORCHID,TRIM4#
main62470-40110-B0i200501-201701
LT. GRAY,TRIM1#
main62470-40110-B1i200501-201701
BLUE GRAY,TRIM8#
main62470-40110-E0i200501-201701
ORCHID,TRIM4#
62406GARNISH SUB-ASSY, ROOF SIDE, INNER LH
main62480-40080-B0i199704-200501
LT. GRAY,TRIM1#
main62480-40080-B1i199704-200501
BLUE GRAY,TRIM8#
main62480-40080-E0i199704-200501
ORCHID,TRIM4#
main62480-40130-B0i200501-201701
LT. GRAY,TRIM1#
main62480-40130-B1i200501-201701
BLUE GRAY,TRIM8#
main62480-40130-E0i200501-201701
ORCHID,TRIM4#
62619APLATE, SIDE TRIM SET
main62619-40010×4i199704-200501
67913PLATE, FRONT DOOR SCUFF, RH
main67910-40010-B0i200501-201412
MD.GRAY,TRIM1#
sub67910-40H02
sub67910-40H03
main67910-40010-B1i199704-200501
DK.BLUE GRAY,TRIM8#
sub67910-40H02
sub67910-40H03
main67910-40010-E0i200501-201412
ORCHID,TRIM4#
sub67910-40H02
sub67910-40H03
main67910-40011-B0i201412-201701
MD.GRAY,TRIM1#
main67910-40011-B1i201412-201701
DK.BLUE GRAY,TRIM8#
main67910-40011-E0i201412-201701
ORCHID,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67920-40010-B0i199704-200501
MD.GRAY,TRIM1#
sub67910-40H02
sub67910-40H03
main67920-40010-B1i200501-201412
DK.BLUE GRAY,TRIM8#
sub67910-40H02
sub67910-40H03
main67920-40010-E0i199704-200501
ORCHID,TRIM4#
sub67910-40H02
sub67910-40H03
main67920-40011-B0i201412-201701
MD.GRAY,TRIM1#
main67920-40011-B1i201412-201701
DK.BLUE GRAY,TRIM8#
main67920-40011-E0i201412-201701
ORCHID,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
main67930-40010-B0i199704-200501
MD.GRAY,TRIM1#
sub67910-40H03
main67930-40010-B1i200501-201411
DK.BLUE GRAY,TRIM8#
sub67910-40H03
main67930-40010-E0i199704-200501
ORCHID,TRIM4#
sub67910-40H03
main67930-40011-B0i201412-201701
MD.GRAY,TRIM1#
main67930-40011-B1i201412-201701
DK.BLUE GRAY,TRIM8#
main67930-40011-E0i201412-201701
ORCHID,TRIM4#
main67930-40020-B0i199704-199707
main67930-40020-E0i199704-199707
main67930-40021-B0i200501-201412
sub67910-40H02
main67930-40021-E0i200501-201412
sub67910-40H02
main67930-40022-B0i201412-201701
main67930-40022-E0i201412-201701
67918APLATE, REAR DOOR SCUFF, LH
main67940-40010-B0i199704-200501
MD.GRAY,TRIM1#
sub67910-40H03
main67940-40010-B1i199704-200501
DK.BLUE GRAY,TRIM8#
sub67910-40H03
main67940-40010-E0i200501-201411
ORCHID,TRIM4#
sub67910-40H03
main67940-40011-B0i201412-201701
MD.GRAY,TRIM1#
main67940-40011-B1i201412-201701
DK.BLUE GRAY,TRIM8#
main67940-40011-E0i201412-201701
ORCHID,TRIM4#
main67940-40020-B0i199704-199707
main67940-40020-E0i199704-199707
main67940-40021-B0i200501-201412
sub67910-40H02
main67940-40021-E0i199707-200501
sub67910-40H02
main67940-40022-B0i201412-201701
main67940-40022-E0i201412-201701
main67940-40040-B0i200206-200501
main67940-40040-B1i200206-200501
main67940-40040-E0i200206-200501
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-40010×2i200501
9046707152C0
main90467-07152C0
9046708089
main90467-08089
9046708179
main90467-08179
9046710162
main90467-10162
9046714015
main90467-14015
9162140616
main91621-40616

30 parts on this diagram · 2 diagrams in section
