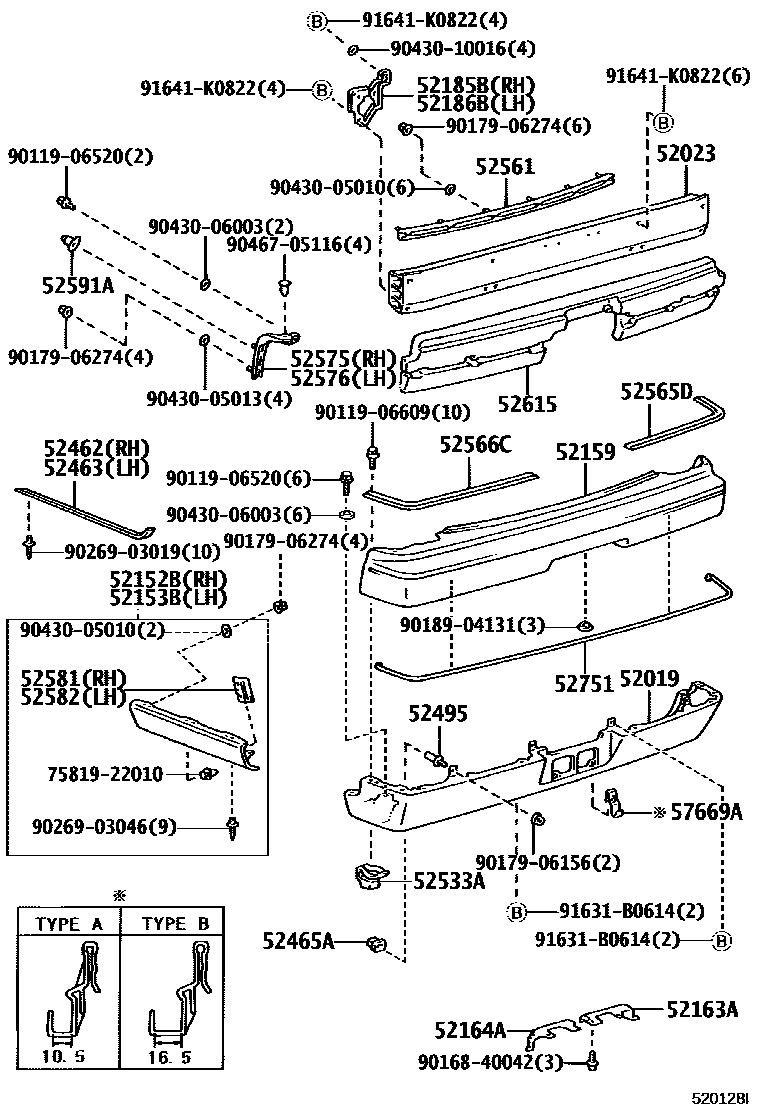

REAR BUMPER & BUMPER STAY

52019BAR SUB-ASSY, REAR BUMPER

main52019-40901iGZG50200501-201401

main52019-40905iGZG50201401

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-40010iGZG50199704-200501

52152BEXTENSION, REAR BUMPER, RH

main52106-40010iGZG50199704-200501

52153BEXTENSION, REAR BUMPER, LH

main52107-40010iGZG50199704-200501

52159COVER, REAR BUMPER

main52159-40010-B0iGZG50199704-200501

GRAY ME.MS.,1B6

sub52159-40901

main52159-40010-B1iGZG50200501-201701

SILVER ME.,1C0

sub52159-40901

main52159-40010-C0iGZG50199704-200501

BLACK,202

sub52159-40901

main52159-40010-G0iGZG50199704-200501

DK.GREEN MC.P.I.O.,6N9

sub52159-40901

main52159-40010-J0iGZG50199704-200501

BLUE MC.,8J9

sub52159-40901

main52159-40010-J1iGZG50200501-201701

LT.GRAYISH BLUE M.M.MS.,8M3

sub52159-40901

52163APLATE, REAR BUMPER, RH

main52163-40010iGZG50200501

52164APLATE, REAR BUMPER, LH

main52164-40010iGZG50199704-200501

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-40010iGZG50199704-200501

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-40010iGZG50199704-200501

52462PAD, REAR BUMPER, RH

main52462-40010iGZG50199704-200501

52463PAD, REAR BUMPER, LH

main52463-40010iGZG50199704-200501

52465AINSERT, REAR BUMPER PAD

main52465-40010×2iGZG50200501

52495BOLT, REAR BUMPER PAD, NO.1

main52495-40010×2iGZG50199704-200501

52533ABRACKET, REAR BUMPER RETAINER, NO.1

main52533-40010×10iGZG50199704-200501

main52533-40020×10iGZG50201012

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-40010iGZG50199704-200501

52565DRETAINER, REAR BUMPER, LOWER RH

main52565-40010iGZG50199704-200501

52566CRETAINER, REAR BUMPER, LOWER LH

main52566-40010iGZG50199704-200501

52575RETAINER, REAR BUMPER SIDE, RH

main52575-40010iGZG50199704-200501

52576RETAINER, REAR BUMPER SIDE, LH

main52576-40010iGZG50199704-200501

52581PROTECTOR, REAR BUMPER, RH

main52581-40010iGZG50199704-200501

52582PROTECTOR, REAR BUMPER, LH

main52581-40010iGZG50200501

52591ASEAL, REAR BUMPER

main52591-40010×2iGZG50199704-200501

52615ABSORBER, REAR BUMPER ENERGY

main52615-40010iGZG50199704-200501

52751MOULDING, REAR BUMPER

main52751-40010iGZG50200501-200712

main52751-40011iGZG50200801

57669ABRACKET, REAR LICENSE PLATE SUPPORT

main57669-40010×2iGZG50199704-200501

main57669-40020×2iGZG50199704-200501

main57669-40040×2iGZG50200801

7581922010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-22010

9011906520

main90119-06520

9011906609

main90119-06609

9016840042

main90168-40042

9017906156

main90179-06156

9017906274

main90179-06274

9018904131

main90189-04131

9026903019

main90269-03019

9026903046

main90269-03046

9043005010

main90430-05010

9043005013

main90430-05013

9043006003

main90430-06003

9043010016

main90430-10016

9046705116

main90467-05116

91631B0614

main91631-B0614

91641K0822

main91641-K0822

41 parts on this diagram · 1 diagram in section
