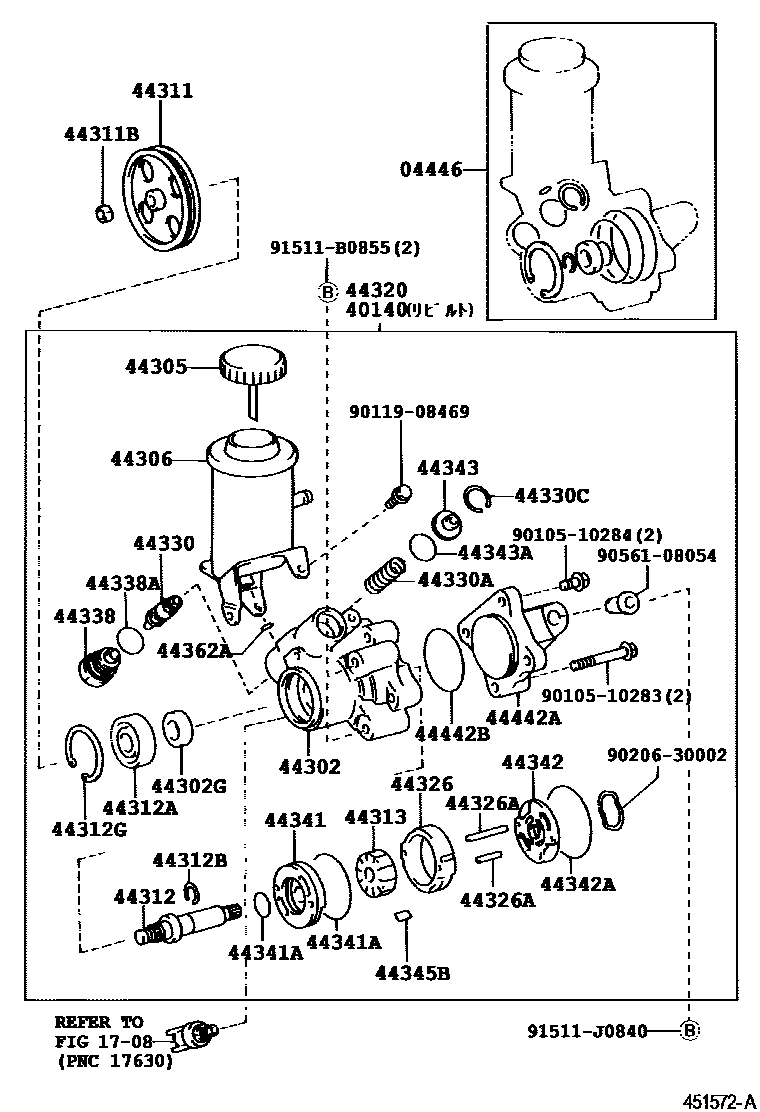

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-24011iGZG50199704-200101

main04446-24012iGZG50200101-200501

main04446-32050iGZG50200501-200510

main04446-40020iGZG50200510

1708

40140PUMP ASSY,VANE REBUILT

main40130-40110iGZG50200501

main40140-40070iGZG50199704-200501

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-40020iGZG50199704-200501

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17004iGZG50199704-200412

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-50010iGZG50199704-200501

main44305-50020iGZG50200803

44306RESERVOIR SUB-ASSY, VANE PUMP OIL

main44306-40050iGZG50199704-200501

main44306-40060iGZG50200501

44311PULLEY, VANE PUMP

main44311-40050iGZG50199704-200501

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iGZG50199805-200501

main90179-12022iGZG50199704-199805

44312SHAFT, VANE PUMP

main44312-50010iGZG50199704-200501

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17017iGZG50199704-200501

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15005iGZG50199704-200501

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90521-51003iGZG50199704-200501

44313ROTOR, VANE PUMP

main44313-40020iGZG50199704-200501

main44313-40030iGZG50199704-200501

main44313-40040iGZG50199704-200501

main44313-40050iGZG50199704-200501

main44313-40060iGZG50199704-200501

44320PUMP ASSY, VANE

main44310-40110iGZG50200501

main44320-40070iGZG50199704-200501

44326RING, CAM(FOR VANE PUMP)

main44325-35010iGZG50199704-199709

main44325-35020iGZG50199704-199709

main44325-35030iGZG50199704-199709

main44325-35040iGZG50199704-199709

main44325-35050iGZG50199704-199709

main44325-50010iGZG50199709-200501

main44325-50020iGZG50199709-200501

main44325-50030iGZG50199709-200501

main44325-50040iGZG50199709-200501

main44325-50050iGZG50199709-200501

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iGZG50199704-200501

main90250-04080iGZG50199704-200501

44330VALVE ASSY, FLOW CONTROL

main44330-40070iGZG50199704-200501

main44330-40080iGZG50199704-200501

main44330-40090iGZG50199704-200501

main44330-40100iGZG50199704-200501

main44330-40110iGZG50199704-200501

main44330-40120iGZG50199704-200501

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iGZG50199704-200501

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-02200iGZG50199704-200501

44338UNION, PRESSURE PORT

main44338-24080iGZG50199704-200501

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19013iGZG50199704-200101

main90301-19018iGZG50200101-200501

44341PLATE, VANE PUMP SIDE, FRONT

main44341-30050iGZG50199704-200501

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-28005iGZG50199704-200501

main90301-53004iGZG50199704-200501

44342PLATE, VANE PUMP SIDE, REAR

main44342-20010iGZG50199704-200501

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53004iGZG50199704-200501

44343SEAT, FLOW CONTROL SPRING

main44343-50010iGZG50199704-200501

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main90301-18006iGZG50199704-200101

main90301-18013iGZG50200101-200501

44345BPLATE, VANE PUMP

main44345-12010×10iGZG50199704-200501

main44345-12020×10iGZG50199704-200501

main44345-12030×10iGZG50199704-200501

main44345-12040×10iGZG50199704-200501

main44345-12050×10iGZG50199704-200501

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-11016iGZG50199704-200501

main90301-11020iGZG50200501

44442ABRACKET, VANE PUMP, REAR

main44442-40050iGZG50199704-200501

44442BRING, O(FOR VANE PUMP BRACKET REAR)

main90301-53006iGZG50199704-200101

main90301-53007iGZG50200101-200501

9010510283

main90105-10283

9010510284

main90105-10284

9011908469

main90119-08469

9020630002

main90206-30002

9056108054

main90561-08054

91511B0855

main91511-B0855

91511J0840

main91511-J0840

39 parts on this diagram · 2 diagrams in section
