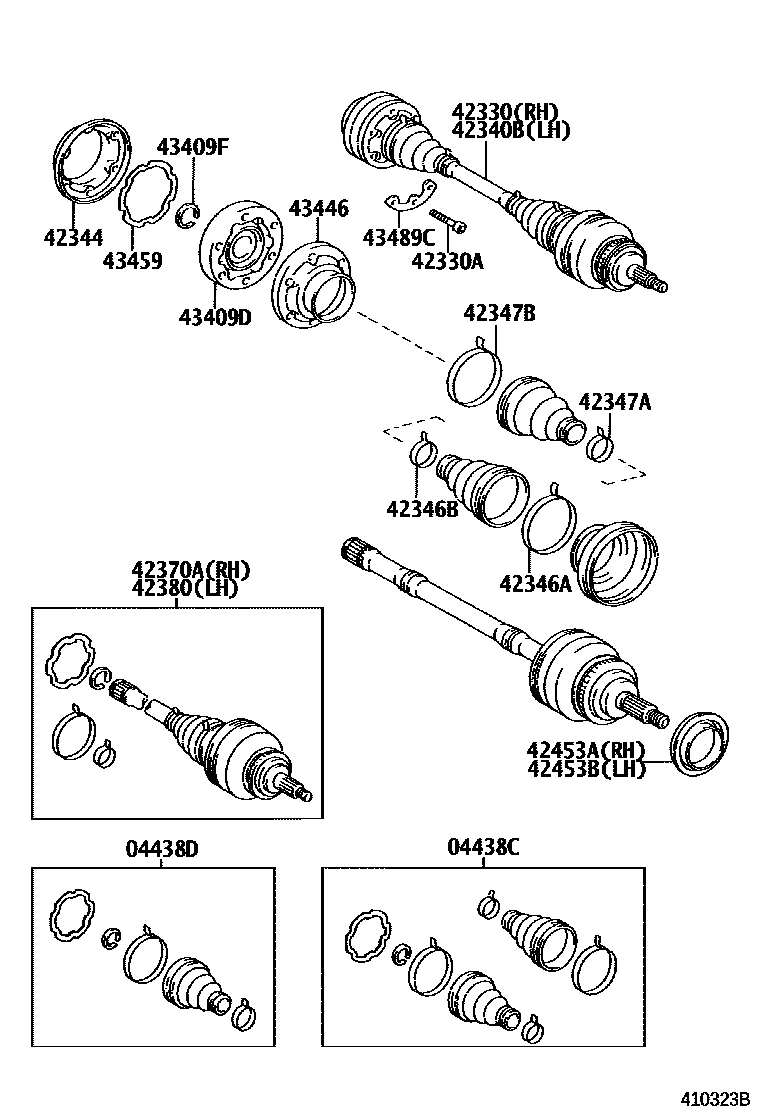

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04429-22020×2iGZG50199809-200501

sub04429-40020

main04437-24040×2iGZG50199704-199809

sub04437-24041

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-24030×2iGZG50199704-199809

sub04437-24031

main04439-22020×2iGZG50199809-200501

sub04439-40020

42330SHAFT ASSY, REAR DRIVE, RH

main42330-40010iGZG50200501

main42330-50030iGZG50199704-200501

42330ABOLT(FOR REAR DRIVE SHAFT)

main90110-12003×12iGZG50199704-200501

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-40010iGZG50200501

main42340-50030iGZG50199704-200501

42344COVER, REAR AXLE INBOARD JOINT END

main42344-50011×2iGZG50199704-200501

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01838×2iGZG50199704-200501

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01837×2iGZG50199704-200501

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01838×2iGZG50199704-200501

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01837×2iGZG50199704-200501

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-59035iGZG50199704-199809

main42370-59036iGZG50199809-200501

sub42370-59037

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-59035iGZG50199704-199809

main42380-59036iGZG50199809-200501

sub42380-59037

42453ADEFLECTOR, REAR WHEEL BEARING DUST, NO.3 RH

main42453-50010iGZG50199704-200501

42453BDEFLECTOR, REAR WHEEL BEARING DUST, NO.3 LH

main42453-50010iGZG50199704-200501

43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

main43409-24010×2iGZG50199704-200501

43409FRING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main90520-26028iGZG50199704-200501

43446COVER, REAR AXLE INBOARD JOINT

main43446-24020×2iGZG50199704-200501

43459GASKET, REAR AXLE INBOARD JOINT END COVER

main43459-50011×2iGZG50199704-200501

43489CWASHER, REAR DRIVE SHAFT

main43489-50010×4iGZG50199704-200501

19 parts on this diagram · 3 diagrams in section
