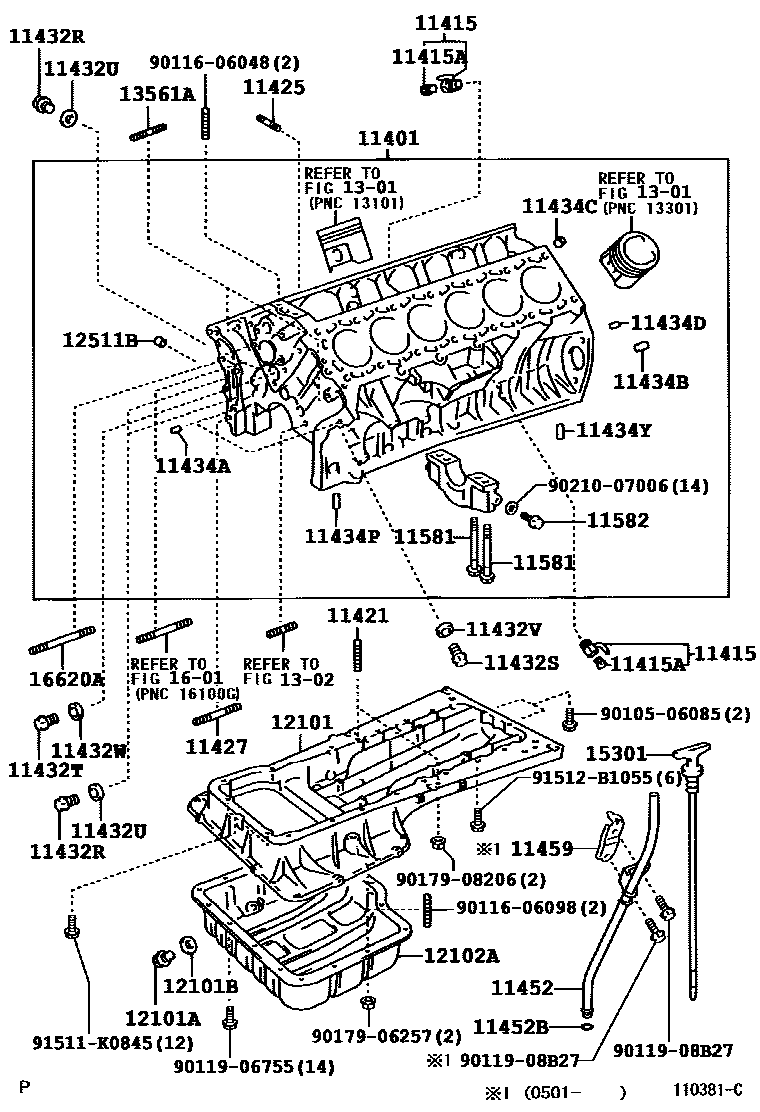

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11421BOLT, STUD(FOR OIL PAN)
11425BOLT, STUD(FOR OIL FILTER)
11427BOLT, STUD(FOR TIMING CHAIN COVER SET)
11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
11432VGASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)
11432WGASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
11434PPIN, STRAIGHT(FOR OIL PUMP SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11459SUPPORT, OIL LEVEL GAGE GUIDE
11581BOLT, CRANKSHAFT BEARING CAP, NO.1
11582BOLT, CRANKSHAFT BEARING CAP, NO.2
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
12511BPIN, RING(FOR ALTERNATOR BRACKET)
1301CRANKSHAFT & PISTON
1302CAMSHAFT & VALVE
13561ABOLT, STUD(FOR CHAIN DAMPER)
15301GAGE SUB-ASSY, OIL LEVEL
1601WATER PUMP
16620ABOLT, STUD(FOR V-BELT TENSIONER)
9010506085
main90105-06085
9011606048
main90116-06048
9011606098
main90116-06098
9011906755
main90119-06755
9011908B27
main90119-08B27
9017906257
main90179-06257
9017908206
main90179-08206
9021007006
main90210-07006
91511K0845
main91511-K0845
91512B1055
main91512-B1055
44 parts on this diagram · 1 diagram in section
