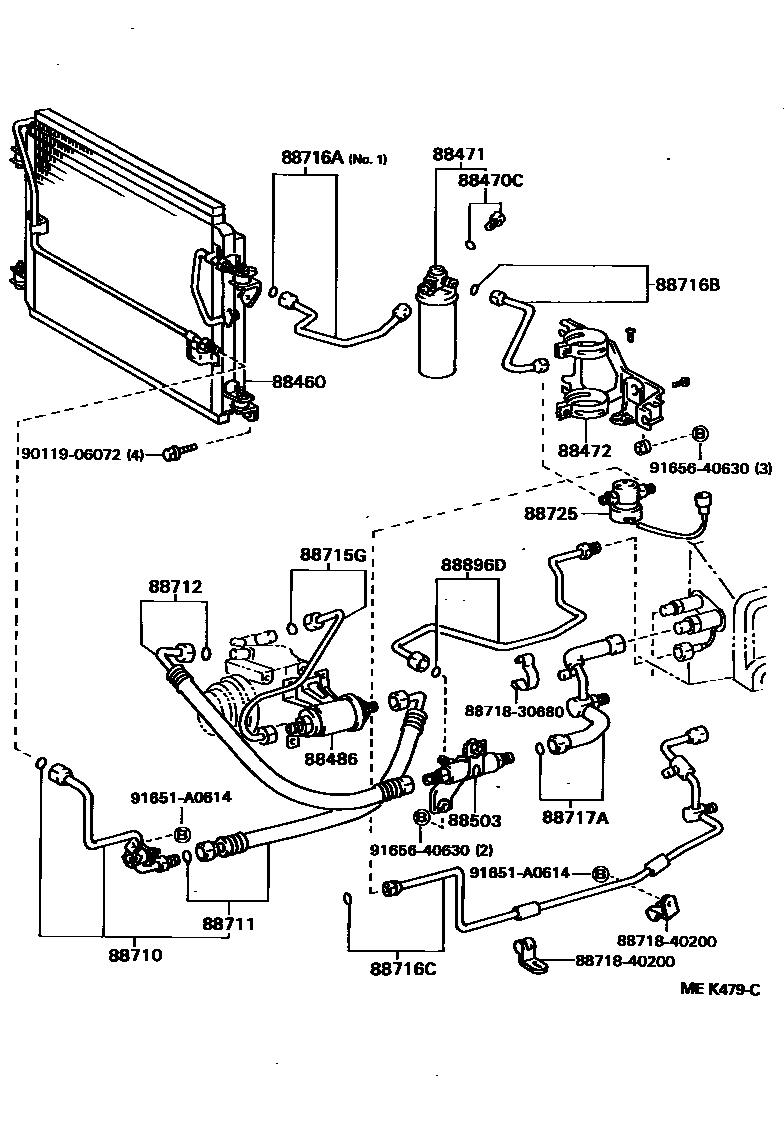

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1���� 0003 1�� 0004 1����� S,H 0006 1����� S,H 0007 1����� S,H 0009 1����� S,H

88460CONDENSER ASSY, COOLER

main88460-40040iVG4#198709-199212

main88460-40060iVG4#199212-199701

main88460-40070iVG45..4HC199212-199701

main88460-91401iVG40..4HC..E198910-199009

88470CBOLT, FUSE

main88475-12020iVG4#198709-199212

88471TANK, RECEIVER AIR CONDITIONER

main88471-40010iVG4#199212-199701

main88471-40070iVG4#198709-199212

88472BRACKET, RECEIVER TANK, NO.1

main88472-40061iVG4#198709-199212

main88472-40070iVG4#199212-199701

main88472-91401iVG40..4HC..E198910-198911

main88472-91402iVG40..4HC..E198911-199009

88486MUFFLER, DISCHARGE

main88486-40010iVG4#198709-199212

88503REGULATOR ASSY, PRESSURE

main88503-40010iVG4#198709-199212

main88503-40020iVG4#199212-199701

88710TUBE ASSY, AIR CONDITIONER

main88710-40041iVG4#198709-199212

main88710-40100iVG45..4HC199009-199212

main88710-91407iVG40..4HC..E198910-198912

main88710-91412iVG40..4HC199212-199701

main88716-40360iVG45..4HC199009-199212

main88720-40020iVG4#199212-199701

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-40081iVG4#198709-199212

sub88711-40150

main88711-91401iVG40..4HC..E198910-198912

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-40070iVG4#198709-199212

sub88712-40100

main88712-40080iVG4#199212-199701

main88712-40090iVG45..4HC199212-199701

88715GTUBE, DISCHARGE, G

main88715-40060iVG4#198709-199212

main88715-40070iVG4#199212-199701

main88715-91401iVG40..4HC..E198910-198912

main88715-91402iVG40..4HC199212-199701

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-40250iVG4#198709-199212

main88716-40270iVG40198709-199212

main88716-40320iVG4#198709-199212

main88716-40400iVG4#199212-199701

main88716-40420iVG45..4HC199212-199701

main88716-40520iVG45199212-199701

main88716-40530iVG40199212-199701

main88716-91405iVG45199009-199212

main88716-91409iVG40..4HC..E198910-199009

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-40281iVG4#198709-199212

main88716-40410iVG4#199212-199701

NO.2

main88716-40440iVG4#199212-199701

NO.1

main88716-91410iVG40..4HC..E198910-198911

main88716-91414iVG45..4HC199009-199212

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-40262iVG4#198709-199212

main88716-40450iVG4#199212-199701

main88716-40470iVG45..4HC199212-199701

main88716-91401iVG40..4HC..E198910-198911

main88716-91413iVG40..4HC..E198911-199009

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-40130iVG4#198709-199212

main88717-40200iVG4#199212-199701

main88717-40230iVG45..4HC199212-199701

main88717-91407iVG45..4HC199009-199212

88725SENSOR, REFRIGERANT

main88725-40011iVG4#198709-199212

88896DPIPE, EQUALIZER

main88896-40040iVG4#198709-199212

main88896-40050iVG4#199212-199701

8871830680PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30680

8871840200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-40200

9011906072

main90119-06072

91651A0614

main91651-A0614

9165640630

main91656-40630

21 parts on this diagram · 7 diagrams in section
