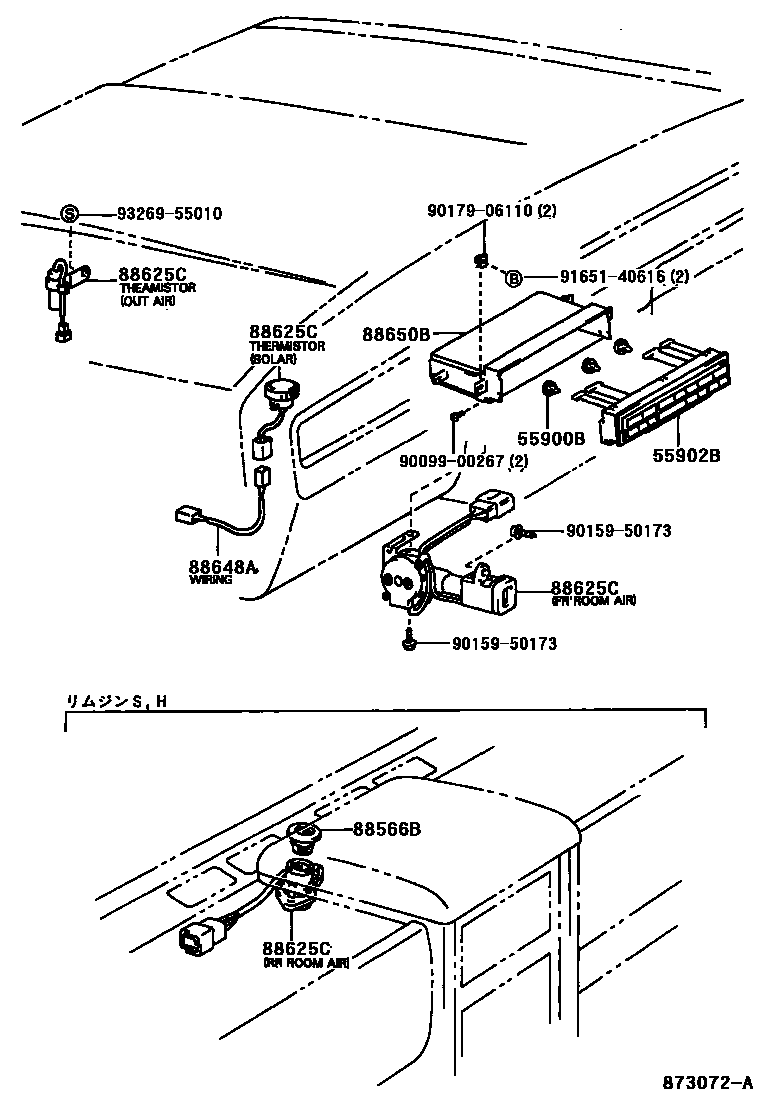

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1����� S,H

55900BBULB, AIR CONDITIONER CONTROL

main84999-60760×3iVG4#198709-199701

55902BCONTROL SUB-ASSY, HEATER

main55902-40020iVG4#198709-199701

88566BDUCT, COOLER AIR, NO.2

main88566-20050iVG40..4HC..E198910-199009

88625CTHERMISTOR, COOLER

main88625-30550iVG4#198709-199701

OUT AIR SENSOR

main88625-40100-01iVG4#..E,L198709-199212

BLACK,TRIM2#,SOLAR SENSOR

main88625-40100-02iVG4#..E,L198709-199212

MAROON,TRIM3#,SOLAR SENSOR

main88625-40100-13iVG4#198709-199701

SHADOW GRAY,TRIM1#,SOLAR SENSOR

main88625-40100-14iVG4#198709-199701

DARK BLUE,TRIM8#,SOLAR SENSOR

main88625-40100-E0iVG4#..E,L199212-199701

SABLE,TRIM4#,SOLAR SENSOR

main88790-40030iVG4#198709-199701

FR ROOM AIR SENSOR

main88790-91401iVG40..4HC..E198910-199009

main88790-91402iVG40..4HC..E198910-199009

88648AWIRING, COOLER

main88648-40040iVG4#198709-199701

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-40110iVG4#198709-199212

main88650-40120iVG4#..4HC198910-199212

main88650-40130iVG4#199212-199302

main88650-40140iVG45..4HC199212-199302

main88650-40150iVG4#199302-199412

main88650-40160iVG4#199412-199701

9009900267

main90099-00267

9015950173

main90159-50173

9017906110

main90179-06110

9165140616

main91651-40616

9326955010

main93269-55010

11 parts on this diagram · 3 diagrams in section
