SPEAKER

6701

6705

86160SPEAKER ASSY, FRONT NO.1

main86160-40050iVG40198709-199009

RH,NO.1

main86160-40051iVG40..4HC..E198910-199009

main86160-40060iVG40198709-199009

LH,NO.1

main86160-40061iVG40..4HC..E198910-199009

main86160-40070×2iVG4#199009-199701

main86160-40140iVG4#199009-199701

RH,NO.1

main86160-40150iVG4#199009-199701

LH,NO.1

main86160-40160iVG45..4HC199009-199701

main86160-40170iVG45..4HC199009-199701

86160BSPEAKER ASSY, REAR

main86160-40070×2iVG40..E198709-199009

main86160-40090×2iVG40..D198709-199009

main86160-40100×2iVG40..E198709-199009

main86160-40110×2iVG40..E198709-199009

main86160-40120×2iVG40..4HC..E198910-199009

main86160-40180iVG4#199009-199701

NO.2,RH

main86160-40190×2iVG4#199009-199701

main86160-40200×2iVG45..4HC199009-199701

main86160-40210iVG4#199009-199701

NO.2,LH

86219DBRACKET, SPEAKER, REAR NO.1

main86219-91401-01×2iVG4#..E,L198709-199212

BLACK,TRIM2#

main86219-91401-02×2iVG4#..E,L198709-199212

MAROON,TRIM3#

main86219-91401-14×2iVG4#198709-199701

DARK BLUE,TRIM8#

main86219-91401-23×2iVG4#198709-199701

SHADOW GRAY,TRIM1#

main86219-91401-E0×2iVG4#..E,L199212-199701

SABLE,TRIM4#

main86219-91402iVG40..E198709-199009

NO.2,RH

main86229-91401iVG40..E198709-199009

NO.2,LH

86225COVER, SPEAKER, RH

main86225-40010iVG4#199009-199701

RR DOOR

main86225-91401iVG4#198709-199701

FR DOOR

main86225-91402iVG40..E198709-199009

RR DOOR

86226COVER, SPEAKER, LH

main86226-40010iVG4#199009-199701

RR DOOR

main86226-91401iVG4#199009-199701

FR DOOR

main86226-91402iVG40..E198709-199009

RR DOOR

86269AGRILLE, SPEAKER

main86269-40030-01×2iVG4#..E,L199009-199212

BLACK,TRIM2#

main86269-40030-02×2iVG4#..E,L199009-199212

MAROON,TRIM3#

main86269-40030-03×2iVG4#199009-199212

SHADOW GRAY,TRIM1#

main86269-40030-04×2iVG4#199009-199212

DARK BLUE,TRIM8#

main86269-40030-E0×2iVG4#..E,L199212-199701

SABLE,TRIM4#

main86269-40030-P0×2iVG4#199212-199701

SHADOW GRAY,TRIM1#

main86269-40030-R8×2iVG4#199212-199701

DARK BLUE,TRIM8#

main86269-91403-01×2iVG40..E198709-199009

BLACK,TRIM2#

main86269-91403-02×2iVG40..E198709-199009

MAROON,TRIM3#

main86269-91403-03×2iVG40198709-199009

SHADOW GRAY,TRIM1#

main86269-91403-04×2iVG40198709-199009

DARK BLUE,TRIM8#

9014950032

main90149-50032

9017904092

main90179-04092

9046706017

main90467-06017

9046707146

main90467-07146

9165140610

main91651-40610

9165140612

main91651-40612

9165140614

main91651-40614

9166540620

main91665-40620

9354014012

main93540-14012

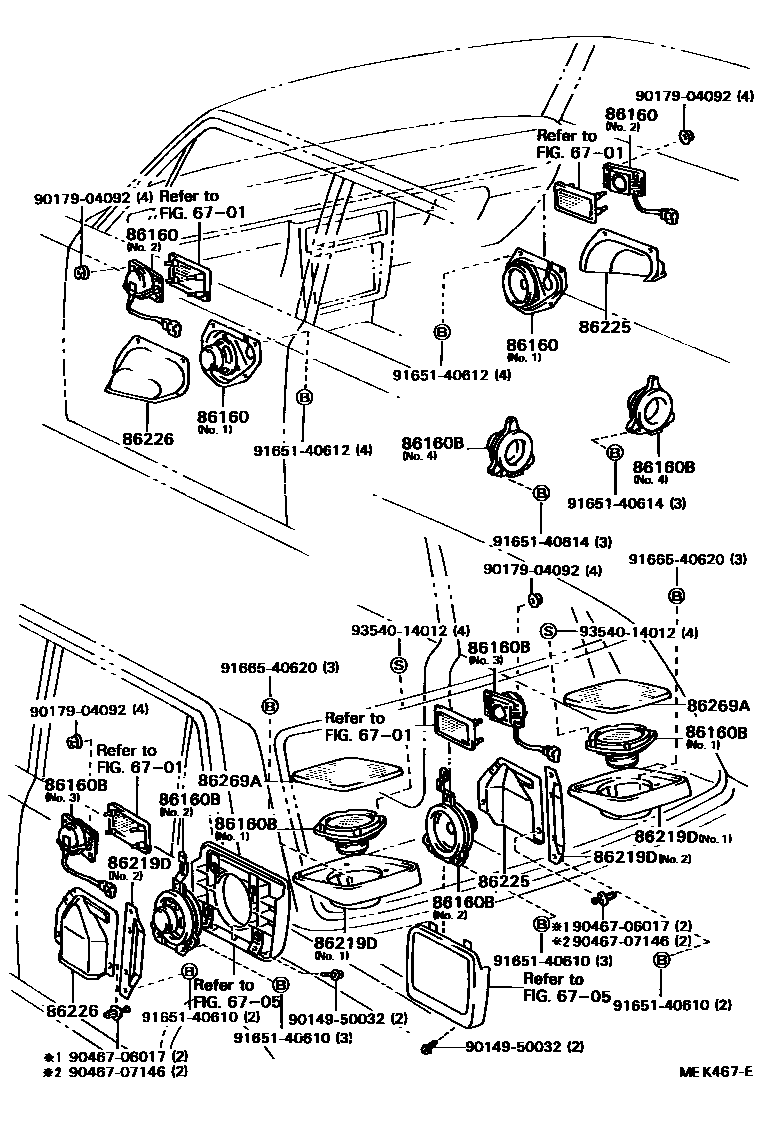

17 parts on this diagram · 1 diagram in section
