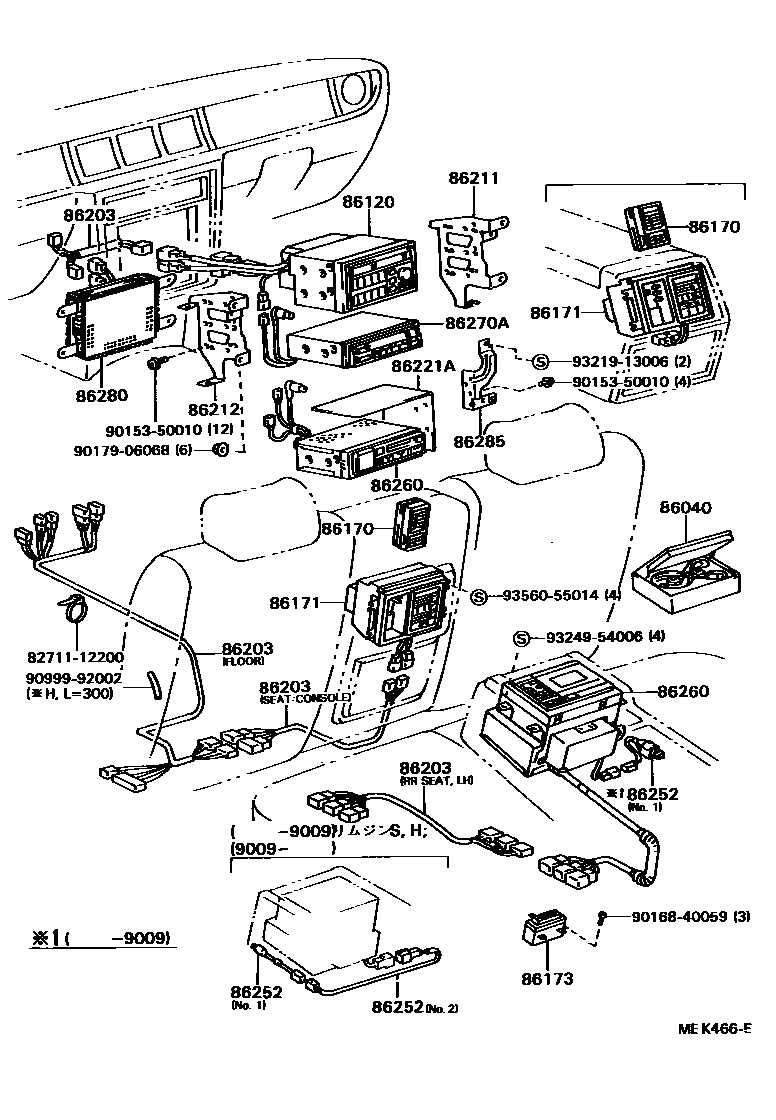

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������ & ��������

86040HEADPHONE ASSY, STEREO

main86040-30030iVG4#..E,L199212-199701

main86040-40010iVG4#..E,L198709-199212

86120RECEIVER ASSY, RADIO

main86120-40100iVG40..D198709-199009

main86120-40110iVG4#198709-199212

sub86120-40111

main86120-40111iVG4#199212-199701

86170SWITCH AND VOLUME ASSY, RADIO

main86170-40040iVG4#..E,L198709-199212

sub86170-40041

main86170-40041iVG45..4HC199212-199701

main86170-40060iVG45..4HC199009-199212

sub86170-40061

main86170-40061iVG45..4HC199212-199701

main86170-40070iVG4#..E,L199212-199701

main86170-40080iVG45..4HC199212-199701

86171BASE, RADIO REMOTE CONTROL

main86171-40020iVG4#..E,L198709-199212

sub86171-40022

main86171-40022iVG45..4HC199212-199701

86173DISPLAY, RADIO REMOTE CONTROLER

main86173-40010iVG4#..E,L199212-199701

86203WIRE, RADIO

main86203-40200iVG45..4HC198910-199103

main86203-40201iVG45..4HC199103-199701

main86203-40210iVG40199009-199212

main86203-40220iVG45199009-199212

main86203-40270iVG4#..4FC..(E,L)199009-199212

FLOOR

main86203-40280iVG4#..4FC..(E,L)199009-199212

CONSOLE

main86203-40290iVG4#..4HC199009-199212

FLOOR

main86203-40300iVG4#..4HC199009-199212

SEAT

main86203-40310iVG4#..E,L199009-199212

main86203-40330iVG40..4FC..D199007-199701

main86203-40340iVG40199212-199701

main86203-40350iVG45199212-199701

main86203-91404iVG40..4HC..E198709-199009

main86203-91405iVG40..4HC..E198709-199009

CONSOLE

main86203-91406iVG40..4HC..E198709-199009

FLOOR

main86203-91407iVG40..4HC..E198709-199009

SEAT

86211BRACKET, RADIO, NO.1

main86211-40040iVG4#198709-199701

86212BRACKET, RADIO, NO.2

main86212-40040iVG4#198709-199701

86221APANEL, RADIO RECEIVER

main86221-40010iVG45..4HC199010-199701

86252CODE, MICROPHONE, NO.1

main86252-40010iVG45..4HC199212-199701

main86252-40010iVG4#..E,L198709-199212

NO.1

main86252-40020iVG4#..E,L199212-199701

main86252-91401iVG45..4HC198910-199701

86260TAPE PLAYER ASSY

main86260-40030iVG40..E198709-199009

main86260-40030iVG45..4HC199009-199212

main86260-40032iVG45..4HC199212-199701

main86260-40040iVG45..4HC199009-199011

main86260-40040iVG40..4HC..E198910-199212

main86260-40050iVG4#..E,L199009-199212

main86260-40060iVG4#..E,L199011-199212

main86260-40070iVG4#..E,L199212-199701

86270ADISC PLAYER ASSY

main86270-40010iVG40..4HC..E198709-199009

sub86270-40011

main86270-40011iVG45..4HC199009-199212

sub86270-40012

main86270-40012iVG45..4HC199212-199701

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-40020iVG40..E198709-199009

main86280-40021iVG40..4HC..E198910-199009

main86280-40031iVG4#199009-199212

FRONT

main86280-40041iVG45..4HC199009-199103

main86280-40042iVG45..4HC199103-199701

main86280-40051iVG4#199009-199701

REAR

main86280-40060iVG4#199011-199212

main86280-40070iVG4#199212-199701

FRONT

86285BRACKET, AMPLIFIER, NO.1

main86285-40010iVG4#199011-199212

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9015350010

main90153-50010

9016840059

main90168-40059

9017906068

main90179-06068

9099992002

main90999-92002

9321913006

main93219-13006

9324954006

main93249-54006

9356055014

main93560-55014

22 parts on this diagram · 3 diagrams in section
