BATTERY CARRIER

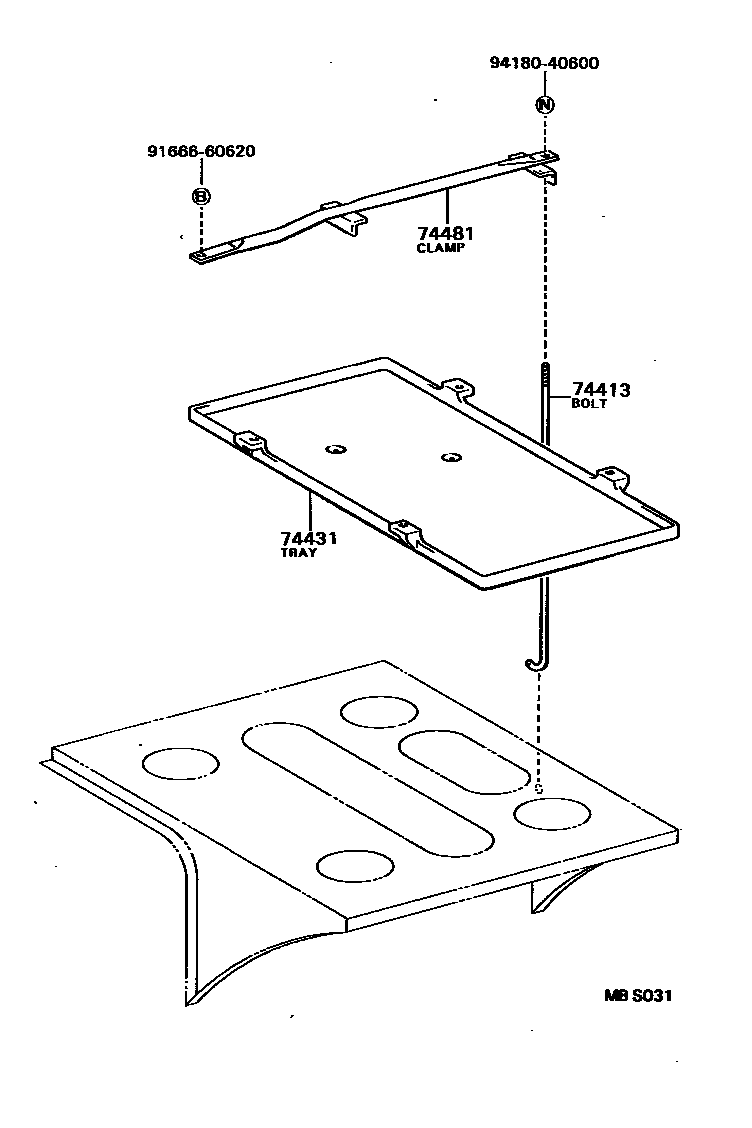

Parts diagram

74413BOLT, BATTERY CLAMP

main74451-14010i198709-199701

74431TRAY, BATTERY

main74431-14040i198709-199701

74481CLAMP, BATTERY HOLD DOWN

main74404-91403i198709-199701

9166660620

main91666-60620

9418040600

main94180-40600

5 parts on this diagram · 1 diagram in section
