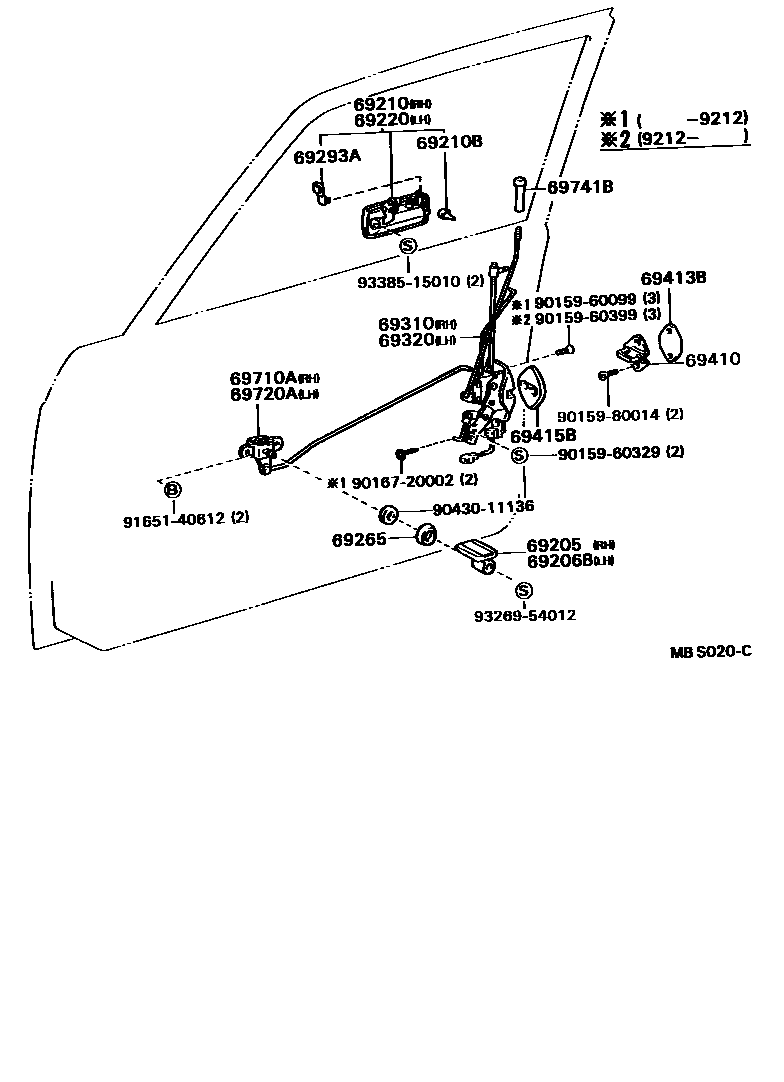

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69206-91401iVG4#198709-199701

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69207-91402iVG4#198709-199701

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-40030iVG4#198709-199701

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×4iVG4#198709-199701

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-40030iVG4#198709-199701

69265ESCUTCHEON, FRONT DOOR INSIDE HANDLE

main69265-91401×2iVG4#198709-199701

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12010iVG4#198709-199701

main69293-12020iVG4#198709-199701

69310LOCK ASSY, FRONT DOOR, RH

main69310-40100iVG4#198709-199212

main69310-40101iVG4#199212-199301

main69310-40120iVG4#199301-199701

69320LOCK ASSY, FRONT DOOR, LH

main69320-40100iVG4#198709-199212

main69320-40101iVG4#199212-199301

main69320-40120iVG4#199301-199701

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-50010×2iVG4#199210-199701

main69410-90B02×2iVG4#198709-199210

69413BSHIM, DOOR LOCK STRIKER

main69413-30010iVG4#198709-199210

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-50010×4iVG4#199210-199701

69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH

main69710-40030iVG4#198709-199701

69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH

main69720-40030iVG4#198709-199701

69741BKNOB, FRONT DOOR LOCK CONTROL

main69077-91401×2iVG4#198709-199701

9015960099

main90159-60099

9015960329

main90159-60329

9015960399

main90159-60399

9015980014

main90159-80014

9016720002

main90167-20002

9043011136

main90430-11136

9165140612

main91651-40612

9326954012

main93269-54012

9338515010

main93385-15010

24 parts on this diagram · 1 diagram in section
