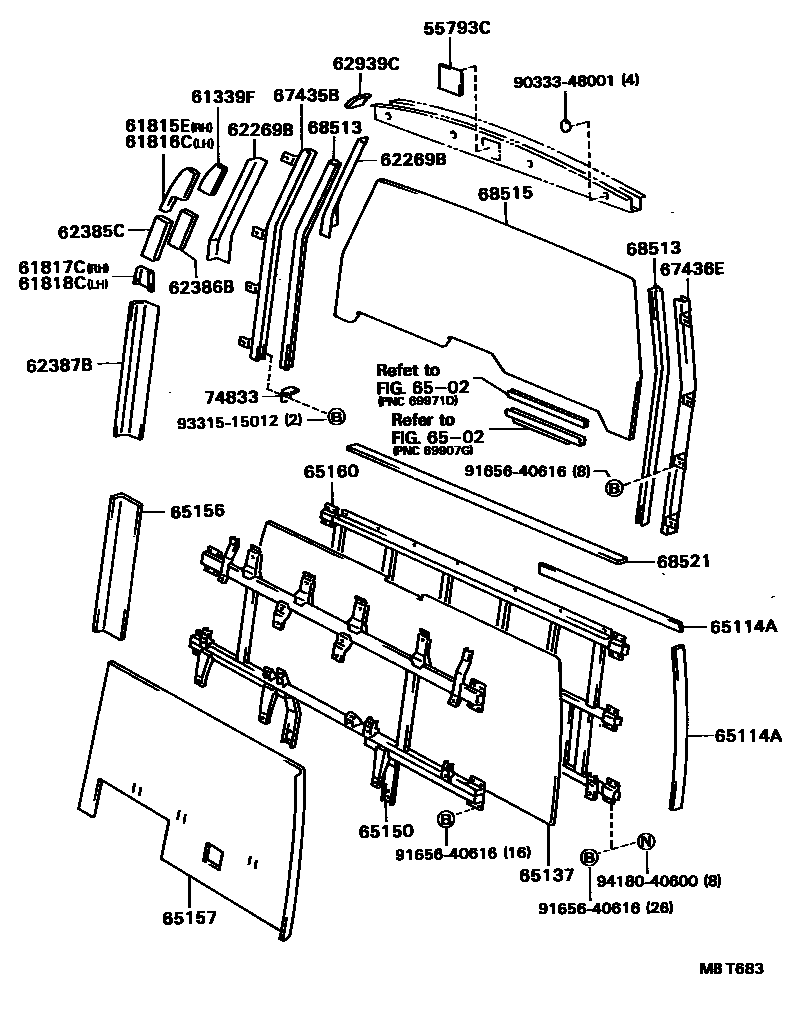

ROOM SEPARATOR & GLASS
55793CCOVER, WIPER MOTOR SERVICE HOLE
61339FSEAL, CENTER BODY PILLAR, INNER
61815ECOVER, ROOF SIDE, INNER UPPER RH
61816CCOVER, ROOF SIDE, INNER UPPER LH
61817CCOVER, ROOF SIDE, INNER LOWER RH
61818CCOVER, ROOF SIDE, INNER LOWER LH
62269BFILM, SIDE WINDOW FRAME
62385CSEAL, SIDE WINDOW, NO.1
62386BSEAL, SIDE WINDOW, NO.2
62387BSEAL, SIDE WINDOW, NO.3
62939CSILENCER, QUARTER VENT
sub61824-12110
6502
65114ACOVER, MAIN SILL, REAR
65137COVER, MAIN SILL END
65150SILL ASSY, CROSS, NO.1
65156COVER, CROSS SILL END, RH
sub65157-91401
65157COVER, CROSS SILL END, LH
65160SILL ASSY, CROSS, NO.2
67435BFRAME, SEPARATOR WINDOW, RH
67436EFRAME, SEPARATOR WINDOW, LH
68513RUN, SEPARATION WINDOW
68515GLASS, SEPARATION WINDOW
68521WEATHERSTRIP, SEPARATION DOOR WINDOW
74833FRAME, SEPARATOR WINDOW GUARD SIDE
9033348001
main90333-48001
9165640616
main91656-40616
9331515012
main93315-15012
9418040600
main94180-40600
28 parts on this diagram · 1 diagram in section
