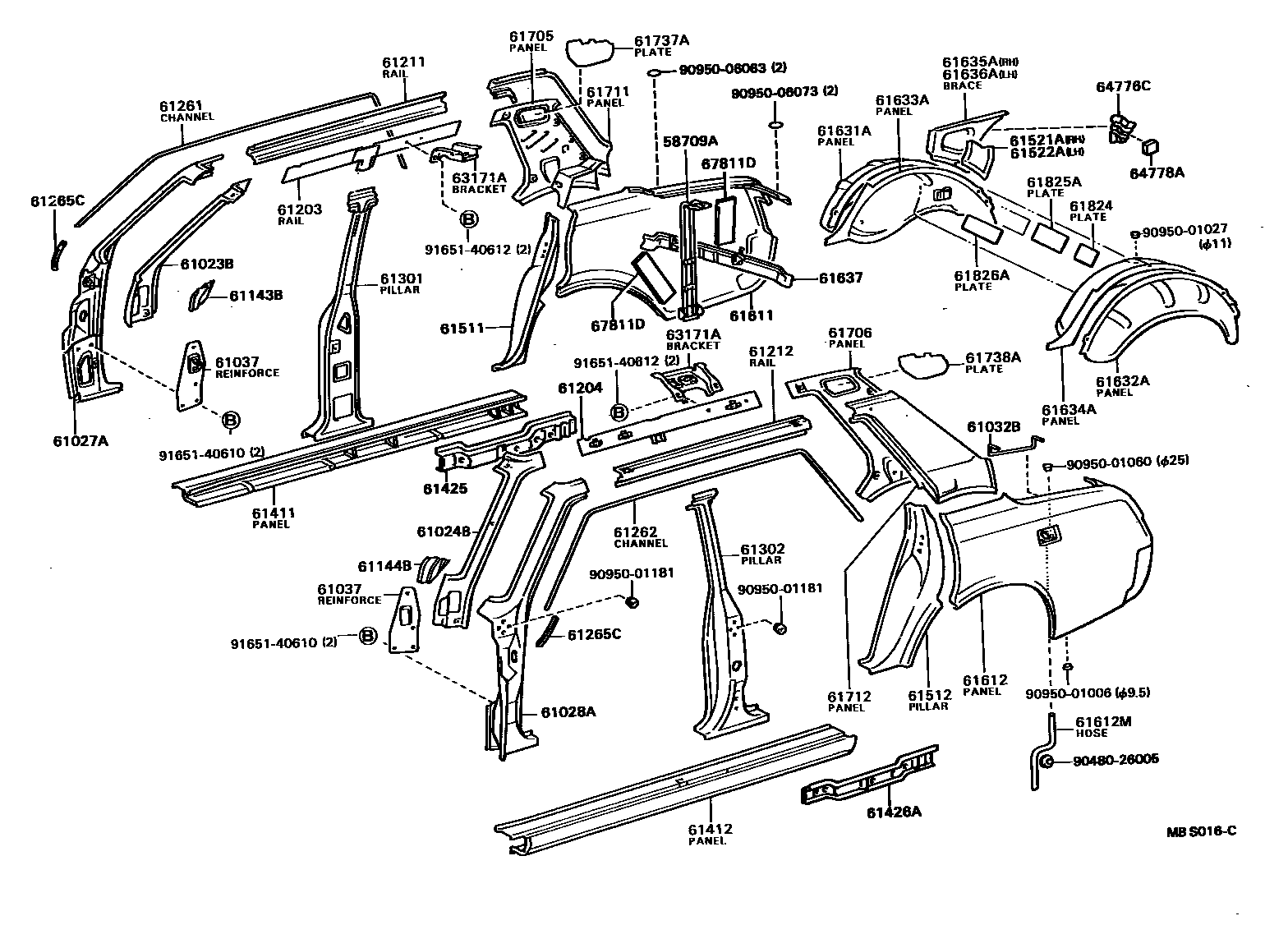

SIDE MEMBER
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61032BEXTENSION SUB-ASSY, QUARTER PANEL, LH
61037REINFORCE SUB-ASSY, FRONT BODY PILLAR, CENTER
61143BGUSSET, FRONT BODY PILLAR, UPPER INNER RH
61144BGUSSET, FRONT BODY PILLAR, UPPER INNER LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61265CCHANNEL, ROOF DRIP, LOWER
61302PILLAR SUB-ASSY, CENTER BODY, LH
sub61302-40050
sub61302-40060
sub61302-40010
sub61302-40030
sub61302-40030
sub61302-40020
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61425REINFORCEMENT, ROCKER PANEL, NO.4 RH
61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH
61521ABRASE, QUARTER LOCK PILLAR TO REAR PANEL, RH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61612MHOSE(FOR FUEL INLET BOX)
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61635ABRACE, QUARTER WHEEL HOUSE, RH
61636ABRACE, QUARTER WHEEL HOUSE, LH
61637BRACE, QUARTER WHEEL HOUSE, RH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61737APLATE, ROOF SIDE INNER RAIN PROOF, RH
61738APLATE, ROOF SIDE INNER RAIN PROOF, LH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
63171ABRACKET, ROOM LAMP
64776CGUARD, SPARE WHEEL, NO.2
64778APROTECTOR, SPARE WHEEL
67811DPAD, QUATER SILENCER
9048026005
main90480-26005
9095001006
main90950-01006
9095001027
main90950-01027
9095001060
main90950-01060
9095001181
main90950-01181
9095006063
main90950-06063
9095006073
main90950-06073
9165140610
main91651-40610
9165140612
main91651-40612
58 parts on this diagram · 2 diagrams in section
