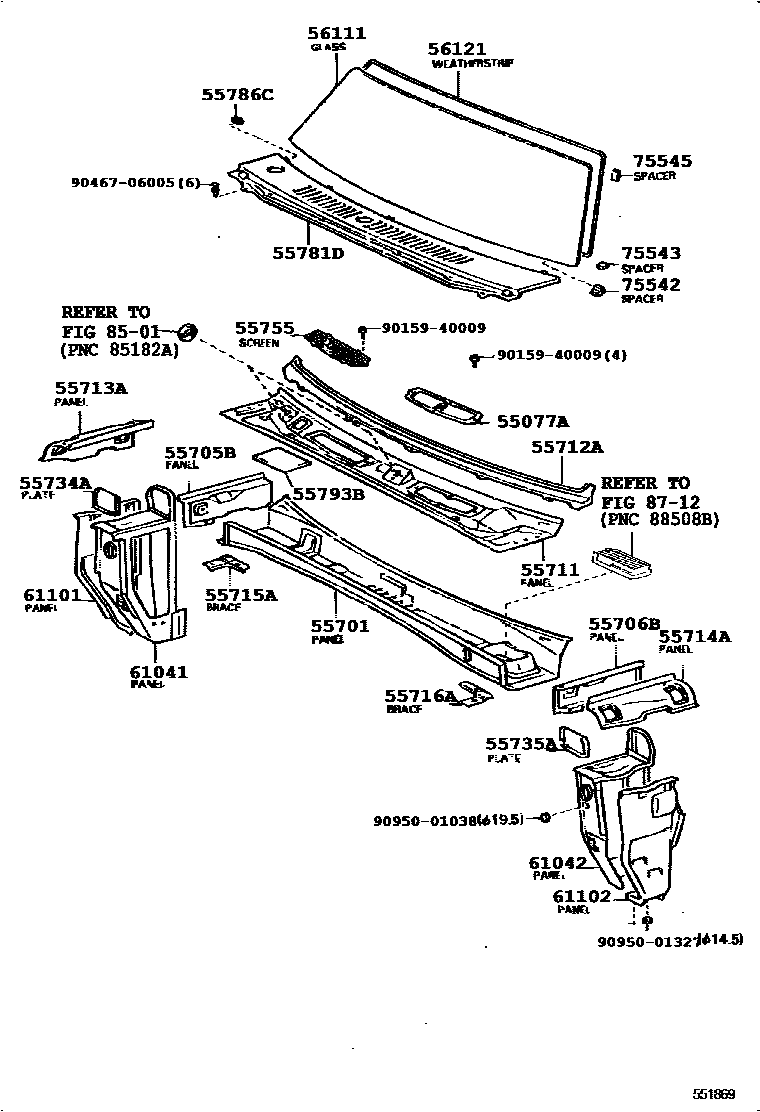

COWL PANEL & WINDSHIELD GLASS
55077ACOVER SUB-ASSY, HEATER AIR DUCT HOLE
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55712APANEL, FRONT LOWER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55734APLATE, WATER GUARD, RH
55735APLATE, WATER GUARD, LH
55755SCREEN, HEATER AIR DUCT
55781DLOUVER, COWL TOP VENTILATOR, RH
55786CCAP, COWL PANEL, OUTER
55793BCOVER, WIPER MOTOR SERVICE HOLE
56111GLASS, WINDSHIELD
56121WEATHERSTRIP, WINDSHIELD
61041PANEL SUB-ASSY, COWL SIDE, INNER RH
61042PANEL SUB-ASSY, COWL SIDE, INNER LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
75542SPACER, STEP RUBBER WINDSHIELD GLASS
75543SPACER, FLAT RUBBER WINDSHIELD GLASS
75545SPACER, WINDSHIELD GLASS
8501
8712
9015940009
main90159-40009
9046706005
main90467-06005
9095001038
main90950-01038
9095001327
main90950-01327
31 parts on this diagram · 1 diagram in section
