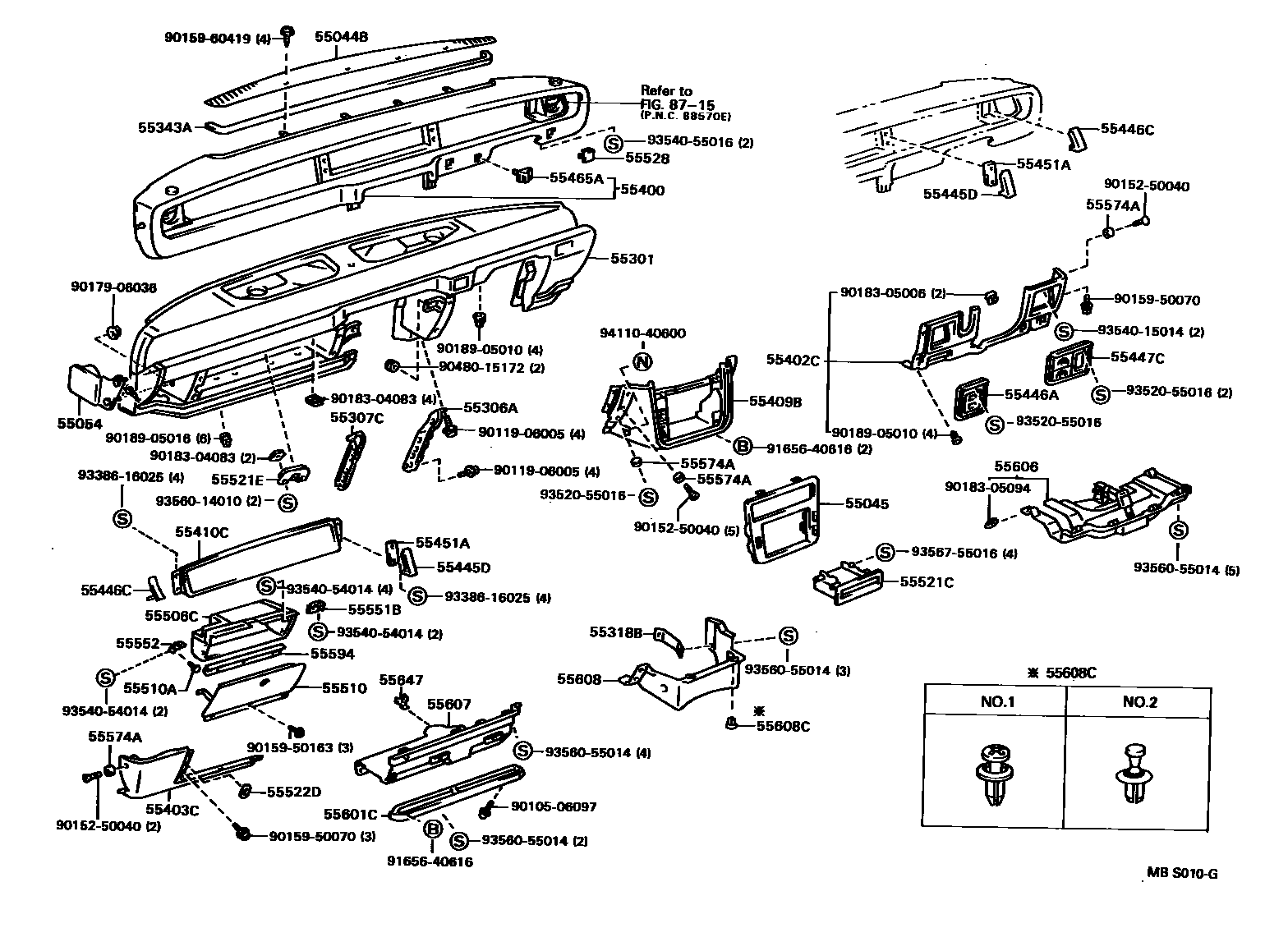

INSTRUMENT PANEL & GLOVE COMPARTMENT

55044BPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

main55044-40010-01iVG4#..E,L198709-199212

BLACK,TRIM2#

main55044-40010-02iVG4#..E,L198709-199212

MAROON,TRIM3#

main55044-40010-13iVG4#198709-199701

SHADOW GRAY,TRIM1#

main55044-40010-14iVG4#198709-199701

DARK BLUE,TRIM8#

main55044-40010-E0iVG4#..E,L199212-199701

SABLE,TRIM4#

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-40020iVG4#..E,L199009-199701

main55045-40030iVG40..D199009-199701

main55045-91401iVG40..E198709-199009

main55045-91402iVG40..D198709-199009

55054STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

main55054-40010iVG4#199009-199701

55301PANEL SUB-ASSY, INSTRUMENT

main55310-91411iVG4#198709-199701

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-91404iVG40198709-199009

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-91407iVG40198709-199009

55318BEXTENSION, INSTRUMENT PANEL

main55318-40010iVG4#198709-199701

55343AINSULATOR, FRONT WINDOW DEFROSTOR

main55343-91401iVG4#198709-199701

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-40030-01iVG4#..E,L199009-199212

BLACK,TRIM2#

main55400-40030-02iVG4#..E,L199009-199212

MAROON,TRIM3#

main55400-40030-03iVG4#199009-199212

SHADOW GRAY,TRIM1#

main55400-40030-04iVG4#199009-199212

DARK BLUE,TRIM8#

main55400-40060-B0iVG4#..4FC199212-199412

SHADOW GRAY,TRIM1#

main55400-40060-E0iVG4#..4FC..(E,L)199212-199412

SABLE,TRIM4#

main55400-40060-J0iVG4#..4FC199212-199412

DARK BLUE,TRIM8#

main55400-40110-B0iVG4#..4HC199212-199412

SHADOW GRAY,TRIM1#

main55400-40110-E0iVG4#..4HC199212-199412

SABLE,TRIM4#

main55400-40110-J0iVG4#199412-199701

DARK BLUE,TRIM8#

main55400-91402-01iVG40..E198709-199009

BLACK,TRIM2#

main55400-91402-02iVG40..E198709-199009

MAROON,TRIM3#

main55400-91402-03iVG40198709-199009

SHADOW GRAY,TRIM1#

main55400-91402-04iVG40198709-199009

DARK BLUE,TRIM8#

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-40020-B0iVG4#..4FC199212-199701

SHADOW GRAY,TRIM1#

main55402-40020-E0iVG4#..4FC..(E,L)199212-199701

SABLE,TRIM4#

main55402-40020-J0iVG4#..4FC199212-199701

DARK BLUE,TRIM8#

main55402-40030-B0iVG4#..4HC199212-199701

SHADOW GRAY,TRIM1#

main55402-40030-E0iVG4#..4HC199212-199701

SABLE,TRIM4#

main55402-40030-J0iVG4#..4HC199212-199701

DARK BLUE,TRIM8#

main55402-91407-01iVG40..4FC..E198709-198905

BLACK,TRIM2#

main55402-91407-02iVG40..4FC..E198709-198905

MAROON,TRIM3#

main55402-91407-03iVG40..4FC198709-198905

SHADOW GRAY,TRIM1#

main55402-91407-04iVG40..4FC198709-198905

DARK BLUE,TRIM8#

main55402-91408-01iVG40..4HC..E198709-198905

BLACK,TRIM2#

main55402-91408-02iVG40..4HC..E198709-198905

MAROON,TRIM3#

main55402-91408-03iVG40..4HC198709-198905

SHADOW GRAY,TRIM1#

main55402-91408-04iVG40..4HC198709-198905

DARK BLUE,TRIM8#

main55402-91409-01iVG4#..4FC..(E,L)199009-199212

BLACK,TRIM2#

main55402-91409-02iVG4#..4FC..(E,L)199009-199212

MAROON,TRIM3#

main55402-91409-03iVG4#..4FC199009-199212

SHADOW GRAY,TRIM1#

main55402-91409-04iVG4#..4FC199009-199212

DARK BLUE,TRIM8#

main55402-91410-01iVG4#..4HC199009-199212

BLACK,TRIM2#

main55402-91410-02iVG40..4HC..E198905-198910

MAROON,TRIM3#

main55402-91410-03iVG40..4HC198905-198910

SHADOW GRAY,TRIM1#

main55402-91410-04iVG4#..4HC199009-199212

DARK BLUE,TRIM8#

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-40010-01iVG4#..E,L198709-199212

BLACK,TRIM2#

main55403-40010-02iVG4#..E,L198709-199212

MAROON,TRIM3#

main55403-40010-13iVG4#198709-199212

SHADOW GRAY,TRIM1#

main55403-40010-14iVG4#198709-199212

DARK BLUE,TRIM8#

main55403-40020-B0iVG4#199212-199701

SHADOW GRAY,TRIM1#

main55403-40020-E0iVG4#..E,L199212-199701

SABLE,TRIM4#

main55403-40020-J0iVG4#199212-199701

DARK BLUE,TRIM8#

55409BPAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER

main55409-40020-B0iVG4#199212-199701

SHADOW GRAY,TRIM1#

main55409-40020-E0iVG4#..E,L199212-199701

SABLE,TRIM4#

main55409-40020-J0iVG4#199212-199701

DARK BLUE,TRIM8#

main55409-91404-01iVG4#..E,L198709-199212

BLACK,TRIM2#

main55409-91404-02iVG4#..E,L198709-199212

MAROON,TRIM3#

main55409-91404-03iVG4#198709-199212

SHADOW GRAY,TRIM1#

main55409-91404-04iVG4#198709-199212

DARK BLUE,TRIM8#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-40010iVG4#198709-199701

55445DORNAMENT, VENTILATOR LOUVER CENTER

main55445-91402×2iVG4#198709-199701

55446ABASE, SWITCH HOLE, NO.1

main55446-91403iVG4#198709-199701

main55446-91404iVG45..4HC199009-199212

55446CORNAMENT, VENTILATOR LOUVER CENTER

main55446-91402×2iVG4#198709-199701

55447CBASE, SWITCH HOLE, NO.2

main55447-91402iVG4#198709-199701

55451APLATE, INSTRUMENT PANEL CENTER LOUVER

main55451-91401×2iVG4#198709-199701

55465APLATE, CONTROL POSITION INDICATOR

main55465-91404iVG4#..4HC198709-199701

55506CCOMPARTMENT SUB-ASSY, GLOVE

main55506-40010iVG4#198709-199701

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-40010-01iVG4#..E,L199009-199212

BLACK,TRIM2#

main55501-40010-02iVG4#..E,L199009-199212

MAROON,TRIM3#

main55501-40010-03iVG4#199009-199212

SHADOW GRAY,TRIM1#

main55501-40010-04iVG4#199009-199212

DARK BLUE,TRIM8#

main55501-40020-B0iVG4#199212-199701

SHADOW GRAY,TRIM1#

main55501-40020-E0iVG4#..E,L199212-199701

SABLE,TRIM4#

main55501-40020-J0iVG4#199212-199701

DARK BLUE,TRIM8#

main55510-91402-12iVG40..E198709-199009

MAROON,TRIM3#

main55510-91402-14iVG40198709-199009

DARK BLUE,TRIM8#

main55510-91402-21iVG40..E198709-199009

BLACK,TRIM2#

main55510-91402-23iVG40198709-199009

SHADOW GRAY,TRIM1#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-04002×2iVG40198709-199009

55521CCOVER, STEREO OPENING

main55521-16030iVG4#198709-199701

55521ERETAINER, GLOVE COMPARTMENT MALE

main55521-30022iVG4#198709-199701

55522DGROMMET, GLOVE CONPARTMENT OPEN STOPPER

main55522-91402iVG4#198709-199701

55528COVER, AUTO DRIVE OPENING

main55528-91402-03iVG40..D198709-199212

SHADOW GRAY,TRIM1#

main55528-91402-04iVG40..D198709-199212

DARK BLUE,TRIM8#

55551BBRASKET, GLOVE CONPARTMENT DOOR BUMPER, RH

main55551-91402iVG40198709-199009

main55586-40010iVG4#199009-199701

55552BRACKET, GLOVE COMPARTMENT DOOR BUMPER, RH

main55552-91402iVG40198709-199009

main55587-40010iVG4#199009-199701

55574AWSHER, INSTRUMENT PANEL CENTER COVER SETTING

main55574-91401iVG4#198709-199701

55594TRIM, GLOVE COMPARTMENT, LOWER

main55594-40010iVG4#198709-199701

55601CTRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-91409-01iVG4#..E,L198709-199212

BLACK,TRIM2#

main55601-91409-02iVG4#..E,L198709-199212

MAROON,TRIM3#

main55601-91409-03iVG4#198709-199701

SHADOW GRAY,TRIM1#

main55601-91409-04iVG4#198709-199701

DARK BLUE,TRIM8#

main55601-91409-E0iVG4#..E,L199212-199701

SABLE,TRIM4#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-91402-01iVG4#..E,L198709-199212

BLACK,TRIM2#

main55606-91402-02iVG4#..E,L198709-199212

MAROON,TRIM3#

main55606-91402-03iVG4#198709-199701

SHADOW GRAY,TRIM1#

main55606-91402-04iVG4#198709-199701

DARK BLUE,TRIM8#

main55606-91402-E0iVG4#..E,L199212-199701

SABLE,TRIM4#

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-91404-01iVG4#..E,L198709-199212

BLACK,TRIM2#

main55607-91404-02iVG4#..E,L198709-199212

MAROON,TRIM3#

main55607-91404-03iVG4#198709-199701

SHADOW GRAY,TRIM1#

main55607-91404-04iVG4#198709-199701

DARK BLUE,TRIM8#

main55607-91404-E0iVG4#..E,L199212-199701

SABLE,TRIM4#

55608COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3

main55608-40020-B0iVG4#199212-199701

SHADOW GRAY,TRIM1#

main55608-40020-E0iVG4#..E,L199212-199701

SABLE,TRIM4#

main55608-40020-J0iVG4#199212-199701

DARK BLUE,TRIM8#

main55608-40030-B0iVG45..4HC199212-199701

main55608-40030-E0iVG45..4HC199212-199701

main55608-40030-J0iVG45..4HC199212-199701

main55608-91403-01iVG4#..E,L198709-199212

BLACK,TRIM2#

main55608-91403-02iVG4#..E,L198709-199212

MAROON,TRIM3#

main55608-91403-03iVG4#198709-199212

SHADOW GRAY,TRIM1#

main55608-91403-04iVG4#198709-199212

DARK BLUE,TRIM8#

main55608-91404-01iVG45..4HC199009-199212

main55608-91404-02iVG40..4HC..E198910-199009

main55608-91404-03iVG40..4HC..E198910-199009

main55608-91404-04iVG45..4HC199009-199212

55608CCLIP(FOR INSTRUMENT PANEL UNDER COVER)

main90467-06017-11×5iVG4#..E,L198709-199212

BLACK,TRIM2#

main90467-06017-22×5iVG4#..E,L198709-199212

MAROON,TRIM3#

main90467-06017-53×3iVG45..4HC199302-199701

main90467-06017-54×3iVG45..4HC199302-199701

main90467-06017-58×5iVG45..4HC199302-199701

main90467-06017-B1×5iVG4#199302-199701

SHADOW GRAY,TRIM1#

main90467-06017-E1×5iVG4#..E,L199302-199701

SABLE,TRIM4#

main90467-06017-E2×5iVG4#..E,L199302-199701

SABLE,TRIM4#

main90467-07041-01×2iVG45..4HC199302-199701

main90467-07041-13×2iVG40..D199212-199302

main90467-07041-26×2iVG45..4HC199302-199701

main90467-07041-34×2iVG45..4HC199302-199701

main90467-07041-43×2iVG4#199212-199302

main90467-07041-59×2iVG45..4HC199212-199302

main90467-07041-B4×2iVG45..4HC199212-199302

main90467-07041-E0×2iVG45..4HC199302-199701

main90467-07041-E8×2iVG45..4HC199212-199302

main90467-07041-E9×2iVG45..4HC199212-199302

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-40010iVG4#198709-199701

8715

9010506097

main90105-06097

9011906005

main90119-06005

9015250040

main90152-50040

9015950070

main90159-50070

9015950163

main90159-50163

9015960419

main90159-60419

9017906036

main90179-06036

9018304083

main90183-04083

9018305006

main90183-05006

9018305094

main90183-05094

9018905010

main90189-05010

9018905016

main90189-05016

9048015172

main90480-15172

9165640616

main91656-40616

9338616025

main93386-16025

9352055016

main93520-55016

9354015014

main93540-15014

9354054014

main93540-54014

9354055016

main93540-55016

9356014010

main93560-14010

9356055014

main93560-55014

9356755016

main93567-55016

9411040600

main94110-40600

60 parts on this diagram · 1 diagram in section
