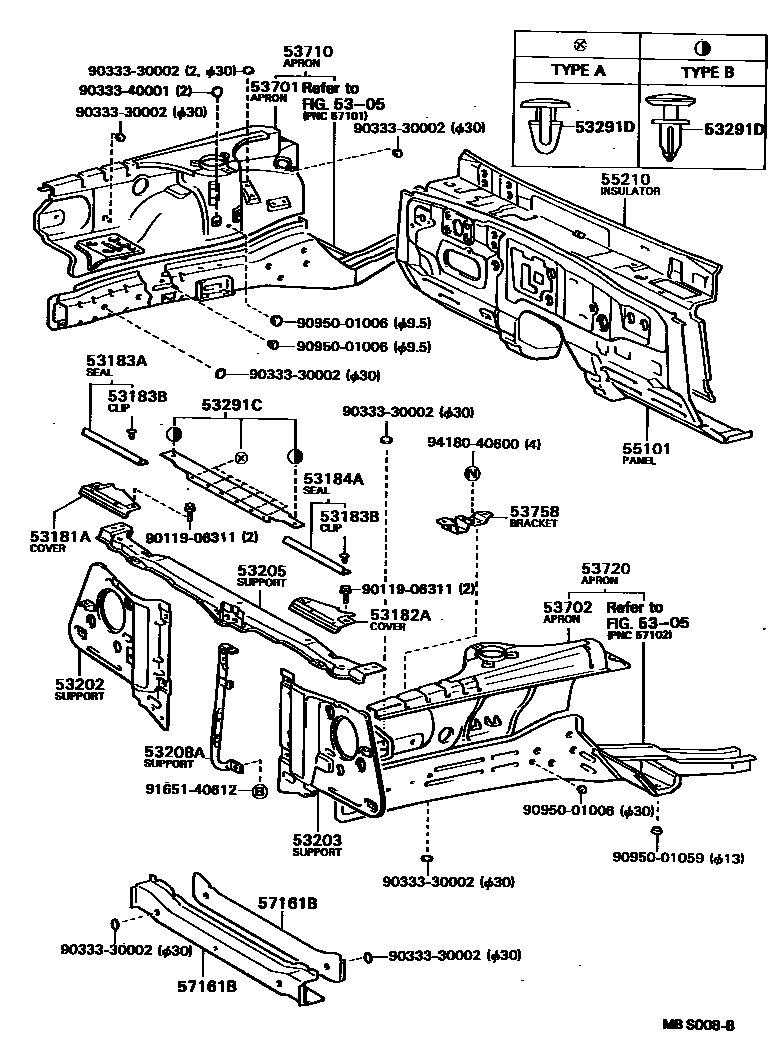

FRONT FENDER APRON & DASH PANEL
5305FLOOR SIDE MEMBER
53181ACOVER, HEADLAMP, RH
53182ACOVER, HEADLAMP, LH
53183ASEAL, HEADLAMP COVER, RH
53183BCLIP(FOR HEADLAMP COVER SEAL)
53184ASEAL, HEADLAMP COVER, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53291CSEAL, RADIATOR SUPPORT TO FRAME
53291DCLIP, RADIATOR SUPPORT TO FRAME
SIDE(TYPE B)
CENTER(TYPE A)
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53710APRON ASSY, W/FRONT SIDE MEMBER, RH
53720APRON ASSY, W/FRONT SIDE MEMBER, LH
53758BRACKET, IGNITION COIL MOUNTING
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
57161BMEMBER, FRONT CROSS, FRONT
9011906311
main90119-06311
9033330002
main90333-30002
9033340001
main90333-40001
9095001006
main90950-01006
9095001059
main90950-01059
9165140612
main91651-40612
9418040600
main94180-40600
27 parts on this diagram · 1 diagram in section
