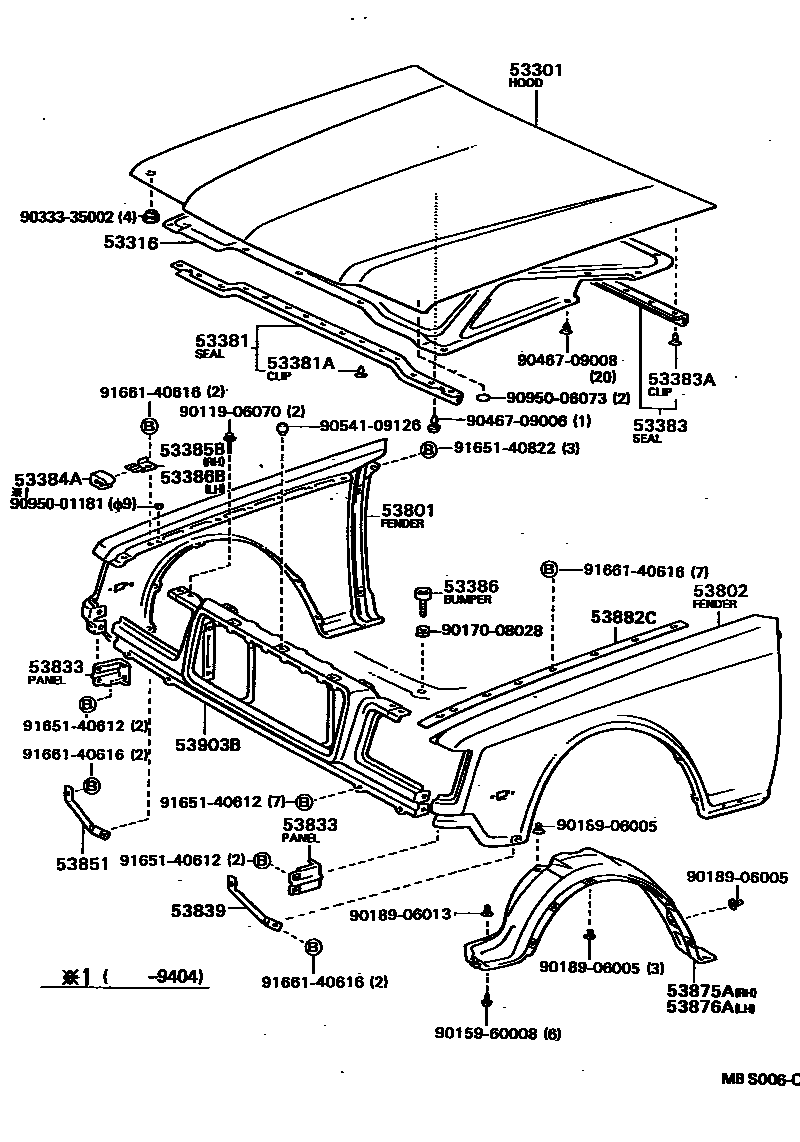

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53316SILENCER, HOOD
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53833PANEL, FRONT FENDER SIDE, LOWER
53839BRACE, FRONT FENDER, LH
53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882CSEAL, FRONT FENDER MAIN
53903BPANEL SUB-ASSY, FRONT END
9011906070
main90119-06070
9015960008
main90159-60008
9017008028
main90170-08028
9018906005
main90189-06005
9018906013
main90189-06013
9033335002
main90333-35002
9046709006
main90467-09006
9046709008
main90467-09008
9054109126
main90541-09126
9095006073
main90950-06073
9165140612
main91651-40612
9165140822
main91651-40822
9166140616
main91661-40616
9195001181
main91950-01181
33 parts on this diagram · 1 diagram in section
