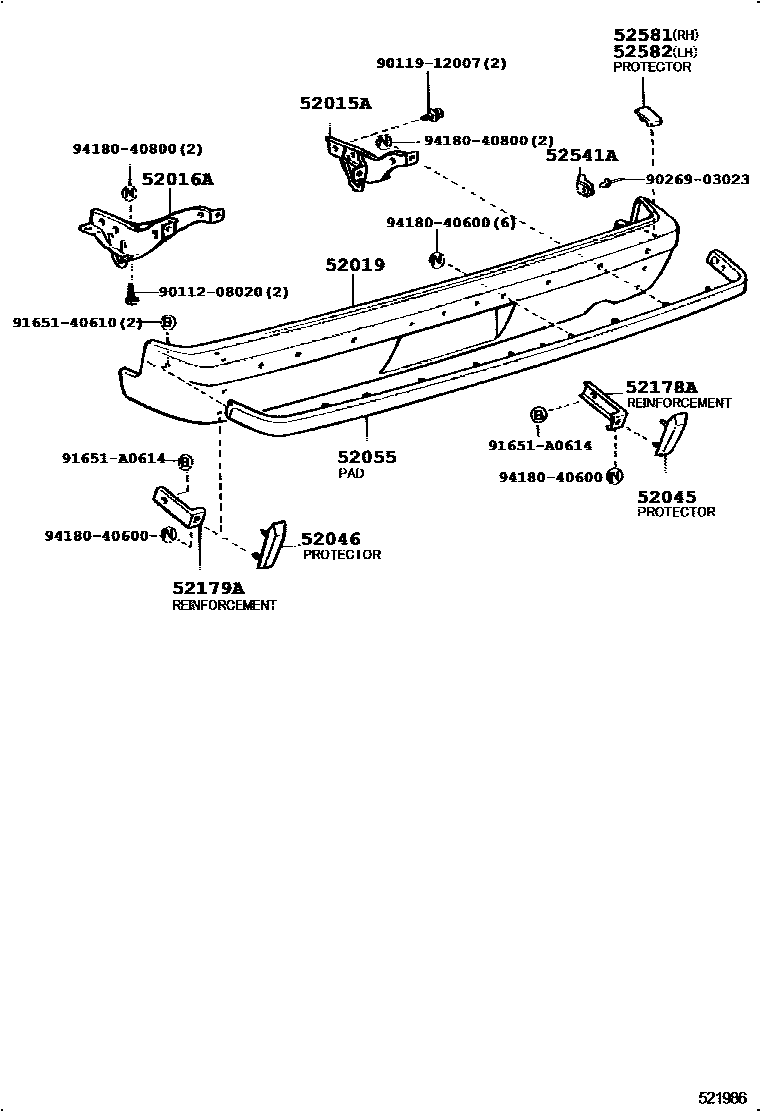

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-91402iVG4#198709-199701

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-91401iVG4#198709-199701

52019BAR SUB-ASSY, REAR BUMPER

main52019-91401iVG4#198709-199701

52045PROTECTOR SUB-ASSY, REAR BUMPER, RH

main52045-91401iVG4#198709-199701

52046PROTECTOR SUB-ASSY, REAR BUMPER, LH

main52046-91401iVG4#198709-199701

52055PAD SUB-ASSY, REAR BUMPER

main52055-91401iVG4#198709-199701

52178AREINFORCEMENT, REAR BUMPER BAR CORNER, RH

main52178-91402iVG4#198709-199701

52179AREINFORCEMENT, REAR BUMPER BAR CORNER, LH

main52178-91402iVG4#198709-199701

52541APROTECTOR, REAR BUMPER

main52541-30011iVG4#198709-199701

52581PROTECTOR, REAR BUMPER, RH

main52581-91401iVG4#198709-199701

52582PROTECTOR, REAR BUMPER, LH

main52582-91401iVG4#198709-199701

9011208020

main90112-08020

9011912007

main90119-12007

9026903023

main90269-03023

9165140610

main91651-40610

91651A0614

main91651-A0614

9418040600

main94180-40600

9418040800

main94180-40800

18 parts on this diagram · 1 diagram in section
