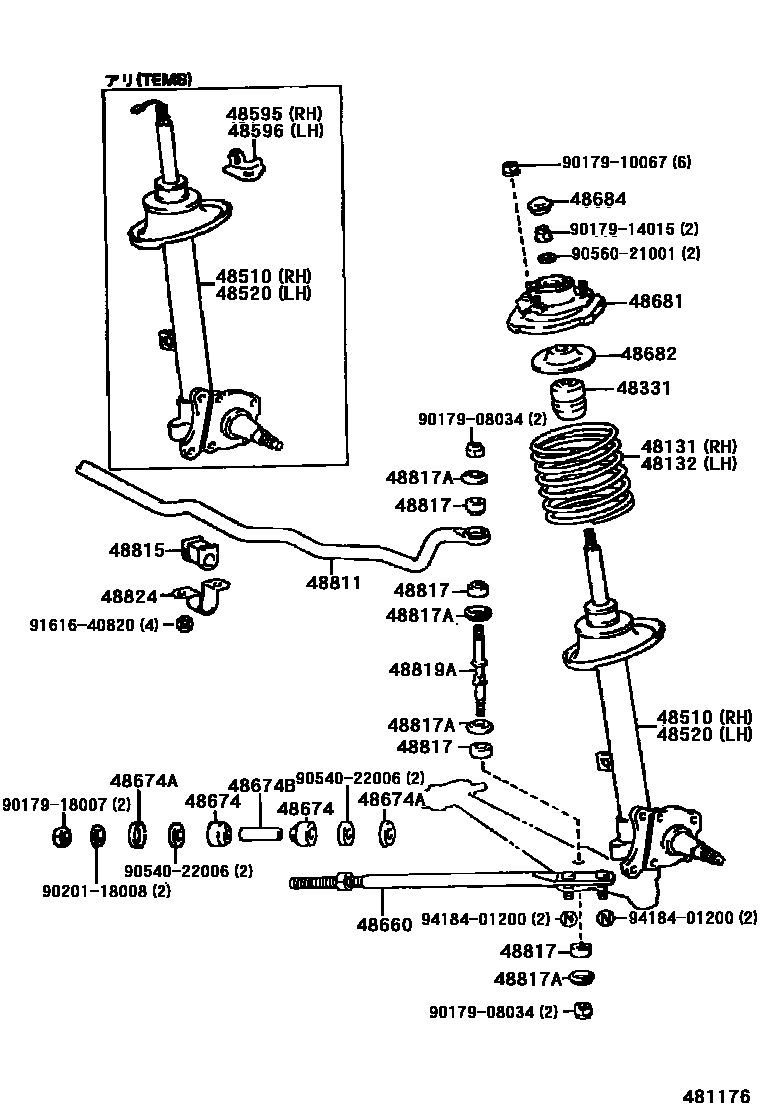

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-40031iVG40198709-199701

main48131-40150iVG40..4HC..E198910-199009

main48131-40151iVG45..4HC199009-199701

main48131-40170iVG45199009-199701

48132SPRING, FRONT COIL, LH

main48131-40041iVG40198709-199701

main48131-40160iVG40..4HC..E198910-199009

main48131-40161iVG45..4HC199009-199701

main48131-40180iVG45199009-199701

48331BUMPER, FRONT SPRING, NO.1

main48331-40020×2iVG4#198709-199701

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-40041iVG40..D198709-198808

main48510-40042iVG40..D198808-199009

main48510-40051iVG40..E198709-198808

main48510-40052iVG40..E198808-199009

main48510-40060iVG40..D199009-199701

main48510-40070iVG45..4HC199009-199701

main48510-40081iVG40..D199009-199701

main48510-40091iVG4#..E,L199009-199212

main48510-40110iVG4#..E,L199212-199701

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-40041iVG40..D198709-198808

main48520-40042iVG40..D198808-199009

main48520-40051iVG40..E198709-198808

main48520-40052iVG40..E198808-199009

main48520-40060iVG40..D199009-199701

main48520-40070iVG40..E198910-199009

main48520-40081iVG40..D199009-199701

main48520-40091iVG4#..E,L199009-199212

main48520-40110iVG4#..E,L199212-199701

48595CLAMP, ACTUATOR HARNESS, RH

main48595-40010iVG40..E198709-198804

main48595-40011iVG4#..E,L198804-199701

48596CLAMP, ACTUATOR HARNESS, LH

main48596-40010iVG4#..E,L198709-199701

48660BAR ASSY, STRUT, RH

main48660-40010×2iVG4#198709-199701

48674CUSHION, STRUT BAR

main48674-40030×4iVG4#198709-199212

main48674-40040×2iVG4#199212-199701

main48674-50030×2iVG45..4HC199212-199701

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02112×4iVG4#198709-199212

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18013×2iVG4#198709-199212

48681SUPPORT, FRONT SUSPENSION, NO.1

main48681-40030×2iVG4#198709-199701

48682SUPPORT, FRONT SUSPENSION, NO.2

main48682-40030×2iVG40198709-198808

main48682-40031×2iVG4#198808-199701

48684COVER, BEARING DUST

main48684-14020×2iVG40..D198709-199701

main48684-40030×2iVG4#..E,L198709-199701

48811BAR, STABILIZER, FRONT

main48811-40040iVG40198709-199009

main48811-40050iVG40..4HC..E198910-199009

main48811-40060iVG45..4HC199009-199701

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30100×2iVG4#..E,L199009-199701

main48815-40020×2iVG40..D199009-199701

main48815-40050×2iVG45..4HC199009-199701

sub48815-60060

48817CUSHION, FRONT STABILIZER

main48817-30020×8iVG4#198709-199701

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032×8iVG4#198709-199701

48819ABOLT, FRONT STABILIZER

main48819-30020×2iVG4#198709-199701

48824BRACKET, STABILIZER, FRONT

main48824-30050×2iVG4#198709-199701

9017908034

main90179-08034

9017910067

main90179-10067

9017914015

main90179-14015

9017918007

main90179-18007

9020118008

main90201-18008

9054022006

main90540-22006

9056021001

main90560-21001

9161640820

main91616-40820

9418401200

main94184-01200

29 parts on this diagram · 2 diagrams in section
