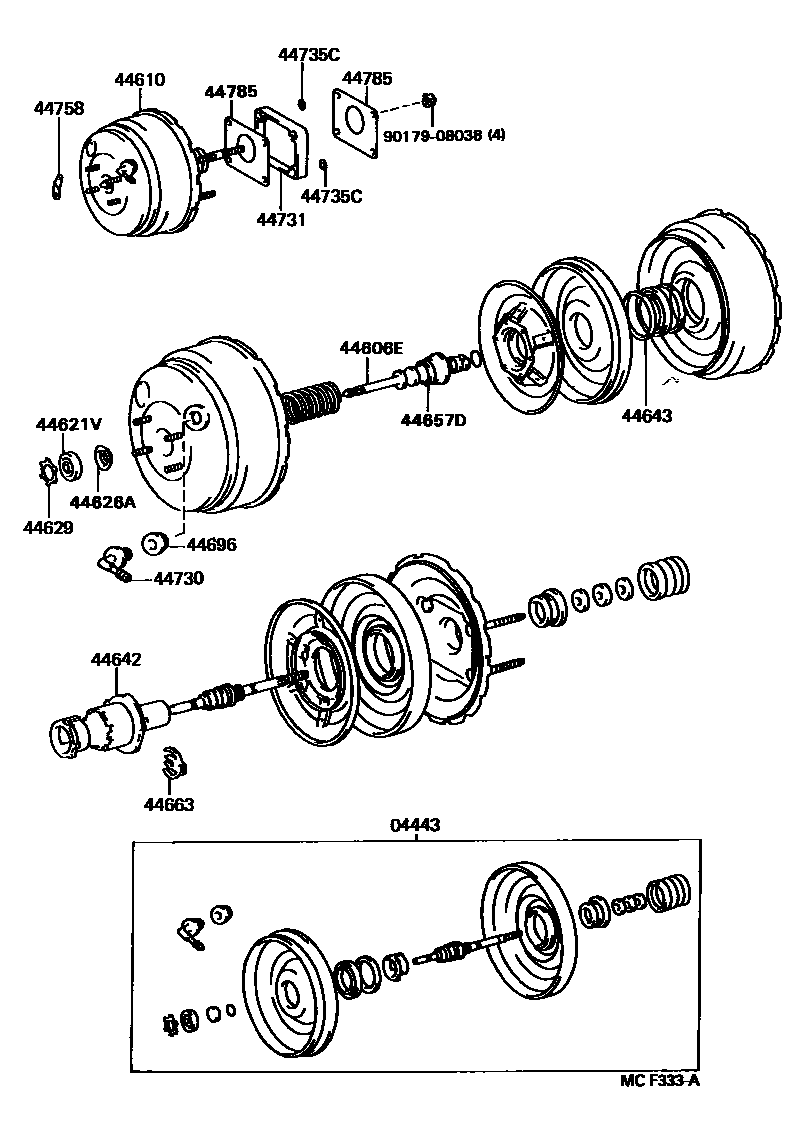

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-40050iVG40198709-198905

main04443-40060iVG4#198905-199212

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-20800iVG4#198709-199212

44610BOOSTER ASSY, BRAKE

main44610-40080iVG40198709-198905

main44610-40081iVG40198905-199009

main44610-40090iVG4#199009-199212

main44610-40091iVG4#199212-199701

44621VSEAL, BOOSTER BODY

main44621-14030iVG4#198709-199212

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010iVG4#198709-199212

44629RING, CIRCULAR INTERNAL

main44628-60010iVG4#198709-199212

44642PISTON, BRAKE BOOSTER

main44642-20800iVG4#198709-199212

44643RETAINER, DIAPHRAGM

main44643-20800iVG4#198709-199212

44657DCASE, REACTION DISC

main44657-30560iVG4#198709-199212

44663KEY, VALVE STOPPER

main44635-20800iVG4#198709-199212

44696GROMMET, CHECK VALVE

main90480-24439iVG4#198709-199201

main90480-24517iVG4#199201-199701

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iVG4#198709-199201

main44730-14060iVG4#199201-199701

sub44730-28010

sub90480-24015

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-30060iVG40198709-199009

main44731-40010iVG4#199009-199701

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010×2iVG4#198709-199701

44758BRACKET, VACUUM CHECK VALVE

main44758-30100iVG4#198709-199701

44785GASKET, BRAKE BOOSTER

main44785-30020×2iVG4#198709-199701

9017908038

main90179-08038

17 parts on this diagram · 3 diagrams in section
