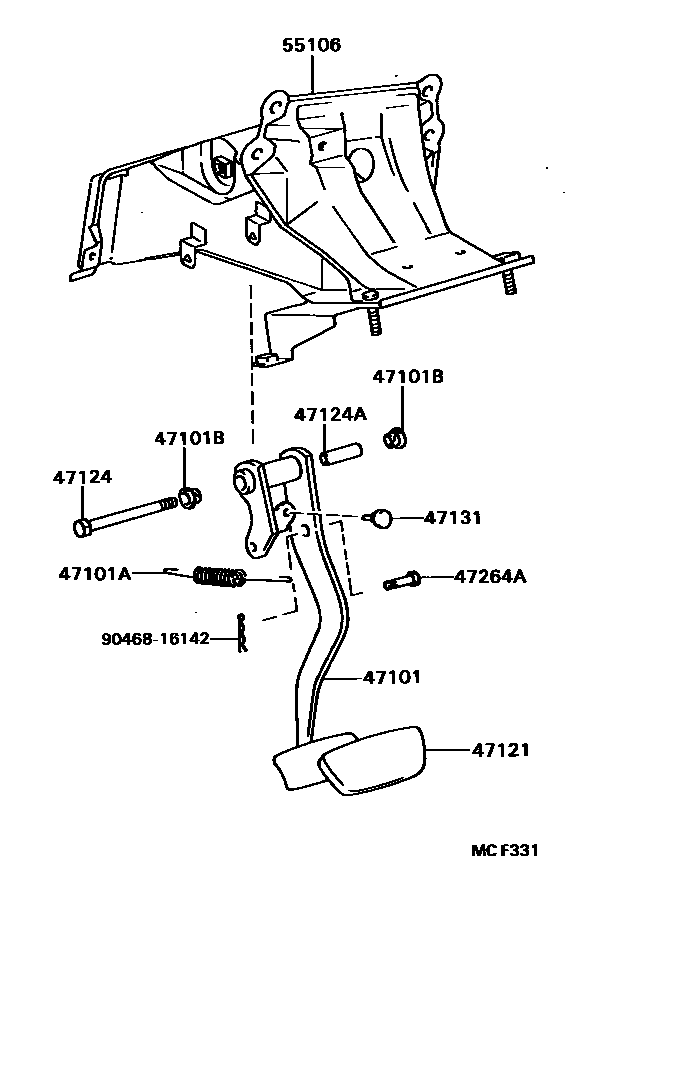

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-40040iVG4#198709-199701

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-12484iVG4#198709-199701

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iVG4#198709-199701

47121PAD, BRAKE PEDAL

main47121-30050iVG4#198709-199701

47124SHAFT, BRAKE PEDAL

main90101-10480iVG4#198709-199701

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10128iVG4#198709-199701

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iVG40198709-199005

main90541-06036iVG4#199005-199701

47264APIN(FOR PUSH ROD)

main90249-10064iVG4#198709-199701

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-40010iVG4#199212-199701

main55106-91403iVG4#198709-199212

sub55106-40010

9046816142

main90468-16142

10 parts on this diagram · 1 diagram in section
