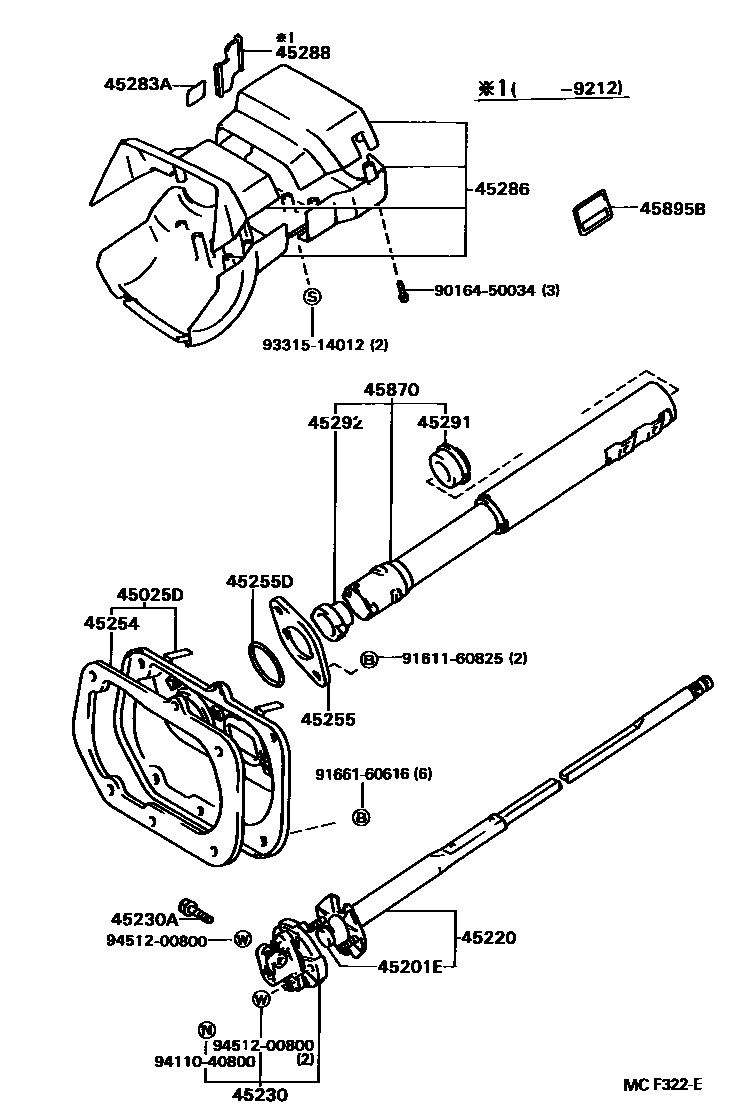

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201EPLUG, PLATE(FOR STEERING MAIN SHAFT)
45220SHAFT ASSY, STEERING INTERMEDIATE
45230COUPLING ASSY, FLEXIBLE
45230ABOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET)
45254SHIELD, STEERING COLUMN HOLE
45255PLATE, STEERING COLUMN HOLE COVER
45255DRING, O(FOR STEERING COLUMN HOLE COVER PLATE)
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286COVER, STEERING COLUMN
45288PLATE, STEERING COLUMN COVER
45291SEAL, MAIN SHAFT UPPER DUST
45292SEAL, MAIN SHAFT LOWER DUST
sub45292-22040
45870TUBE ASSY, STEERING COLUMN
45895BPLATE, TILT LEVER INSTRUCTION
9016450034
main90164-50034
9161160825
main91611-60825
9166160616
main91661-60616
9331514012
main93315-14012
9411040800
main94110-40800
9451200800
main94512-00800
21 parts on this diagram · 3 diagrams in section
