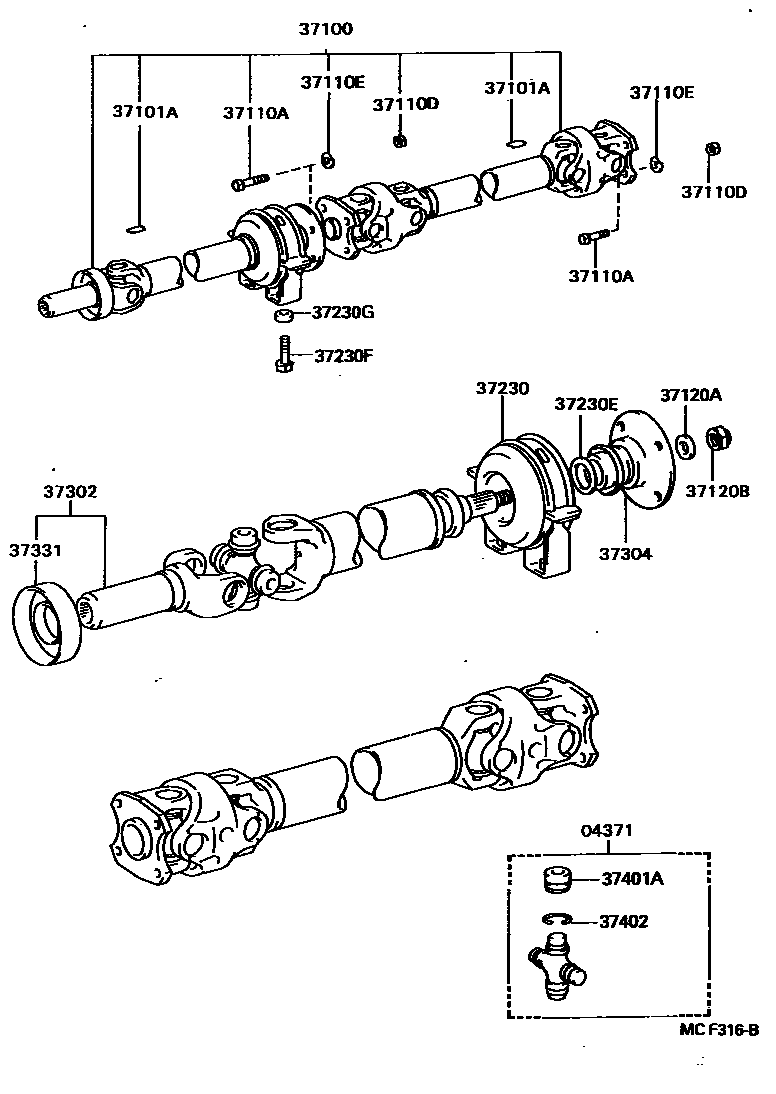

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
sub90937-01132
sub90937-01147
sub90937-01148
sub90937-01149
sub90937-01150
sub90937-01151
sub90937-01152
37110ABOLT (FOR PROPELLER SHAFT)
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
sub90560-10H00
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
17 parts on this diagram · 1 diagram in section
