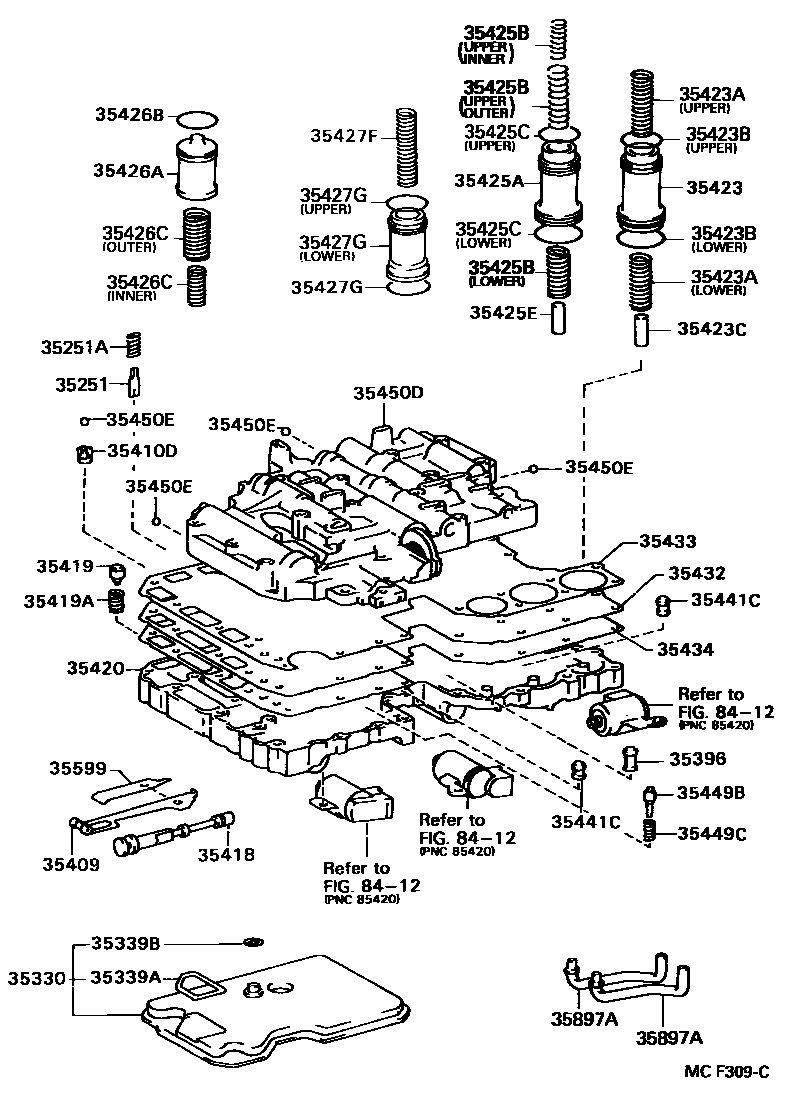

VALVE BODY & OIL STRAINER (ATM)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35330STRAINER ASSY, VALVE BODY OIL
35339AGASKET, OIL STRAINER, NO.1
35339BGASKET, OIL STRAINER, NO.2
35396STRAINER, THROTTLE OIL
35409SPRING SUB-ASSY, MANUAL DETENT
35410BODY ASSY, TRANSMISSION VALVE
35410DVALVE, CHECK
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420BODY ASSY, LOWER VALVE
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
UPPER
UPPER
LOWER
LOWER
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPPER
35423CPIN, STRAIGHT (FOR B-2 ACCUMULATOR PISTON)
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
UPPER,INNER
UPPER,OUTER
UPPER,INNER
UPPER,OUTER
LOWER
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35425EPIN, STRAIGHT (FOR C-2 ACCUMULATOR PISTON)
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
sub90301-24010
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427GRING, O (FOR B-0 ACCUMULATOR PISTON)
UPPER
35432PLATE, VALVE BODY, NO.1
35441CSTRAINER, SOLENOID OIL
LWR VALVE BODY
UPR VALVE BODY
UPR VALVE BODY
35449BVALVE, PRESSURE RELIEF
35449CSPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)
35450DBODY ASSY, UPPER VALVE
35450EBALL (FOR UPPER VALVE BODY)
35599COVER, MANUAL DETENT SPRING
35897ATUBE, 1ST & REVERSE BRAKE, NO.1
8412
37 parts on this diagram · 8 diagrams in section
