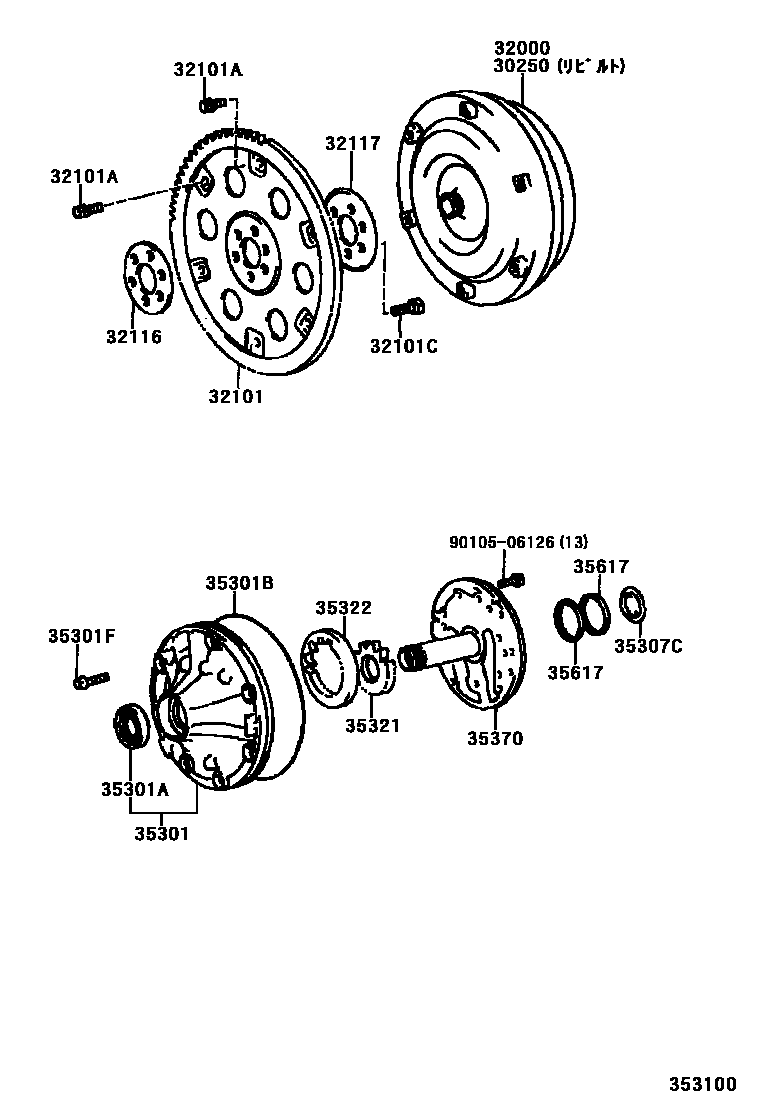

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-40060iVG40198709-199009

main30250-40070iVG4#199009-199212

main30250-40080iVG4#199212-199701

32000CONVERTER ASSY, TORQUE

main32000-40060iVG40198709-199009

main32000-40070iVG4#199009-199212

main32000-40080iVG4#199212-199701

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-40030iVG4#198709-199701

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-08269×6iVG4#198709-199701

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12030×6iVG4#198709-199701

32116SPACER, DRIVE PLATE, FRONT

main32116-40010iVG4#198709-199701

32117SPACER, DRIVE PLATE, REAR

main32117-40010iVG4#198709-199701

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-35010iVG4#198709-199701

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38029iVG4#198709-199701

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iVG4#198709-199701

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×7iVG4#198709-199701

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30020iVG4#198709-199701

sub35789-30340

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iVG4#198712-199511

main35321-12030iVG40198802-198909

main35321-12040iVG4#199511-199701

main35321-12050iVG40198802-198909

main35321-12060iVG40198802-198909

main35321-35010iVG40198709-198712

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iVG4#198909-199511

main35322-12020iVG4#199511-199701

main35322-12030iVG4#199511-199701

main35322-12040iVG4#199511-199701

main35322-12050iVG4#199511-199701

main35322-35010iVG40198709-198909

35370SHAFT ASSY, STATOR

main35370-40010iVG40198709-198909

main35370-50010iVG4#198909-199701

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020×2iVG4#198709-199701

9010506126

main90105-06126

17 parts on this diagram · 1 diagram in section
