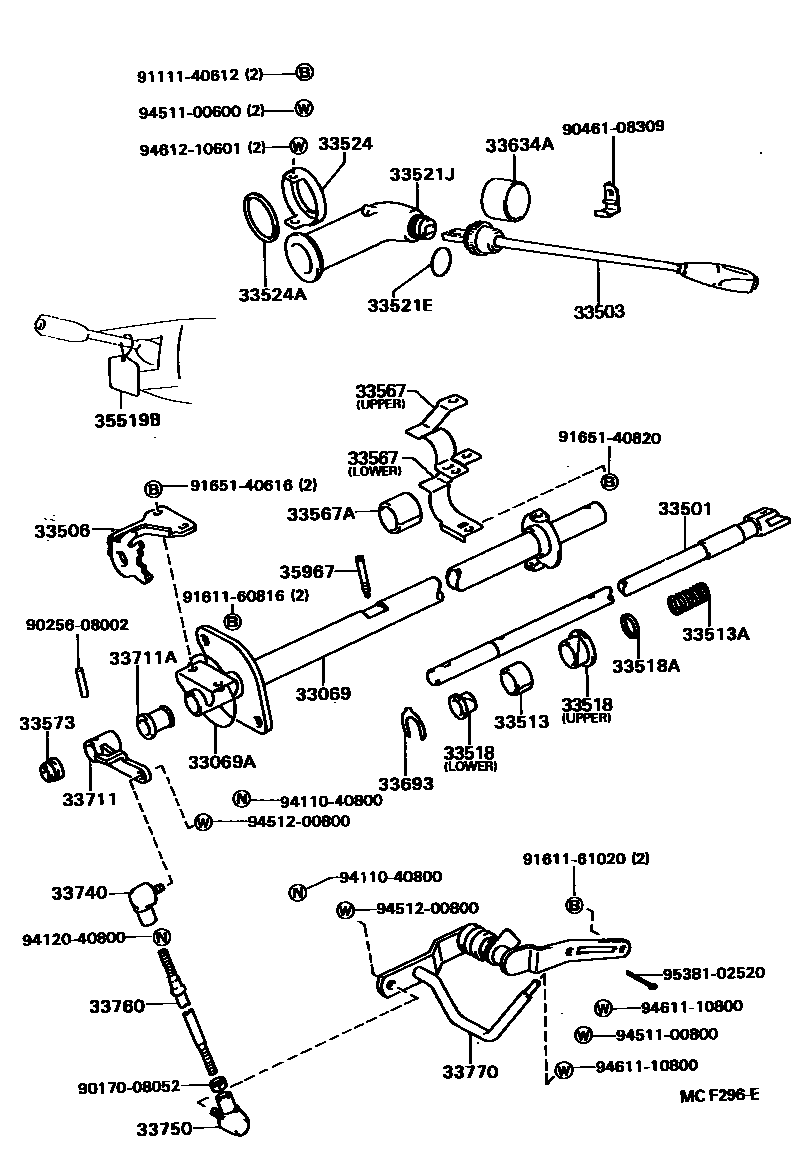

CONTROL SHAFT & CROSSSHAFT
33069TUBE SUB-ASSY, CONTROL SHAFT(FOR COLUMN SHIFT)
33069ARING, O(FOR CONTROL SHAFT TUBE)
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33503LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT)
33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33518BUSH, UPPER CONTROL SHAFT PIECE
UPPER
LOWER
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33521ERING, O (FOR SHIFT LEVER HOUSING)
33521JHOUSING, SHIFT LEVER (FOR COLUMN SHIFT)
33524BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR COLUMN SHIFT)
33524AWASHER, PLATE (FOR CONTROL LEVER HOUSING)
33567CLAMP, CONTROL SHAFT TUBE
UPPER
LOWER
33567AGROMMET (FOR CONTROL SHAFT TUBE)
33573COVER, CONTROL SHAFT DUST, LOWER
33634APROTECTOR, WIRE
33693SHIM, SHIFT LEVER ADJUSTING (FOR COLUMN SHIFT)
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33711ABUSH (FOR CONTROL SHAFT LEVER)
33740END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33750END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)
33760ROD ASSY, CONNECTING, NO.1
33770SHAFT ASSY, CROSS (FOR COLUMN SHIFT)
35519BLABEL, AUTOMATIC TRANS INFORMATION (FOR COLUM SHIFT)
35967PIN, INDICATOR SWITCH
9017008052
main90170-08052
9025608002
main90256-08002
9046108309
main90461-08309
9111140612
main91111-40612
9161160816
main91611-60816
9161161020
main91611-61020
9165140616
main91651-40616
9165140820
main91651-40820
9411040800
main94110-40800
9412040800
main94120-40800
9451100600
main94511-00600
9451100800
main94511-00800
9451200800
main94512-00800
9461110800
main94611-10800
9461210601
main94612-10601
9538102520
main95381-02520
42 parts on this diagram · 2 diagrams in section
