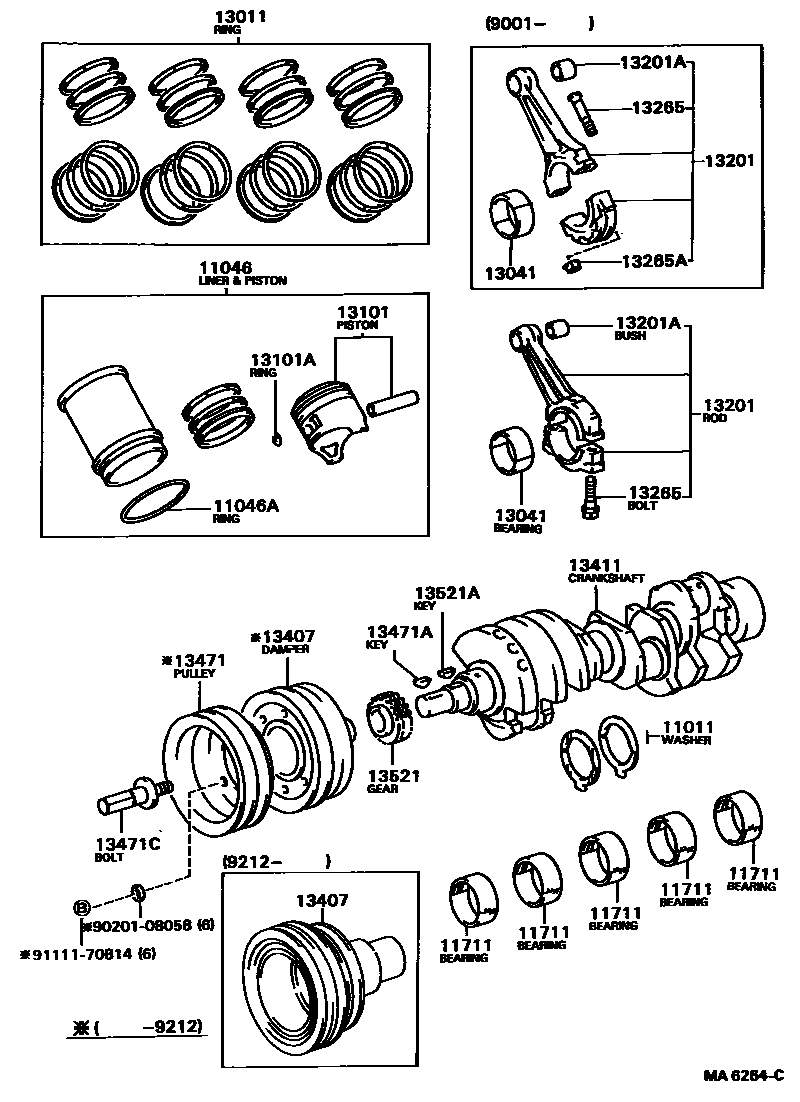

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-43010i5VEU..VG4#198709-199701

main11012-43010i5VEU..VG4#198709-199701

main11013-43010i5VEU..VG4#198709-199701

11046CYLINDER LINER & PISTON SET

main11046-59045-01×8i5VEU..VG4#198709-199701

MARK 1

main11046-59045-02×8i5VEU..VG4#198709-199701

MARK 2

main11046-59045-03×8i5VEU..VG4#198709-199701

MARK 3

main11046-59045-04×8i5VEU..VG4#198709-199701

MARK 4

11046ARING, O(FOR CYLINDER LINER & PISTON SET)

main90301-87001×8i5VEU..VG4#198709-199701

11711BEARING, CRANKSHAFT

main11701-52020-03i5VEU..VG4#198709-199701

MARK 3

main11701-52020-04i5VEU..VG4#198709-199701

MARK 4

main11701-52020-05i5VEU..VG4#198709-199701

MARK 5

main11701-52020-06i5VEU..VG4#198709-199701

MARK 6

main11701-52020-07i5VEU..VG4#198709-199701

MARK 7

13011RING SET, PISTON

main13011-52030i5VEU..VG4#198709-199701

13041BEARING, CONNECTING ROD

main13041-52020-00i5VEU..VG4#198709-199701

MARK 0

main13041-52020-01i5VEU..VG4#198709-199701

MARK 1

main13041-52020-02i5VEU..VG4#198709-199701

MARK 2

main13041-52020-03i5VEU..VG4#198709-199701

MARK 3

main13041-52020-0Ai5VEU..VG40198709-198810

MARK A

main13041-52020-A0i5VEU..VG4#198810-199701

MARK A

13101PISTON SUB-ASSY, W/PIN

main13101-52020×8i5VEU..VG40198709-198801

main13101-52020-0A×8i5VEU..VG40198801-198810

main13101-52020-0B×8i5VEU..VG40198801-198810

main13101-52020-0C×8i5VEU..VG40198801-198810

main13101-52020-A0×8i5VEU..VG4#198810-199701

main13101-52020-B0×8i5VEU..VG4#198810-199701

main13101-52020-C0×8i5VEU..VG4#198810-199701

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-25052×16i5VEU..VG4#198709-199701

13201ROD SUB-ASSY, CONNECTING

main13201-52011×8i5VEU..VG40198709-199001

main13201-52020×8i5VEU..VG4#199001-199701

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73066×16i5VEU..VG4#198709-199701

13265BOLT, CONNECTING ROD

main13265-52010×16i5VEU..VG4#199001-199701

main90910-02044×16i5VEU..VG40198709-199001

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-09006×16i5VEU..VG4#199001-199701

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-52010i5VEU..VG4#198709-199212

main13407-52011i5VEU..VG4#199212-199701

main13407-52040i5VEU..VG45..4HC199212-199701

13411CRANKSHAFT

main13411-52020i5VEU..VG4#198709-199701

13471PULLEY, CRANKSHAFT

main13471-52010i5VEU..VG4#198709-199212

main13471-52020i5VEU..VG40..4HC..E198910-199009

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05010i5VEU..VG4#198709-199701

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16010i5VEU..VG4#198709-199701

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-41011i5VEU..VG4#198709-199701

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i5VEU..VG4#198709-199701

9020108058

main90201-08058

9111170814

main91111-70814

21 parts on this diagram · 1 diagram in section
