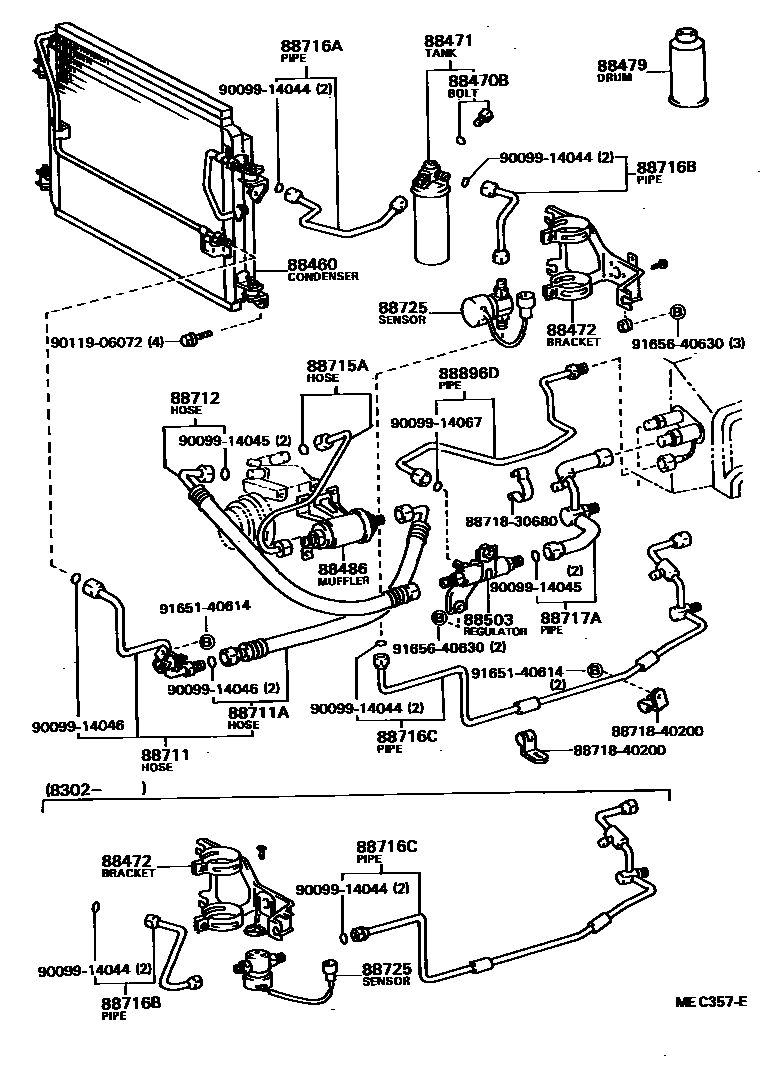

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88460CONDENSER ASSY, COOLER

main88460-40040iVG40198210-198709

88470BBOLT, FUSE

main88475-12020iVG40198210-198709

88471TANK, RECEIVER AIR CONDITIONER

main88471-40070iVG40198210-198709

88472BRACKET, RECEIVER TANK, NO.1

main88472-40060iVG40198210-198302

sub88472-40061

main88472-40061iVG40198302-198709

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iVG40198210-198709

sub90986-02004

sub90986-02005

88486MUFFLER, DISCHARGE

main88486-40010iVG40198210-198709

88503REGULATOR ASSY, PRESSURE

main88503-40010iVG40198210-198709

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88710-40041iVG40198210-198709

88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2

main88711-40081iVG40198210-198709

sub88711-40150

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-40070iVG40198210-198709

sub88712-40100

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-40060iVG40198210-198709

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-40250iVG40198210-198709

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-40280iVG40198210-198302

main88716-40281iVG40198302-198709

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-40260iVG40198210-198302

sub88716-40261

main88716-40261iVG40198302-198703

sub88716-40262

main88716-40262iVG40198703-198709

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-40130iVG40198210-198709

88725SENSOR, REFRIGERANT

main88725-40010iVG40198210-198709

sub88725-40011

88896DPIPE, EQUALIZER

main88896-40040iVG40198210-198709

8871830680PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30680

8871840200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-40200

9009914044

main90099-14044

9009914045

main90099-14045

9009914046

main90099-14046

9009914067

main90099-14067

9011906072

main90119-06072

9165140614

main91651-40614

9165640630

main91656-40630

26 parts on this diagram · 2 diagrams in section
