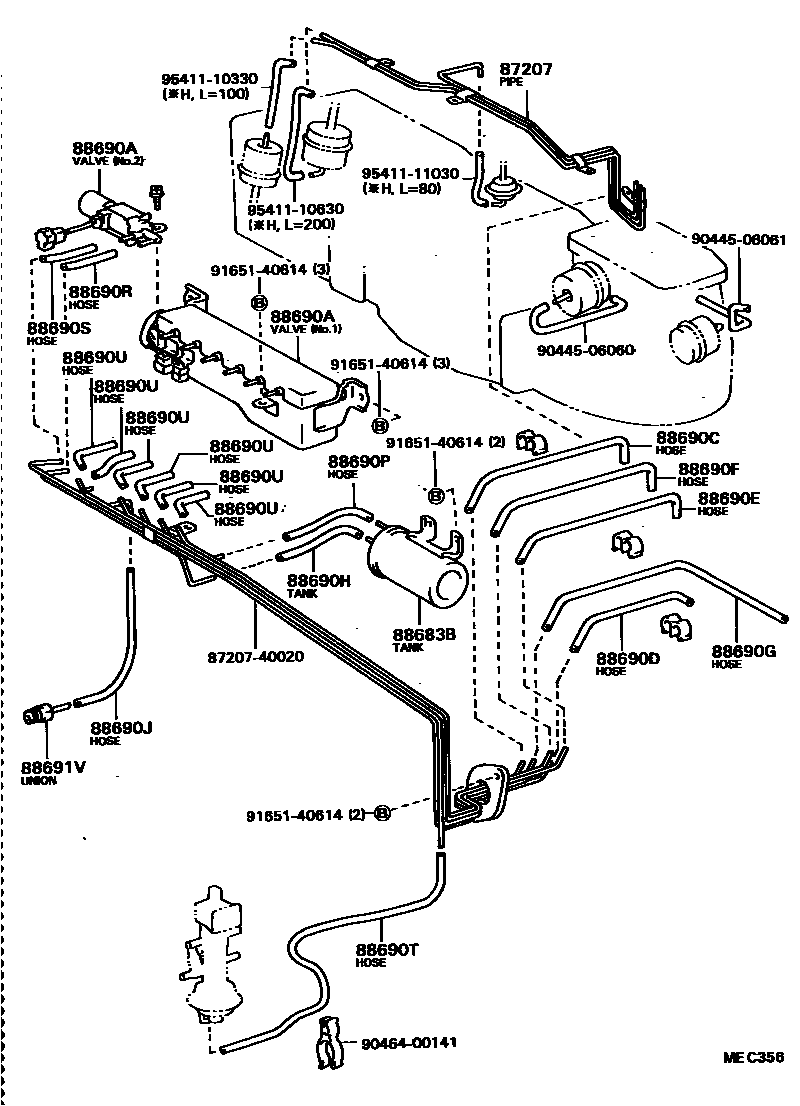

HEATING & AIR CONDITIONING - VACUUM PIPING

87207PIPE SUB-ASSY, VACUUM

main87207-40010iVG40198210-198709

88683BTANK, VACUUM

main88683-40040iVG40198210-198709

88690AVALVE ASSY, COMBINATION

main88691-40040iVG40198210-198709

NO.1

main88691-89102iVG40198210-198709

NO.2

sub88691-22040

88690CHOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)

main90445-06059iVG40198210-198709

88690DHOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)

main90445-06062iVG40198210-198709

88690EHOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER)

main90445-06063iVG40198210-198709

sub90445-06037

88690FHOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER)

main90445-06064iVG40198210-198709

88690GHOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)

main90445-06065iVG40198210-198709

88690HHOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER)

main95411-10130iVG40198210-198709

sub90999-92002

88690JHOSE, VACUUM, NO.7 (FOR HEATER OR AIR CONDITIONER)

main95411-10130iVG40198210-198709

sub90999-92002

88690PHOSE, VACUUM, NO.8 (FOR HEATER OR AIR CONDITIONER)

main95411-10230iVG40198210-198709

sub90999-92002

88690RHOSE, VACUUM, NO.9 (FOR HEATER OR AIR CONDITIONER)

main95411-10230iVG40198210-198709

sub90999-92002

88690SHOSE, VACUUM, NO.10 (FOR HEATER OR AIR CONDITIONER)

main95411-10430iVG40198210-198709

*H,L=40

sub90999-92002

88690THOSE, VACUUM, NO.11 (FOR HEATER OR AIR CONDITIONER)

main95411-10960iVG40198210-198709

*H,L=450

sub90999-92003

88690UHOSE, VACUUM, NO.12 (FOR HEATER OR AIR CONDITIONER)

main95411-19930×6iVG40198210-198709

sub90999-92002

88691VUNION (FOR VACUUM PIPE)

main90404-51010iVG40198610-198709

main90404-51093iVG40198210-198610

8720740020PIPE SUB-ASSY, VACUUM

main87207-40020

9044506060

main90445-06060

9044506061

main90445-06061

9046400141

main90464-00141

9165140614

main91651-40614

9541110330

main95411-10330

9541110630

main95411-10630

9541111030

main95411-11030

24 parts on this diagram · 1 diagram in section
