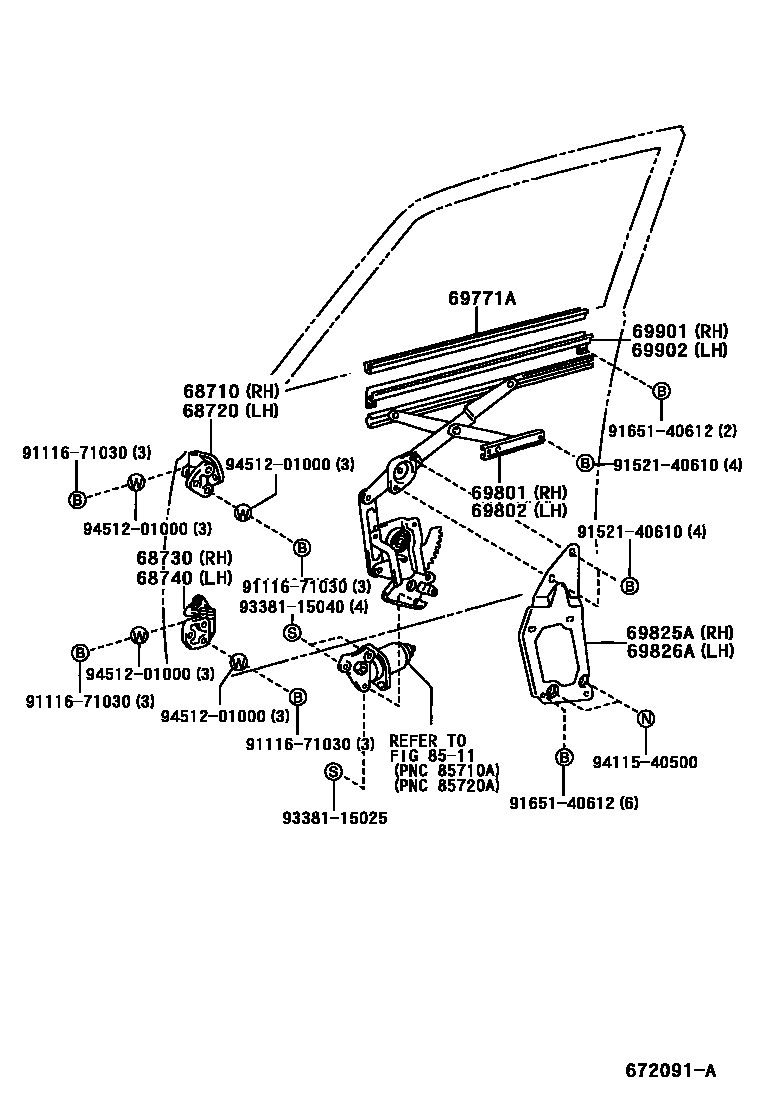

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-40050iVG40198210-198709

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-40050iVG40198210-198709

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-40030iVG40198210-198709

sub68730-40031

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-40030iVG40198210-198709

sub68740-40031

69771AROD, BACK DOOR LOWER LOCK CONTROL, NO.1

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-40041iVG40198210-198709

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-40041iVG40198210-198709

69825AREINFORCEMENT, FRONT DOOR REGULATOR, RH

69826AREINFORCEMENT, FRONT DOOR REGULATOR, LH

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69905-91401iVG40198210-198709

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69905-91401iVG40198210-198709

8511

9111671030

main91116-71030

9152140610

main91521-40610

9165140612

main91651-40612

9338115025

main93381-15025

9338115040

main93381-15040

9411540500

main94115-40500

9451201000

main94512-01000

19 parts on this diagram · 1 diagram in section
