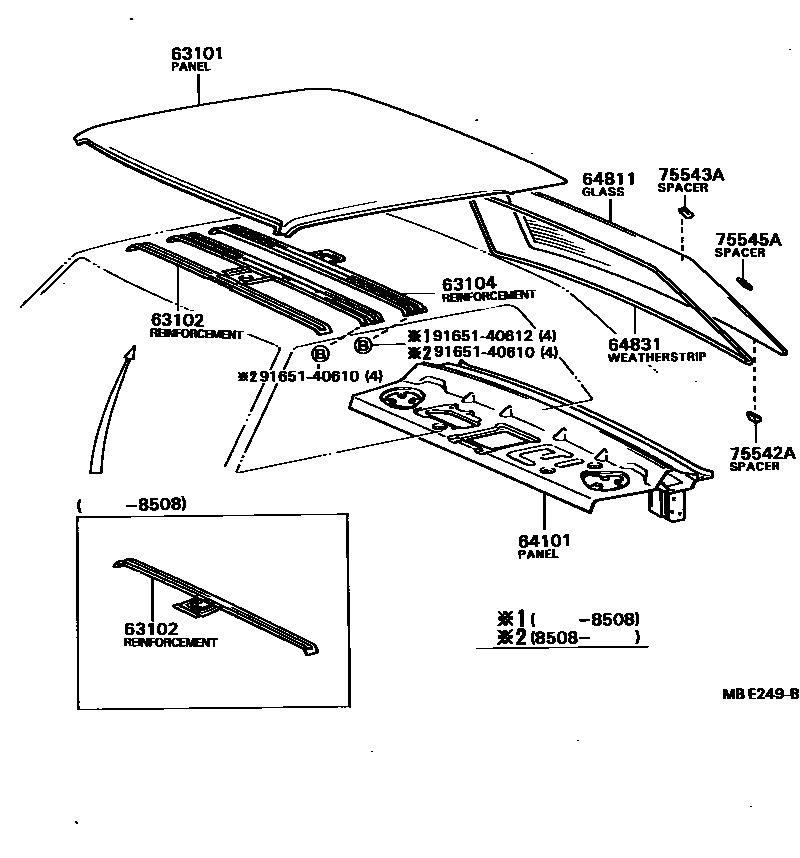

ROOF PANEL & BACK WINDOW GLASS

63101PANEL SUB-ASSY, ROOF

main63101-91412iVG40198210-198508

main63101-91414iVG40198508-198709

sub63101-91416

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-91403iVG40198508-198709

main63108-91401iVG40198210-198508

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-91408iVG40..E198210-198508

main63103-91410iVG40..E198508-198709

64101PANEL SUB-ASSY, UPPER BACK

main64101-91402iVG40198210-198508

main64101-91404iVG40198508-198709

64811GLASS, BACK WINDOW

main64801-91401iVG40..D198210-198709

main64801-91402iVG40..E198210-198709

main64801-91403iVG40..E198210-198709

64831WEATHERSTRIP, BACK WINDOW GLASS

main56102-91401iVG40198210-198709

75542ASPACER, STEP RUBBER BACK WINDOW GLASS

main75542-91405×2iVG40198210-198709

75543ASPACER, FLAT RUBBER BACK WINDOW GLASS

main75543-91402×2iVG40198210-198709

75545ASPACER, BACK WINDOW GLASS

main75545-91401×10iVG40198210-198709

9165140610

main91651-40610

9165140612

main91651-40612

11 parts on this diagram · 1 diagram in section
