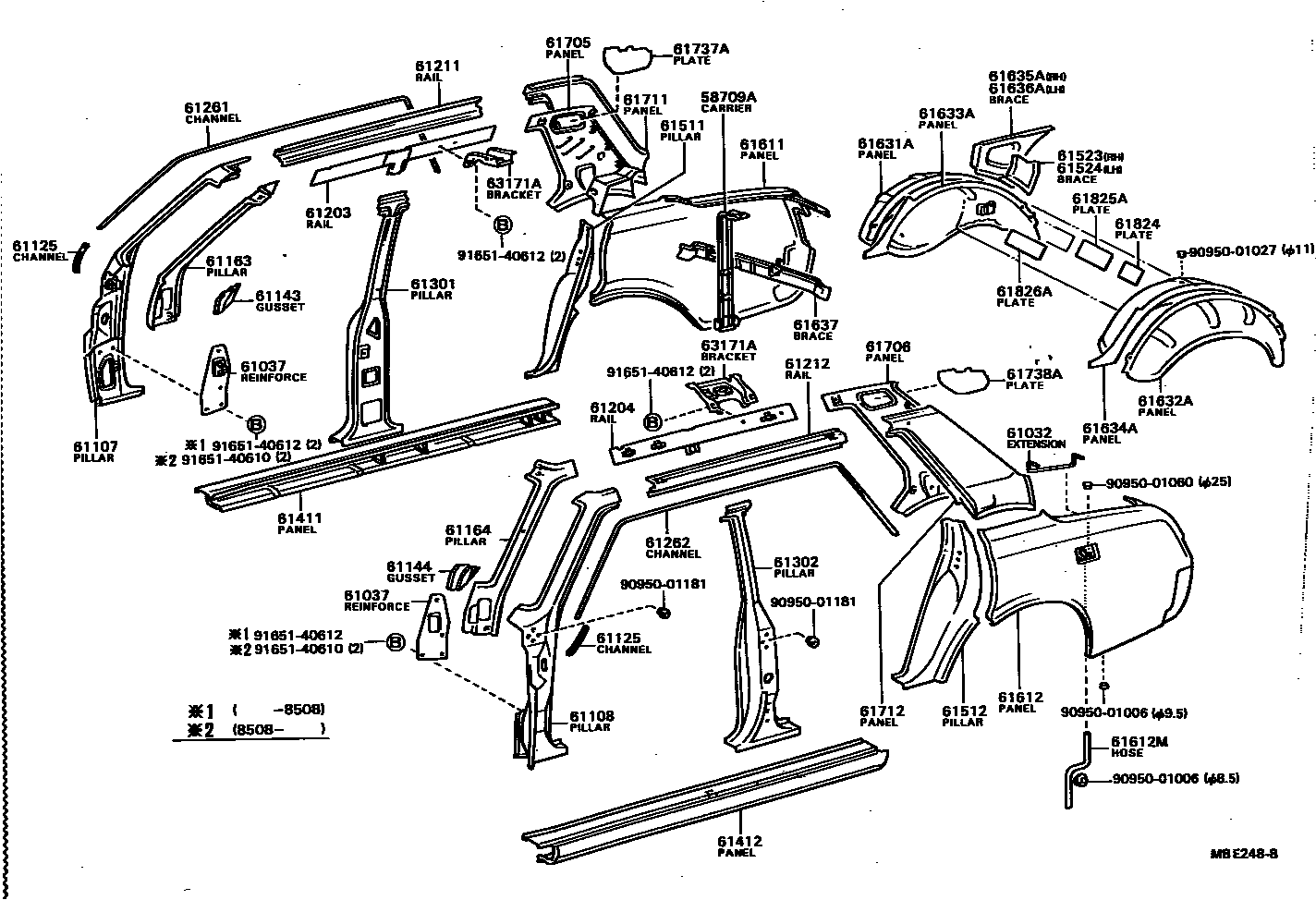

SIDE MEMBER
61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH
61037REINFORCE SUB-ASSY, FRONT BODY PILLAR, CENTER
61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH
61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH
61125CHANNEL, ROOF DRIP, LOWER
61143GUSSET, FRONT PILLAR DOOR OPENING, UPPER RH
61144GUSSET, FRONT PILLAR DOOR OPENING, UPPER LH
61163PILLAR, FRONT BODY, INNER RH
61164PILLAR, FRONT BODY, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61511PILLAR, QUARTER LOCK, RH
sub61501-40010
61512PILLAR, QUARTER LOCK, LH
sub61502-40010
61523BRACE, QUARTER LOCK PILLAR TO ROCKER PANEL, RH
61524BRACE, QUARTER LOCK PILLAR TO ROCKER PANEL, LH
sub61522-40010
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61612MHOSE(FOR FUEL INLET BOX)
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61635ABRACE, QUARTER WHEEL HOUSE, RH
sub61635-91405
61636ABRACE, QUARTER WHEEL HOUSE, LH
61637BRACE, QUARTER WHEEL HOUSE, RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61737APLATE, ROOF SIDE INNER RAIN PROOF, RH
61738APLATE, ROOF SIDE INNER RAIN PROOF, LH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
63171ABRACKET, ROOM LAMP
RH
LH
9095001006
main90950-01006
9095001027
main90950-01027
9095001060
main90950-01060
9095001181
main90950-01181
9165140610
main91651-40610
9165140612
main91651-40612
50 parts on this diagram · 1 diagram in section
