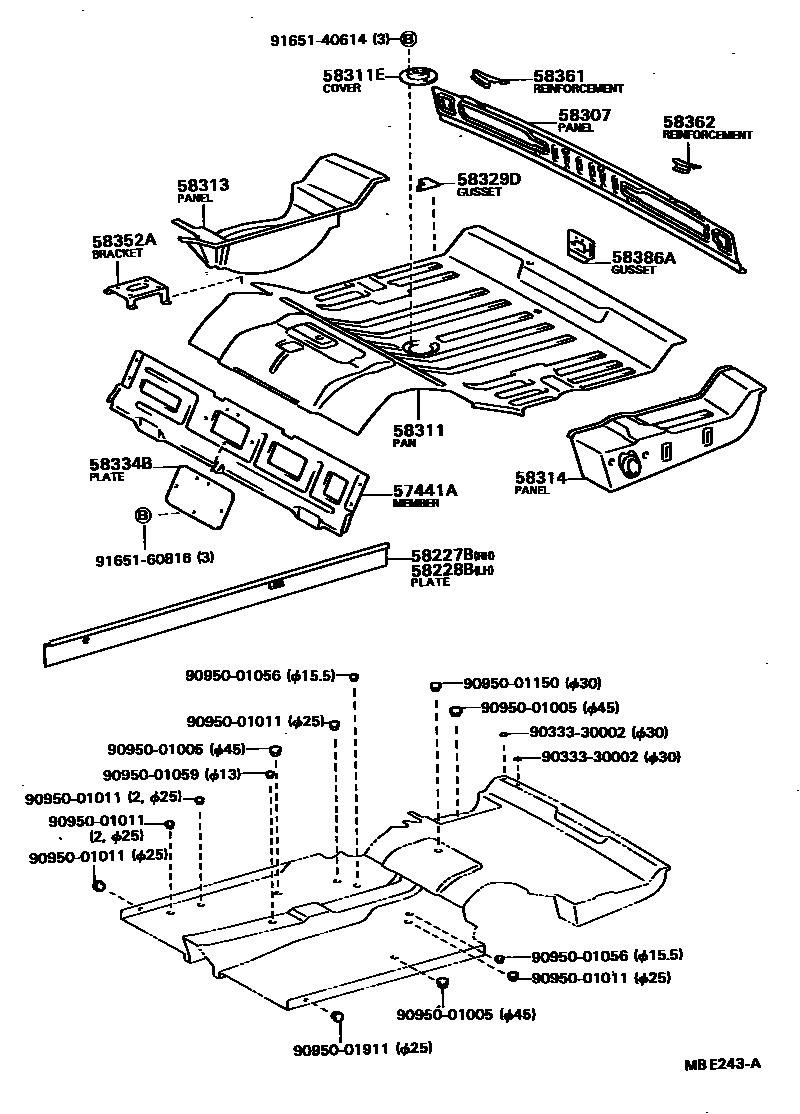

FLOOR PAN & LOWER BACK PANEL

57441AMEMBER, REAR FLOOR CENTER, NO.1

main57441-91401iVG40198210-198709

sub57441-40010

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-91490iVG40198210-198709

58228BPLATE, FRONT FLOOR PANEL SIDE, LH

main58228-91490iVG40198210-198709

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-91410iVG40198210-198709

58311PAN, REAR FLOOR

main58301-91490iVG40198210-198709

sub58301-91491

sub90950-01417

58311ECOVER, REAR FLOOR SERVICE HOLE

main77029-91401iVG40198210-198709

58313PANEL, REAR FLOOR SIDE, RH

main58305-91402iVG40198210-198709

58314PANEL, REAR FLOOR SIDE, LH

main58303-91401iVG40198210-198709

58329DGUSSET, SPARE WHEEL HOUSING CORNER

main58329-91401iVG40198210-198709

58334BPLATE, REAR FLOOR CROSSMEMBER, CENTER RH

main58334-91401iVG40198210-198709

58352ABRACKET, REAR FLOOR STAY

main58352-91403iVG40198210-198709

58361REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, RH

main58375-91404iVG40198210-198709

58362REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, LH

main58376-91402iVG40198210-198709

58386AGUSSET, LOWER BACK PANEL, NO.2

main58386-91402iVG40198210-198709

9033330002

main90333-30002

9095001005

main90950-01005

9095001011

main90950-01011

9095001056

main90950-01056

9095001059

main90950-01059

9095001150

main90950-01150

9095001911

main90950-01911

9165140614

main91651-40614

9165160816

main91651-60816

23 parts on this diagram · 1 diagram in section
