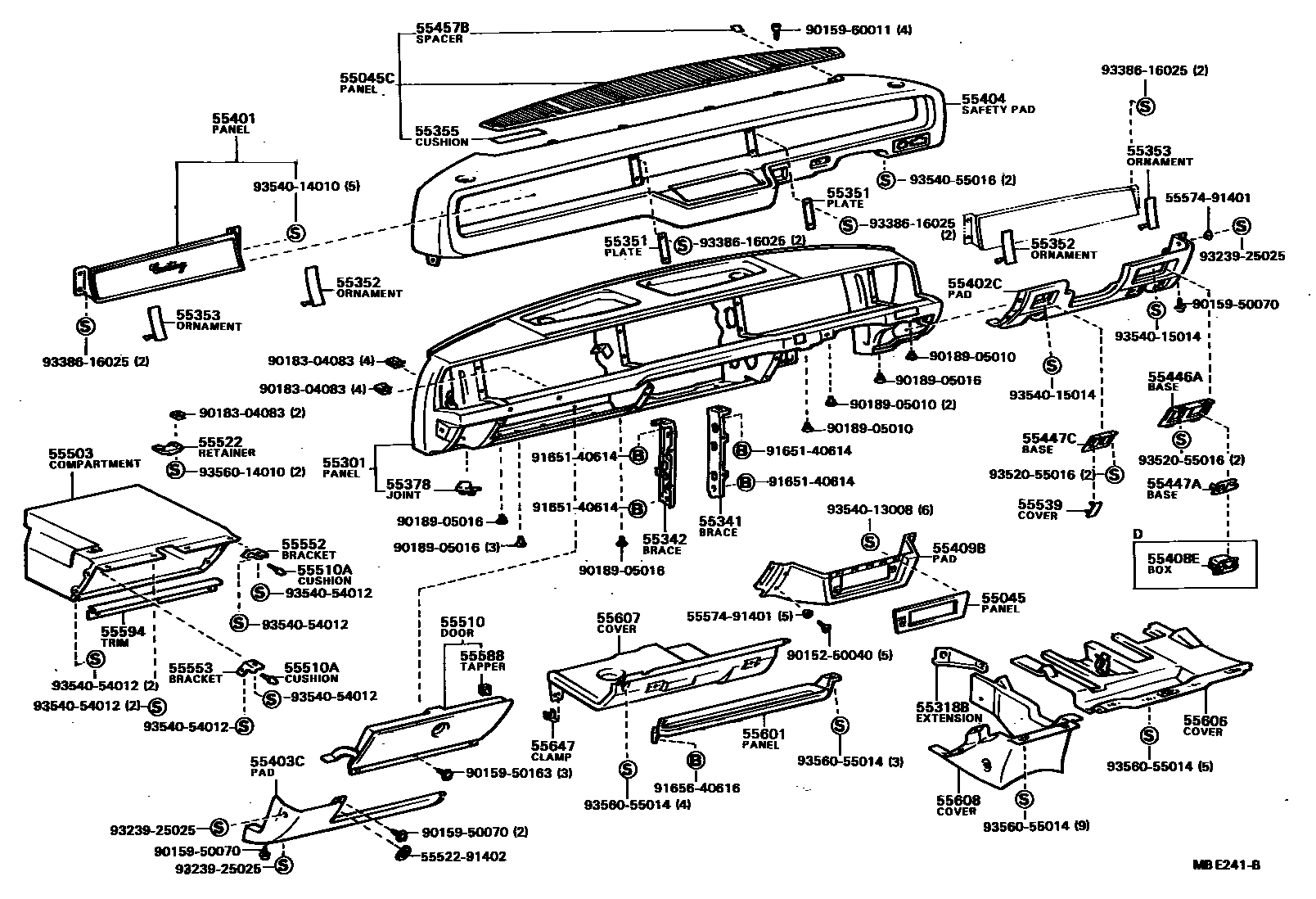

INSTRUMENT PANEL & GLOVE COMPARTMENT
55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045CPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
55301PANEL SUB-ASSY, INSTRUMENT
55318BEXTENSION, INSTRUMENT PANEL
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55351PLATE, INSTRUMENT PANEL CENTER LOUVER
55352ORNAMENT, VENTILATOR LOUVER, CENTER
55353ORNAMENT, VENTILATOR LOUVER, SIDE
55355CUSHION, INSTRUMENT PANEL, NO.1
55378JOINT, INSTRUMENT PANEL REINFORCEMENT
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
55408EBOX SUB-ASSY, INSTRUMENT PANEL COIN
55409BPAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
55446ABASE, SWITCH HOLE, NO.1
55447ABASE, LPG SWITCH HOLE
55447CBASE, SWITCH HOLE, NO.2
55457BSPACER, INSTRUMENT PANEL SAFETY PAD
55503COMPARTMENT SUB-ASSY, GLOVE
55510DOOR ASSY, GLOVE COMPARTMENT
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55522RETAINER, GLOVE COMPARTMENT MALE
55539COVER, SPARE SWITCH HOLE
BLACK,BLACK
55552BRACKET, GLOVE COMPARTMENT DOOR BUMPER, RH
55553BRACKET, GLOVE COMPARTMENT DOOR BUMPER, LH
55588TAPPER, GLOVE BOX LAMP SWITCH
55594TRIM, GLOVE COMPARTMENT, LOWER
55601PANEL SUB-ASSY, UNDER TRAY, OUTER
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
55608COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
55647CLAMP, INSTRUMENT PANEL UNDER COVER
5552291402RETAINER, GLOVE COMPARTMENT MALE
main55522-91402
5557491401SHAFT, GLOVE COMPARTMENT DOOR HINGE
9015250040
9015950070
9015950163
9015960011
9018304083
9018905010
9018905016
9165140614
9165640616
9323925025
9338616025
9352055016
9354013008
9354014010
9354015014
9354054012
9354055016
9356014010
9356055014
56 parts on this diagram · 1 diagram in section
