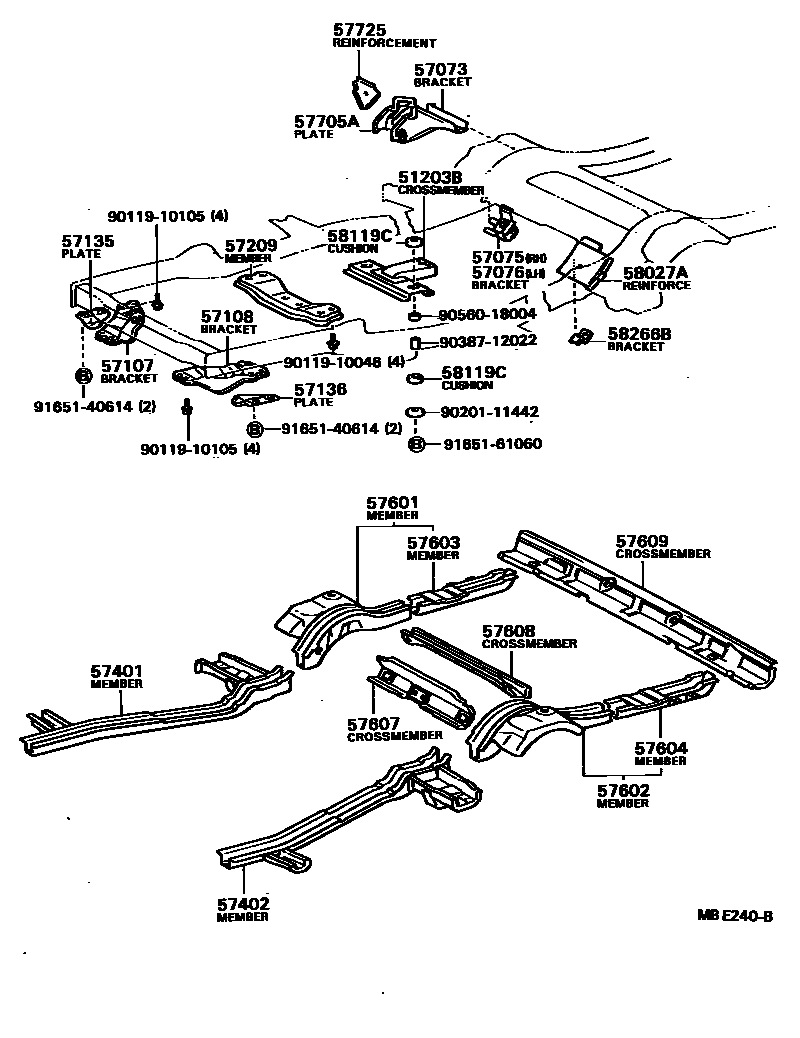

FLOOR SIDE MEMBER
51203BCROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT
57073BRACKET SUB-ASSY, LATERAL ROD
sub57073-91402
57075BRACKET SUB-ASSY, UPPER CONTROL LINK, RH
sub57075-40010
57076BRACKET SUB-ASSY, UPPER CONTROL LINK, LH
sub57076-40010
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57135PLATE, STRUT BAR BRACKET, UPPER RH
57136PLATE, STRUT BAR BRACKET, UPPER LH
57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
sub57605-40010
57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57609CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.3
57705APLATE SUB-ASSY, LATERAL ROD BRACKET
57725REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
sub57725-91402
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58119CCUSHION, FRONT FLOOR
58266BBRACKET, FUEL TUBE CLAMP
9011910046
main90119-10046
9011910105
main90119-10105
9020111442
main90201-11442
9038712022
main90387-12022
9056018004
main90560-18004
9165140614
main91651-40614
9165161060
main91651-61060
30 parts on this diagram · 1 diagram in section
