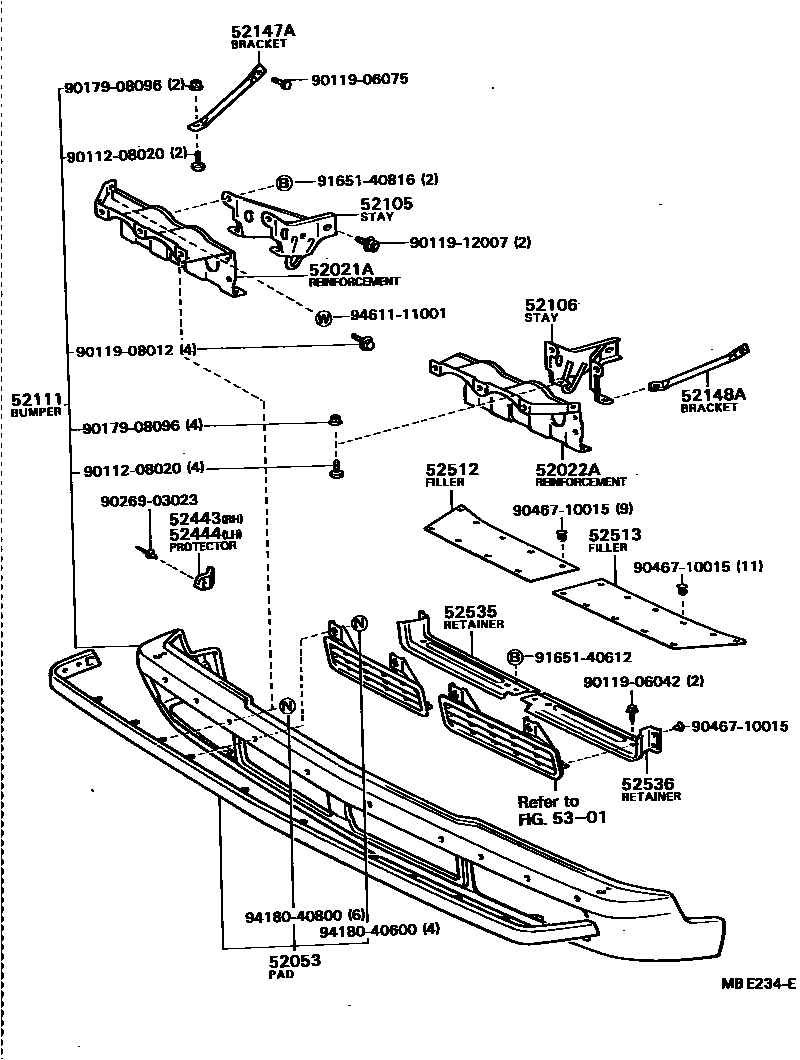

FRONT BUMPER & BUMPER STAY
52021AREINFORCEMENT SUB-ASSY, FRONT BUMPER, RH
52022AREINFORCEMENT SUB-ASSY, FRONT BUMPER, LH
52053PAD SUB-ASSY, FRONT BUMPER
52105STAY SUB-ASSY, FRONT BUMPER, RH
52106STAY SUB-ASSY, FRONT BUMPER, LH
52147ABRACKET, FRONT BUMPER STAY, RH
52148ABRACKET, FRONT BUMPER STAY, LH
52443PROTECTOR, FRONT BUMPER, RH
52444PROTECTOR, FRONT BUMPER, LH
52512FILLER, FRONT BUMPER, RH
52513FILLER, FRONT BUMPER, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
5301
9011208020
main90112-08020
9011906042
main90119-06042
9011906075
main90119-06075
9011908012
main90119-08012
9011912007
main90119-12007
9017908096
main90179-08096
9026903023
main90269-03023
9046710015
main90467-10015
9165140612
main91651-40612
9165140816
main91651-40816
9418040600
main94180-40600
9418040800
main94180-40800
9461111001
main94611-11001
28 parts on this diagram · 2 diagrams in section
