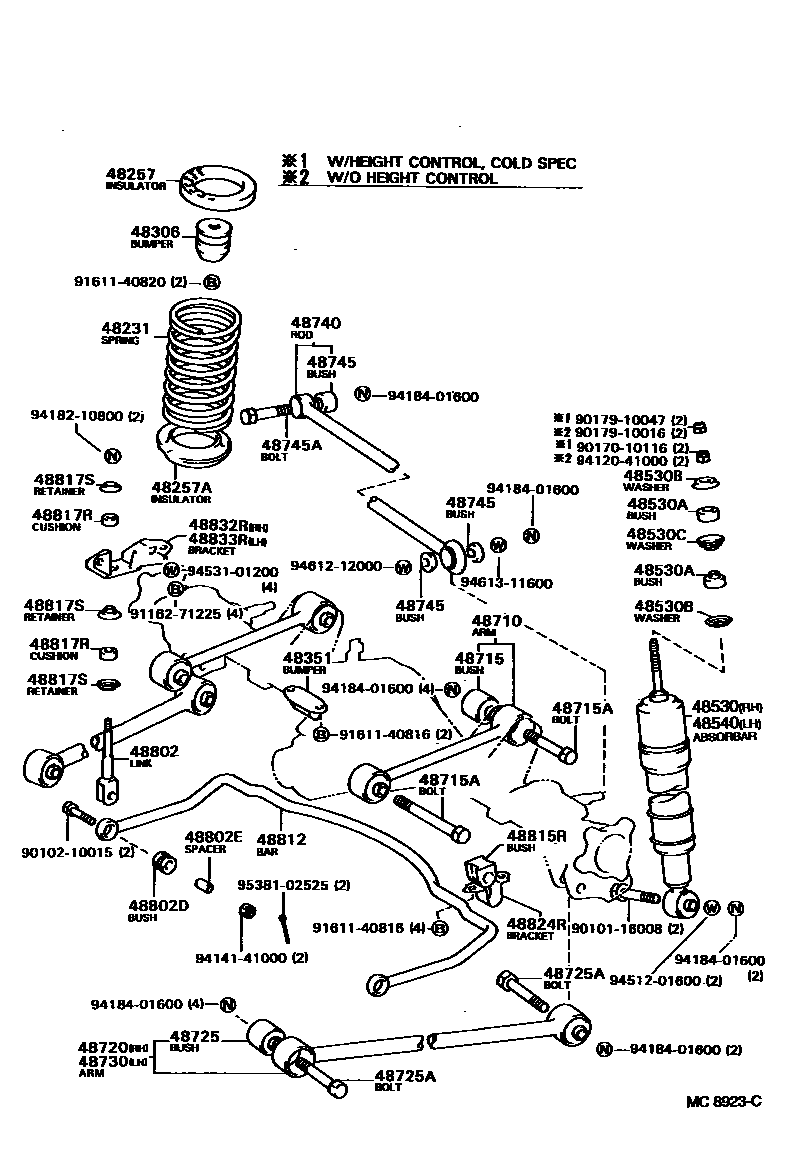

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
RH,W/HEIGHT CONTROL
LH,W/HEIGHT CONTROL
RH,W/O HEIGHT CONTROL
LH,W/O HEIGHT CONTROL
48257INSULATOR, REAR COIL SPRING
48257AINSULATOR, REAR COIL SPRING, LOWER
48306BUMPER SUB-ASSY, REAR SPRING
48351BUMPER, DIFFERENTIAL CARRIER
48530ABSORBER ASSY, SHOCK, REAR RH
COLD SPEC,W/HEIGHT CONTROL
W/HEIGHT CONTROL
W/HEIGHT CONTROL
W/O HEIGHT CONTROL
48530ABUSH(FOR REAR SHOCK ABSORBER)
ABSORBER X BODY(UPR)
ABSORBER X BODY(LWR)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
COLD SPEC,W/HEIGHT CONTROL
W/HEIGHTONTROL
W/HEIGHT CONTROL
W/O HEIGHT CONTROL
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
BODY X CONTROL ARM
AXLE HOUSING X CONTROL ARM
48725ABOLT(FOR LOWER CONTROL ARM)
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
BODY SIDE
L=15, HOUSING SIDE
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48802LINK SUB-ASSY, STABILIZER
sub48802-40020
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
T=1.6
T=1.0
48824RBRACKET, STABILIZER(FOR REAR)
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
9010116008
main90101-16008
9010210015
main90102-10015
9017010116
main90170-10116
9017910016
main90179-10016
9017910047
main90179-10047
9116271225
main91162-71225
9161140816
main91611-40816
9161140820
main91611-40820
9412041000
main94120-41000
9414141000
main94141-41000
9418210800
main94182-10800
9418401600
main94184-01600
9451201600
main94512-01600
9453101200
main94531-01200
9461212000
main94612-12000
9461311600
main94613-11600
9538102525
main95381-02525
47 parts on this diagram · 1 diagram in section
