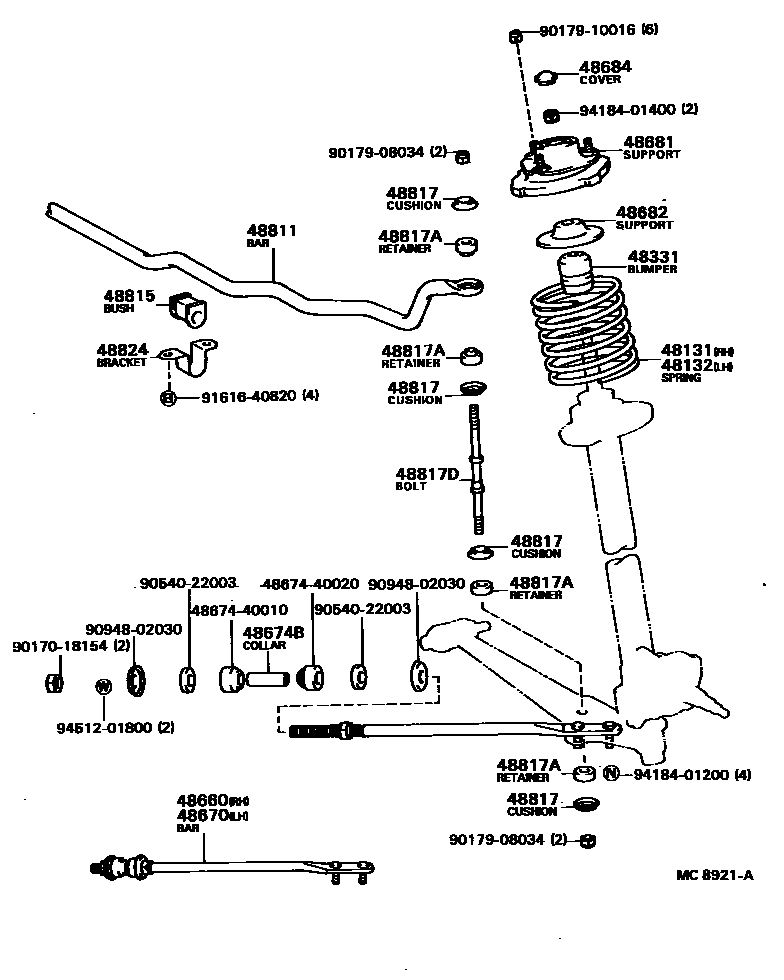

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-40030iVG40198210-198709

48132SPRING, FRONT COIL, LH

main48131-40040iVG40198210-198709

sub48131-40031

48331BUMPER, FRONT SPRING, NO.1

main48331-40020iVG40198210-198709

48660BAR ASSY, STRUT, RH

main48660-49015iVG40198210-198709

sub48660-40010

48670BAR ASSY, STRUT, LH

main48660-49015iVG40198210-198709

sub48660-40010

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18004iVG40198210-198709

48681SUPPORT, FRONT SUSPENSION, NO.1

main48681-40040iVG40198210-198709

48682SUPPORT, FRONT SUSPENSION, NO.2

main48682-40020iVG40198210-198709

48684COVER, BEARING DUST

main48684-40020iVG40198210-198709

48811BAR, STABILIZER, FRONT

main48811-40040iVG40198210-198709

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-40020iVG40198210-198709

48817CUSHION, FRONT STABILIZER

main48817-30020iVG40198210-198709

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iVG40198210-198709

48817DBOLT(FOR FRONT STABILIZER)

main48819-30020iVG40198210-198709

48824BRACKET, STABILIZER, FRONT

main48824-30050iVG40198308-198709

main48824-40020iVG40198210-198308

sub48824-30050

4867440010CUSHION, STRUT BAR

main48674-40010

4867440020CUSHION, STRUT BAR

main48674-40020

9017018154

main90170-18154

9017908034

main90179-08034

9017910016

main90179-10016

9054022003

main90540-22003

9094802030

main90948-02030

9161640820

main91616-40820

9418401200

main94184-01200

9418401400

main94184-01400

9451201800

main94512-01800

26 parts on this diagram · 2 diagrams in section
