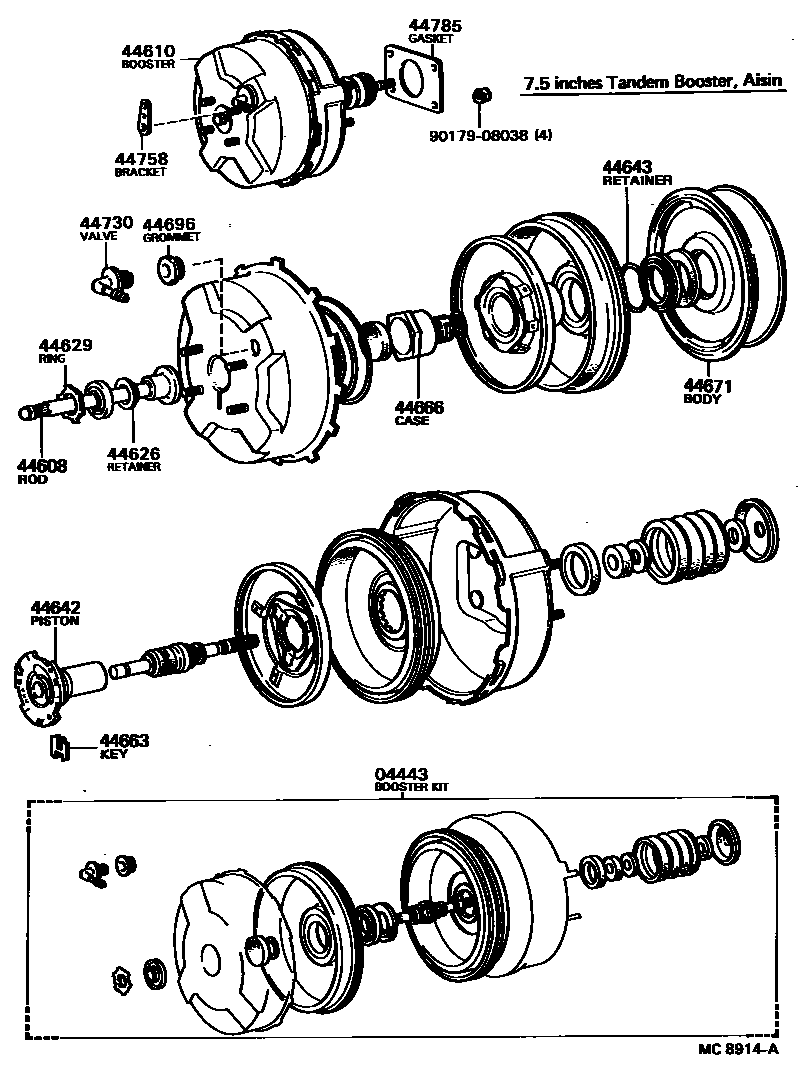

BRAKE BOOSTER & VACUUM TUBE
04443BOOSTER KIT, BRAKE
44608PUSH ROD SUB-ASSY, BOOSTER
44610BOOSTER ASSY, BRAKE
44626RETAINER, BOOSTER ROD CUP
44629RING, CIRCULAR INTERNAL
44642PISTON, BRAKE BOOSTER
44643RETAINER, DIAPHRAGM
44663KEY, VALVE STOPPER
44666CASE, REACTION DISC
44671BODY SUB-ASSY, NO.3
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44758BRACKET, VACUUM CHECK VALVE
44785GASKET, BRAKE BOOSTER
9017908038
main90179-08038
15 parts on this diagram · 2 diagrams in section
