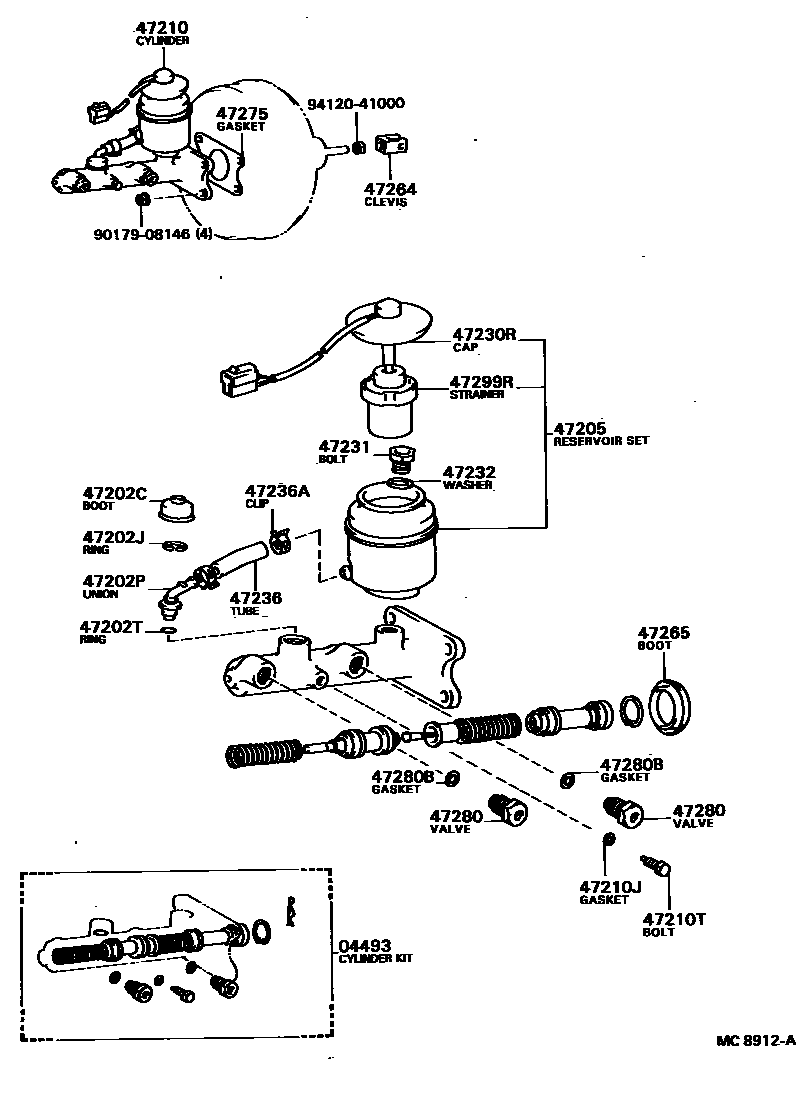

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-40030iVG40198210-198709

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iVG40198210-198709

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iVG40198210-198709

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iVG40198210-198709

sub90407-10004

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iVG40198210-198709

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-40030iVG40198210-198709

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-40050iVG40198210-198709

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iVG40198210-198709

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iVG40198210-198709

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-12011iVG40198210-198709

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iVG40198210-198709

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iVG40198210-198709

47236TUBE, RESERVOIR BRAKE

main47234-14010iVG40198210-198709

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iVG40198210-198709

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iVG40198210-198709

47265BOOT, MASTER CYLINDER

main47265-35030iVG40198210-198709

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iVG40198210-198709

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iVG40198210-198709

sub47280-14010

47280BGASKET(FOR BRAKE MASTER CYLINDER OUTLET VALVE)

main90430-09253iVG40198210-198709

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iVG40198210-198709

9017908146

main90179-08146

9412041000

main94120-41000

22 parts on this diagram · 1 diagram in section
