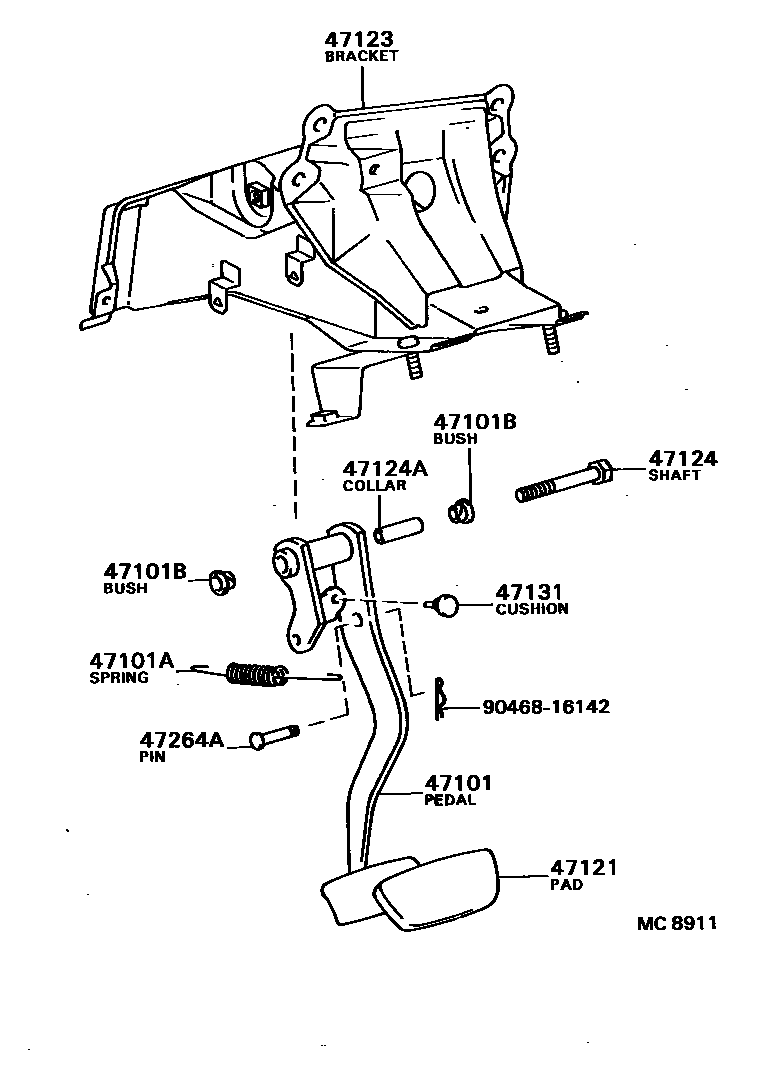

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-40040iVG40198210-198709

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-12484iVG40198210-198709

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iVG40198210-198709

47121PAD, BRAKE PEDAL

main47121-30050iVG40198210-198709

47123BRACKET, BRAKE PEDAL

main55106-91402iVG40198210-198709

47124SHAFT, BRAKE PEDAL

main90101-10480iVG40198210-198709

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10128iVG40198210-198709

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iVG40198210-198709

47264APIN(FOR PUSH ROD)

main90249-10064iVG40198210-198709

9046816142

main90468-16142

10 parts on this diagram · 1 diagram in section
