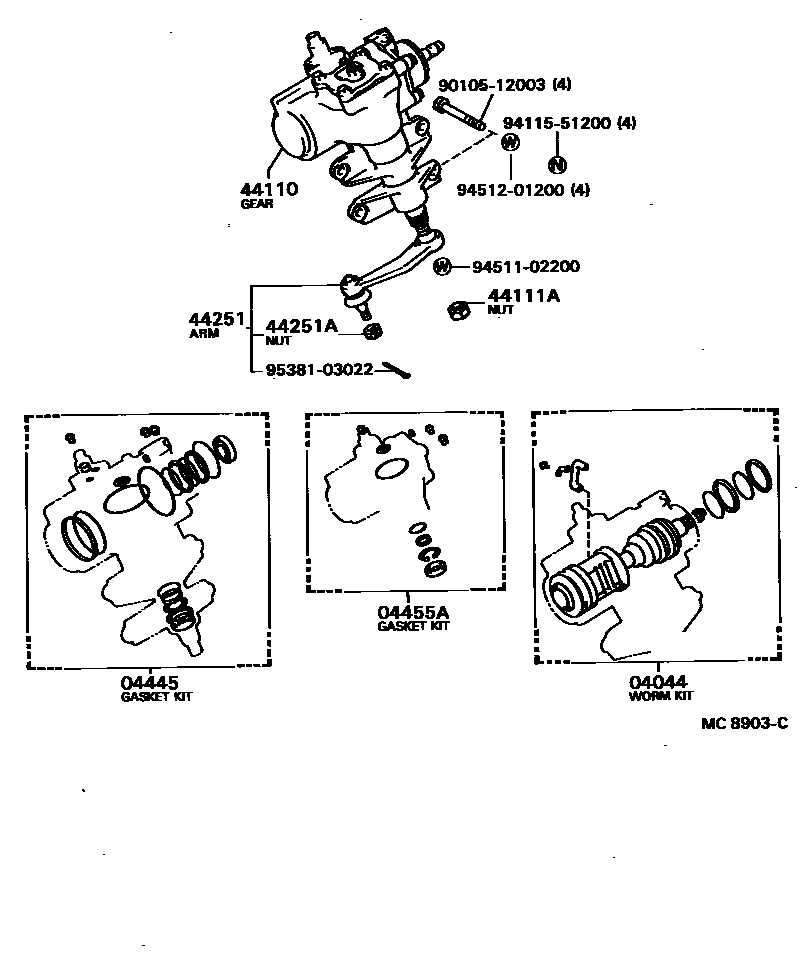

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04044WARM KIT, POWER STEERING

main04044-40010iVG40198210-198709

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-40020iVG40198210-198709

04455AGASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

main04455-40010iVG40198210-198709

44110GEAR ASSY, POWER STEERING

main44110-40030iVG40198210-198709

44111SHAFT, CROSS

main44111-40030iVG40198210-198709

44111ANUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

main90170-22058iVG40198210-198709

44251ARM, PITMAN

main45401-49015iVG40198210-198709

44251ANUT, CASTLE(FOR PITMAN ARM)

main90171-14042iVG40198210-198709

9010512003

main90105-12003

9411551200

main94115-51200

9451102200

main94511-02200

9451201200

main94512-01200

9538103022

main95381-03022

13 parts on this diagram · 3 diagrams in section
