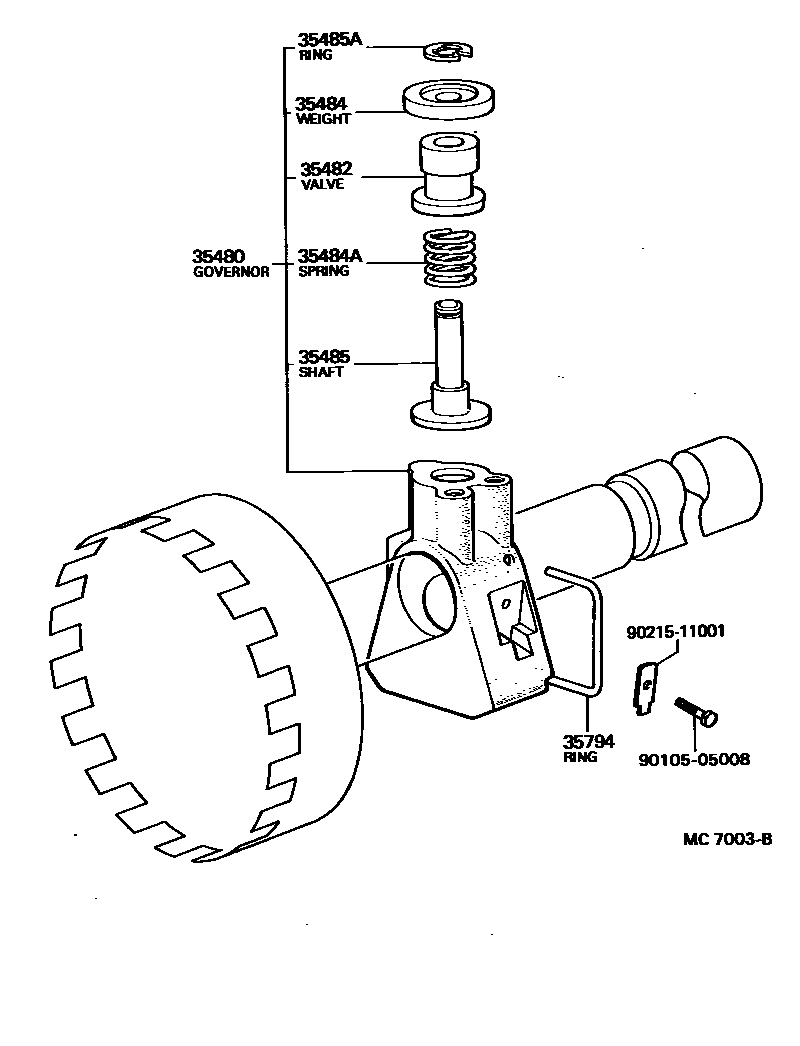

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-40010iVG40198210-198709

35482VALVE, GOVERNOR

main35482-40010iVG40198210-198709

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iVG40198210-198709

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iVG40198210-198709

35485SHAFT, GOVERNOR VALVE

main35485-22010iVG40198210-198709

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iVG40198210-198709

35794RING, GOVERNOR RETAINING

main35794-22010iVG40198210-198709

9010505008

main90105-05008

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
