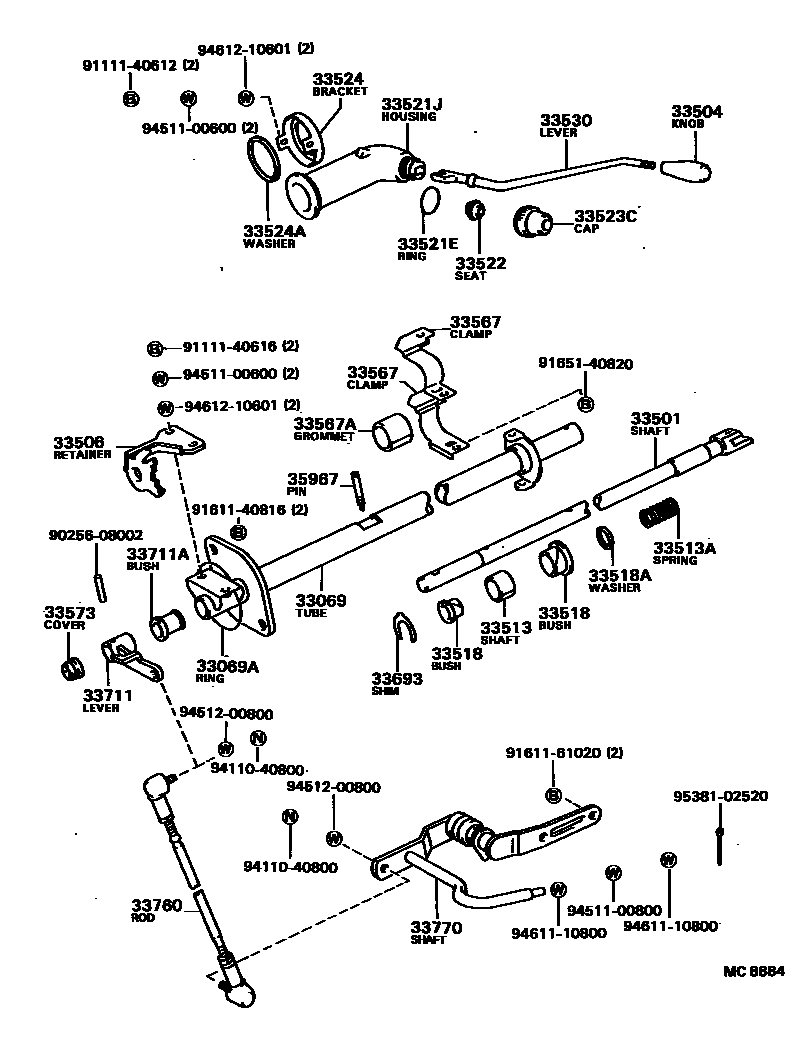

CONTROL SHAFT & CROSSSHAFT
33069TUBE SUB-ASSY, CONTROL SHAFT(FOR COLUMN SHIFT)
33069ARING, O(FOR CONTROL SHAFT TUBE)
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33518BUSH, UPPER CONTROL SHAFT PIECE
UPR
LWR
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33521ERING, O (FOR SHIFT LEVER HOUSING)
33521JHOUSING, SHIFT LEVER (FOR COLUMN SHIFT)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523CCAP, SHIFT LEVER (FOR COLUMN SHIFT)
33524BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR COLUMN SHIFT)
33524AWASHER, PLATE (FOR CONTROL LEVER HOUSING)
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33567CLAMP, CONTROL SHAFT TUBE
UPR
LWR
33567AGROMMET (FOR CONTROL SHAFT TUBE)
33573COVER, CONTROL SHAFT DUST, LOWER
33693SHIM, SHIFT LEVER ADJUSTING (FOR COLUMN SHIFT)
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33711ABUSH (FOR CONTROL SHAFT LEVER)
33760ROD ASSY, CONNECTING, NO.1
sub33710-26H94
33770SHAFT ASSY, CROSS (FOR COLUMN SHIFT)
35967PIN, INDICATOR SWITCH
9025608002
main90256-08002
9111140612
main91111-40612
9111140616
main91111-40616
9161140816
main91611-40816
9161161020
main91611-61020
9165140820
main91651-40820
9411040800
main94110-40800
9451100600
main94511-00600
9451100800
main94511-00800
9451200800
main94512-00800
9461110800
main94611-10800
9461210601
main94612-10601
9538102520
main95381-02520
38 parts on this diagram · 1 diagram in section
