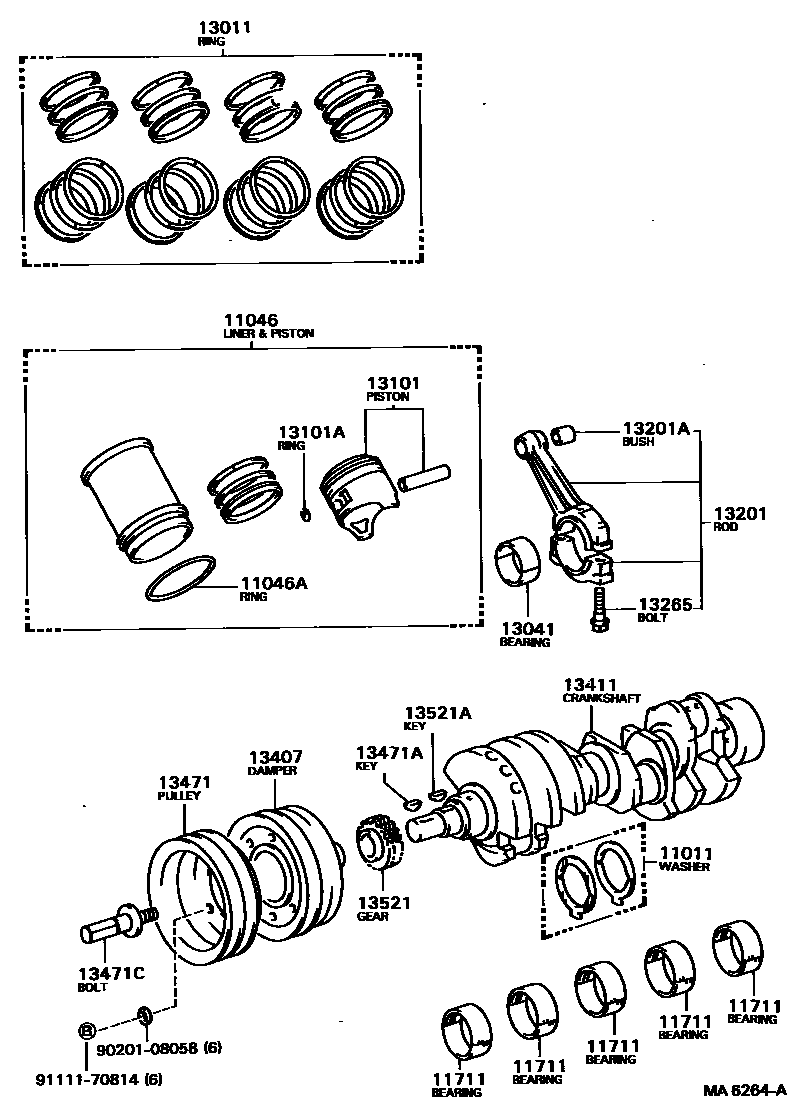

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11046CYLINDER LINER & PISTON SET
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"4",MARK 4
11046ARING, O(FOR CYLINDER LINER & PISTON SET)
11711BEARING, CRANKSHAFT
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"6",MARK 6
MARK"7",MARK 7
13011RING SET, PISTON
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
sub13201-52020
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13407DAMPER SUB-ASSY, CRANKSHAFT
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=20
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
9020108058
main90201-08058
9111170814
main91111-70814
20 parts on this diagram · 1 diagram in section
