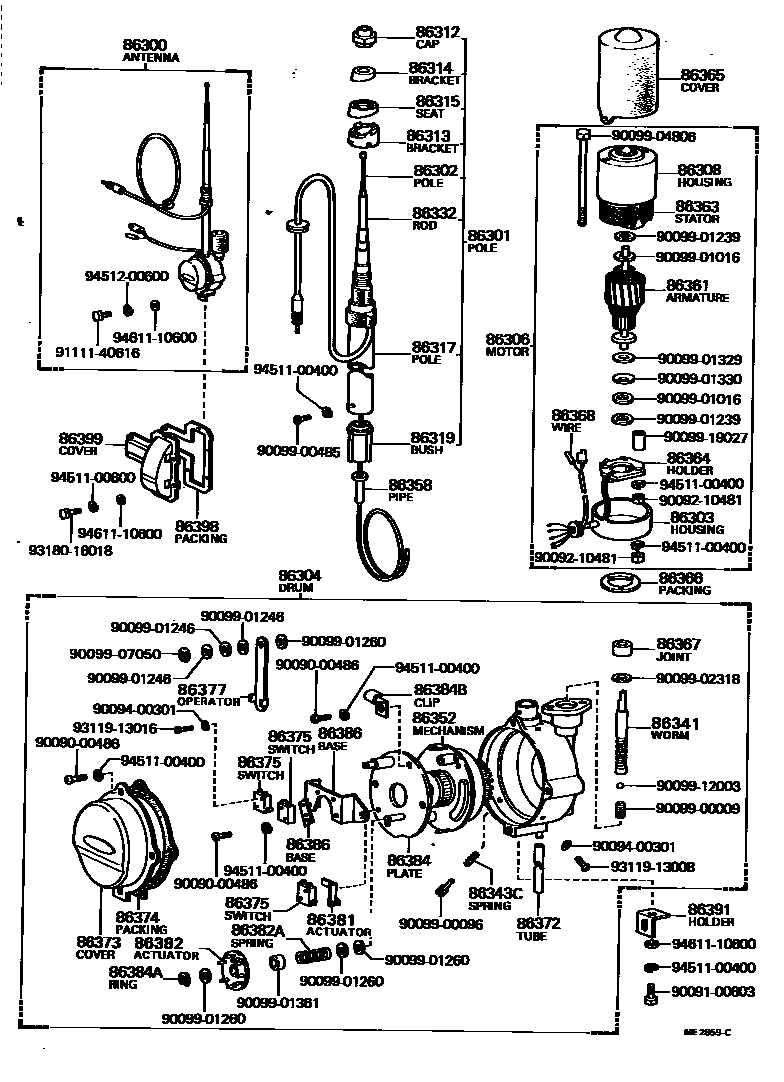

ANTENNA

86300ANTENNA ASSY, W/HOLDER

main86300-40021i197303-197405

main86300-49015i196711-197003

main86300-49016i197003-197302

86301POLE SUB-ASSY, ANTENNA

main86301-40010i196711-197302

main86301-40021i197303-197405

86302POLE A AND CABLE SUB-ASSY, ANTENNA

main86302-40010i196711-197302

86303HOUSING A SUB-ASSY, ANTENNA MOTOR

main86303-30032i196711-197302

86304DRUM SUB-ASSY, ANTENNA

main86304-40011i196711-197003

main86304-40012i197003-197302

86306MOTOR SUB-ASSY, ANTENNA

main86306-40010i196711-197003

main86306-40011i197003-197302

main86306-40021i197303-197405

86308HOUSING B SUB-ASSY, ANTENNA MOTOR

main85785-40010i196711-197302

86312CAP, ANTENNA POLE

main86312-40010i196711-197302

86313BRACKET, ANTENNA POLE, A

main86313-40010i196711-197302

86314BRACKET, ANTENNA POLE, B

main86314-40010i196711-197302

86315SEAT, ANTENNA POLE

main86315-40010i196711-197302

86317POLE, ANTENNA

main86317-40010i196711-197302

86319BUSH, ANTENNA POLE

main86319-30031i196711-197302

86332ROD, ANTENNA

main86332-40010i196711-197302

86341WORM, ANTENNA DRUM

main86341-30031i196711-197003

main86341-40010i197003-197302

86343CSPRING, COIL (FOR ANTENNA HOUSING BUSH)

main90099-17017i196711-196902

86352DRIVE, MECHANISM, MOTOR ANTENNA

main86352-30034i196711-197003

main86352-30072i197303-197405

main86352-40010i197003-197302

86358PIPE, CABLE GUIDE, ANTENNA

main86358-30031i196711-197302

86361ARMATURE, ANTENNA MOTOR

main86361-40010i196711-197003

main86361-40011i197003-197302

86363STATOR, ANTENNA MOTOR

main86363-40010i196711-197003

main86363-40011i197003-197302

86364HOLDER, ANTENNA MOTOR BRUSH

main86364-30031i196711-197302

86365COVER, ANTENNA MOTOR

main86365-40010i196711-197302

86366PACKING, ANTENNA HOUSING

main86366-30030i196711-197302

86367JOINT, ANTENNA MOTOR ARMATURE AND WORM

main85756-40010i197003-197302

main86367-30030i196711-197003

86368WIRE, LEAD, MOTOR ANTENNA

main86368-40010i196711-197302

86372TUBE, ANTENNA VINYL

main86372-30030i196711-197302

86373COVER, MOTOR ANTENNA MECHANISM

main86373-40010i196711-197302

86374PACKING, MOTOR ANTENNA DRIVE MECHANISM COVER

main86374-30070i196711-197302

86375SWITCH, MOTOR ANTENNA OPERATOR

main86375-30031×3i196711-197302

86377OPERATOR, ANTENNA SWITCH

main86377-40010i196711-197302

86381ACTUATOR, ANTENNA SWITCH

main86381-30040i196711-197302

86382ACTUATOR, ANTENNA WHEEL SWITCH

main86382-30040i196711-197302

86382ASPRING, ANTENNA WHEEL SWITCH ACTUATOR

main90099-17108i196711-197302

86384PLATE SUB-ASSY, ANTENNA BASE

main86384-40010i196711-197302

86384ARING, SNAP (FOR ANTENNA BASE PLATE)

main90099-07050×2i196711-197302

86384BCLIP, ANTENNA BASE PLATE CORD

main90099-35010i196711-197302

86386BASE, ANTENNA SWITCH

main86386-30040i196711-197302

SMALL

main86386-40010i196711-197302

LARGE

86391HOLDER, ANTENNA

main86391-40010i196711-197302

sub86391-22020

86398PACKING, MOTOR ANTENNA COVER

main86398-91401i196711-197405

86399COVER, MOTOR ANTENNA

main86399-91401i196711-197302

main86399-91402i197303-197405

9009000486

main90090-00486

9009100603

main90091-00603

9009210481

main90092-10481

9009400301

main90094-00301

9009900009

main90099-00009

9009900096

main90099-00096

9009900485

main90099-00485

9009901016

main90099-01016

9009901239

main90099-01239

9009901246

main90099-01246

9009901260

main90099-01260

9009901329

main90099-01329

9009901330

main90099-01330

9009901361

main90099-01361

9009902318

main90099-02318

9009904806

main90099-04806

9009907050

main90099-07050

9009912003

main90099-12003

9009919027

main90099-19027

9111140616

main91111-40616

9311913008

main93119-13008

9311913016

main93119-13016

9318016018

main93180-16018

9451100400

main94511-00400

9451100600

main94511-00600

9451200600

main94512-00600

9461110600

main94611-10600

67 parts on this diagram · 2 diagrams in section
