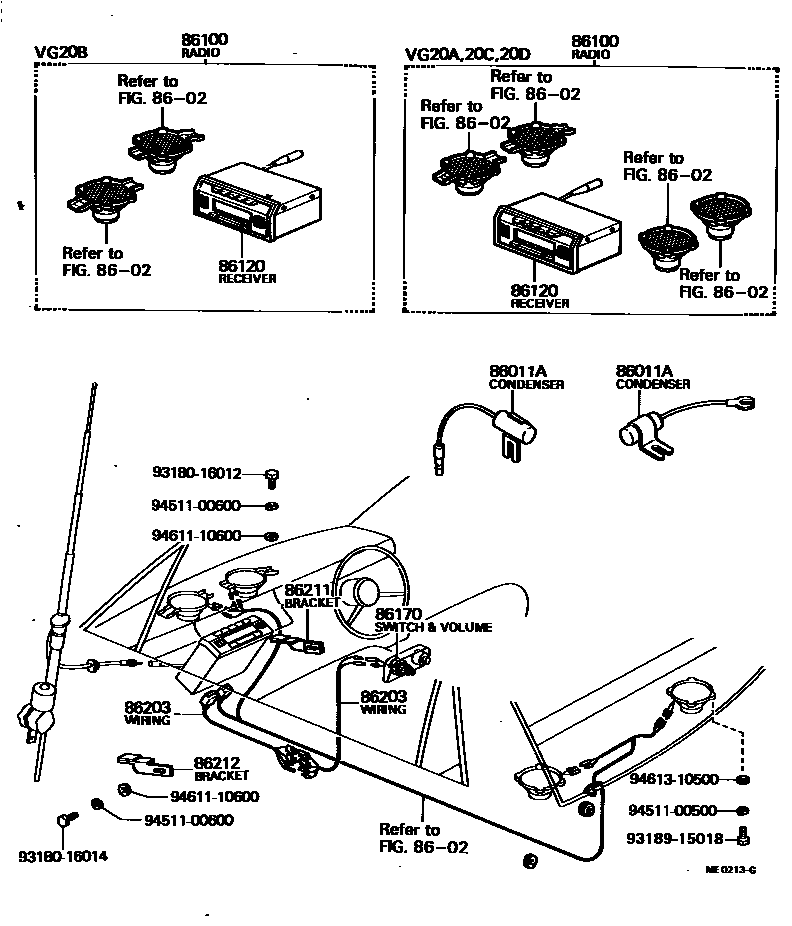

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011ACONDENSER, RADIO SETTING

main90980-04007×2iVG2#,30196711-197811

;U; CONNECTOR

main90980-04011iVG2#,3#196711-198209

PLUG CONNECTOR

main90980-04015iVG21197303-197505

IGNITION COIL TO ENGINE

sub90980-04033

main90980-04021iVG21,30197505-197811

IGNITION COIL TO ENGINE

8602

86100RADIO ASSY

main86100-40020iVG20..D196711-197302

AM/FM STEREO

main86100-40030iVG20..A,C196711-197302

AM/FM MONAURAL

main86100-40040iVG20..B196711-197302

AM MONAURAL

86120RECEIVER ASSY, RADIO

main86120-40020iVG20..A,C,D196711-197302

AM/FM STEREO

main86120-40030iVG20..A,C196711-197302

AM/FM MONAURAL

main86120-40040iVG20..B196711-197302

AM MONAURAL

main86120-40050iVG21197303-197405

AM/FM STEREO & CASSETTE STEREO

main86120-40051iVG21197405-197504

AM/FM STEREO & CASSETTE STEREO

main86120-40052iVG21,3#197504-198209

AM/FM STEREO & CASSETTE STEREO

main86120-40060iVG21..B,C197303-197405

AM/FM STEREO

main86120-40061iVG21,3#..C197405-198209

AM/FM STEREO

86170SWITCH AND VOLUME ASSY, RADIO

main84780-40020iVG20..B196711-197302

main86170-40010iVG21;VG20,3#..A,C,D196711-198209

AM/FM STEREO

main86170-40020iVG20..A,C196711-197302

AM/FM MONAURAL

86203WIRE, RADIO

main86203-40030iVG21;VG20,3#..A,C,D196711-198209

TUNER SIDE, AM/FM STEREO

main86203-40040iVG20..A,C196711-197302

TUNER SIDE, AM/FM MONAURAL

main86203-40050iVG20..B196711-197302

TUNER SIDE

main86203-40060iVG21;VG20,3#..A,C,D196711-198209

SWITCH SIDE, AM/FM STEREO

main86203-40070iVG20..A,C196711-197302

SWITCH SIDE, AM/FM MONAURAL

main86203-40080iVG20..B196711-197302

SWITCH SIDE

86211BRACKET, RADIO, NO.1

main86211-40010iVG2#,3#196711-198209

86212BRACKET, RADIO, NO.2

main86212-40010iVG2#,3#196711-198209

9318016012

main93180-16012

9318016014

main93180-16014

9318915018

main93189-15018

9451100500

main94511-00500

9451100600

main94511-00600

9461110600

main94611-10600

9461310500

main94613-10500

15 parts on this diagram · 3 diagrams in section
