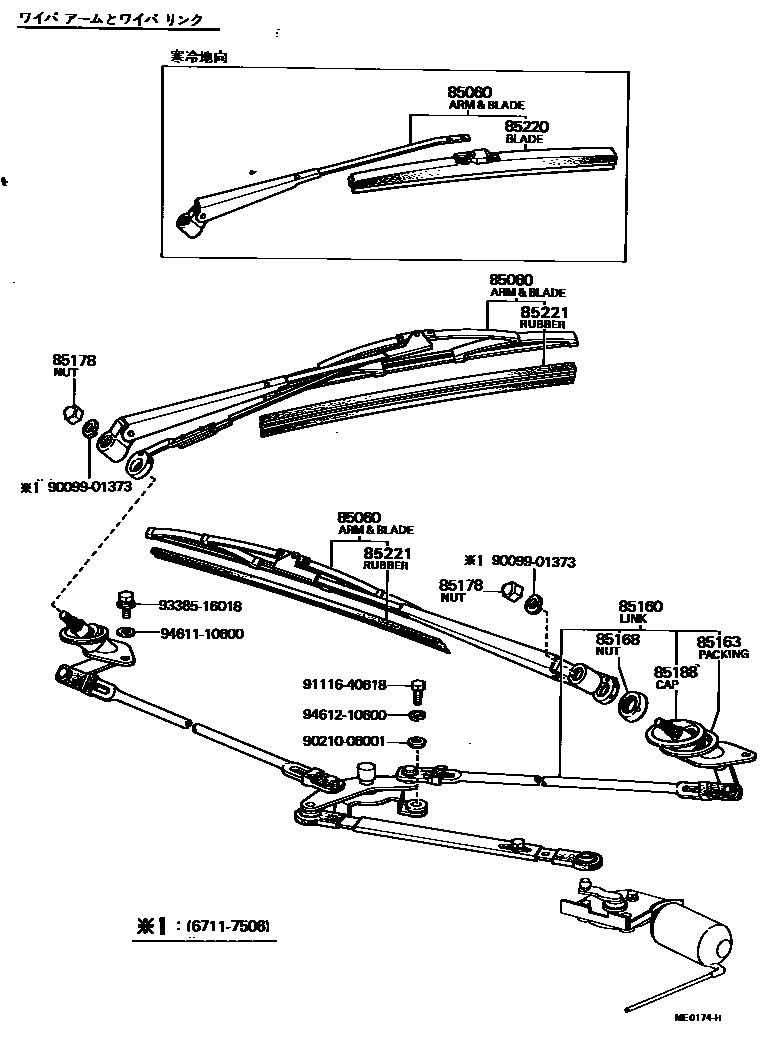

WINDSHIELD WIPER

0001 1 0002 1

85060ARM AND BLADE ASSY, WINDSHIELD WIPER

main85060-40021iVG20196711-196811

RH,MARK=A

main85060-40022iVG20196811-196902

RH,MARK=A

main85060-40023iVG20196902-196903

RH

main85060-40024iVG2#,3#196903-198209

RH

sub85060-40H90

main85060-40030iVG20196711-196811

RH,MARK=B

main85060-40031iVG20196811-196902

RH,MARK=B

main85060-40041iVG2#,3#197102-198209

RH,COLD SPEC

sub85060-40H91

main85070-40021iVG20196711-196811

LH,MARK=A

main85070-40022iVG20196811-196902

LH,MARK=A

main85070-40023iVG20196902-196903

LH

main85070-40024iVG2#,3#196903-198209

LH

sub85070-40H90

main85070-40030iVG20196711-196811

LH,MARK=B

main85070-40031iVG20196811-196902

LH,MARK=B

main85070-40041iVG2#,3#197102-198209

LH,COLD SPEC

sub85070-40H91

85160LINK ASSY, WINDSHIELD WIPER

main85160-40032iVG20196711-196902

main85160-40033iVG2#,3#196902-198209

85163PACKING, WINDSHIELD WIPER PIVOT

main85163-40021×2iVG2#,3#196711-198209

85168NUT, WINDSHIELD WIPER LINK PIVOT

main90099-05098×2iVG2#,3#196711-198209

85178NUT (FOR FRONT WIPER ARM SETTING)

main90099-05108×2iVG2#196902-197506

main90176-08012×2iVG21,3#197611-198209

main90999-99052×2iVG21197506-197611

sub90176-08005

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85181-40021iVG2#196711-197506

RH

main85182-40021iVG2#196711-197506

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-30063×2iVG20197102-197201

COLD SPEC

sub85220-20080

main85220-30090×2iVG2#,3#197201-198209

COLD SPEC

sub85220-30110

85221BLADE, WINDSHIELD WIPER

main85221-40021×2iVG20196711-196811

main85221-40022×2iVG2#,3#196811-197912

main85221-40030×2iVG35197912-198209

9009901373

main90099-01373

9021006001

main90210-06001

9111640618

main91116-40618

9338516018

main93385-16018

9461110600

main94611-10600

9461210600

main94612-10600

14 parts on this diagram · 2 diagrams in section
